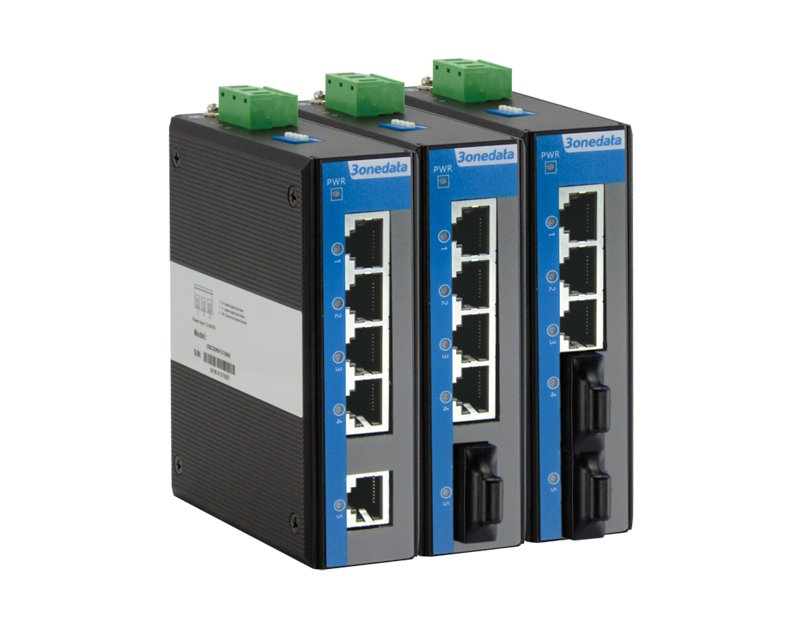

IES215-1F (SM,SC)
1*100Base-FX ( Single-mode, SC, 20KM) + 4*10/100Base-T(X) (RJ45), single power supply:12～48VDC
- Support 5 100M fiber/copper ports
- Support flow control, which can avoid packet loss caused by network congestion
- Support 12~48VDC or 100~240VAC/DC power supply input (optional)
- Support -40~75℃ wide operating temperature range
| IES215 | 5*10/100Base-T(X) (RJ45), single power supply:12～48VDC |
| IES215-1F (MM,SC) | 1*100Base-FX ( Multi-mode, SC, 2KM) + 4*10/100Base-T(X) (RJ45), single power supply:12～48VDC |
| IES215-1F (MM,ST) | 1*100Base-FX ( Multi-mode, ST, 2KM) + 4*10/100Base-T(X) (RJ45), single power supply:12～48VDC |
| IES215-1F (SM,SC) | 1*100Base-FX (Single-mode, SC, 20KM) +4*10/100Base-T(X) (RJ45), single power supply:12～48VDC |
| IES215-1F (SM,ST) | 1*100Base-FX (Single-mode, ST, 20KM) +4*10/100Base-T(X) (RJ45), single power supply:12～48VDC |
| IES215-2F (MM,SC) | 2*100Base-FX ( Multi-mode, SC, 2KM) + 3*10/100Base-T(X) (RJ45), single power supply:12～48VDC |
| IES215-2F (MM,ST) | 2*100Base-FX ( Multi-mode, ST, 2KM) + 3*10/100Base-T(X) (RJ45), single power supply:12～48VDC |
| IES215-2F (SM,SC) | 2*100Base-FX (Single-mode, SC, 20KM) + 3*10/100Base-T(X) (RJ45), single power supply:12～48VDC |
| IES215-2F (SM,ST) | 2*100Base-FX (Single-mode, ST, 20KM) + 3*10/100Base-T(X) (RJ45), single power supply:12～48VDC |
| Toplam Port Sayısı | : | 5 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100BaseT(X) | : | 4 |
| 100BaseFX SFP | : | 1 |
|
Standard &Protocol
|
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3x for Flow Control
|
| Interface |
Copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning Optical port: 100Base-FX, optional SC/ST/FC
|
|
LED Indicator |
Interface indicator, Power indicator
|
|
Switch Property |
Transmission mode: store and forward MAC address: 2K Packet buffer size: 1Mbit Backplane bandwidth: 1.6G Switch time delay: <10μs
|
|
Power Requirement |
DC products Voltage range: 12~48VDC. Connection mode: 3-pin 7.62mm pitch terminal blocks Connection protection: non-polarity
AC products Power supply range: 100~240VAC/DC. Connection mode: 3-pin 7.62mm pitch terminal blocks
|
|
Environmental Limit |
Operating temperature range: -40~75℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95%（no condensation）
|
|
Physical Characteristic |
Housing: IP40 protection, metal Installation: DIN-Rail mounting Dimension (W x H x D): 35mm×110mm×95mm Weight: ≤360g
|
|
Industrial Standard |
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3 Air discharge: ±8kV Contact discharge: ±6kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3 Power supply: ±2kV Ethernet port: ±1kV
IEC 61000-4-5 (Surge), Level 3 Power supply: common mode±2kV, differential mode±1kV Ethernet port: ±2kV
Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
|
|
Certification |
CE, FCC, RoHS, UL61010 |
