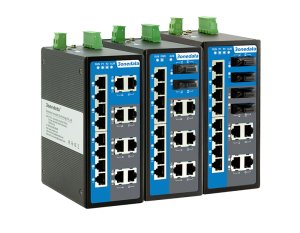

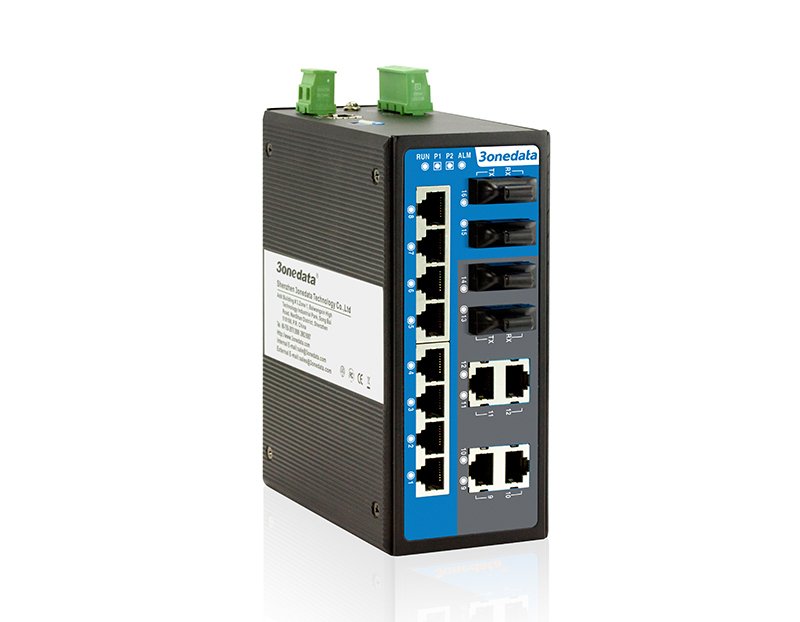

IES3016-4F (MM,ST)
4*100Base-FX ( Multi-mode, ST, 2KM) + 14*10/100Base-T(X) (RJ45), dual power supply:12～48VDC
- Support 8 100M copper ports, 8 100M fiber and copper ports optional
- Support dual power supply input, input voltage: 12~48VDC
- Support -40~75℃ wide operating temperature range
| IES3016 | 16*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES3016-2F (MM,SC) | 2*100Base-FX ( Multi-mode, SC, 2KM) + 14*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES3016-2F (MM,ST) | 2*100Base-FX ( Multi-mode, ST, 2KM) + 14*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES3016-2F (SM,SC) | 2*100Base-FX (Single-mode, SC, 20KM) + 14*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES3016-2F (SM,ST) | 2*100Base-FX (Single-mode, ST, 20KM) + 14*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES3016-4F (MM,SC) | 4*100Base-FX ( Multi-mode, SC, 2KM) + 12*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES3016-4F (MM,ST) | 4*100Base-FX ( Multi-mode, ST, 2KM) + 12*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES3016-4F (SM,SC) | 4*100Base-FX (Single-mode, SC, 20KM) + 12*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES3016-4F (SM,ST) | 4*100Base-FX (Single-mode, ST, 20KM) + 12*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES3016-6F (MM,SC) | 6*100Base-FX ( Multi-mode, SC, 2KM) + 10*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES3016-6F (MM,ST) | 6*100Base-FX ( Multi-mode, ST, 2KM) + 10*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES3016-6F (SM,SC) | 6*100Base-FX (Single-mode, SC, 20KM) + 10*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES3016-6F (SM,ST) | 6*100Base-FX (Single-mode, ST, 20KM) + 10*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES3016-8F (MM,SC) | 8*100Base-FX ( Multi-mode, SC, 2KM) + 8*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES3016-8F (MM,ST) | 8*100Base-FX ( Multi-mode, ST, 2KM) + 8*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES3016-8F (SM,SC) | 8*100Base-FX (Single-mode, SC, 20KM) + 8*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES3016-8F (SM,ST) | 8*100Base-FX (Single-mode, ST, 20KM) + 8*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| Toplam Port Sayısı | : | 16 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100BaseT(X) | : | 12 |
| 100BaseFX SFP | : | 4 |
|
Standard &Protocol
|
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3x for Flow Control
|
| Interface |
Copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning Fiber port: 100Base-FX, SC/ST/FC optional Alarm port: 2-pin 7.62mm pitch terminal blocks, support 1 relay alarm output, current carrying capacity 5A@30VDC or 10A@125VAC
|
|
LED Indicator |
Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator
|
|
Switch Property |
Transmission mode: store and forward MAC address: 8K Packet buffer size: 3Mbit Backplane bandwidth: 12.8G Switch time delay: < 10μs
|
|
Power Requirement |
12~48VDC, 4-pin 7.62mm pitch terminal blocks Dual power supply redundancy, reverse polarity protection, nonpolarity Support 4A overcurrent protection
|
|
Environmental Limit |
Operating temperature range: -40~75℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95%（no condensation）
|
|
Physical Characteristic |
Housing: IP40 protection, metal Installation: DIN-Rail mounting Dimension (W x H x D): 70mm×160mm×130mm
|
|
Industrial Standard |
IEC 61000-4-2 (ESD), Level 4 Air discharge: ±15kV Contact discharge: ±8kV IEC 61000-4-4 (EFT), Level 4 Power supply: ±4kV Ethernet interface: ±2kV Relay: ±4kV IEC 61000-4-5 (Surge), Level 3 Power supply: common mode ±2kV, differential mode ±1kV Ethernet interface: ±2kV Relay: common mode ±2kV, differential mode ±1kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
|
|
Certification |
CE, FCC, RoHS, UL61010 |
