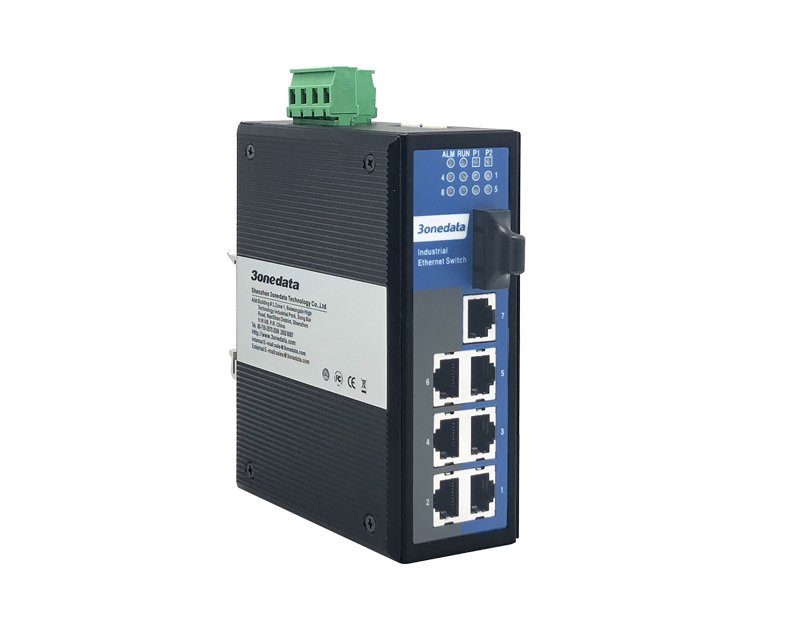

IES318-1F (SM,ST)
1*100Base-FX ( Single-mode, ST, 20KM) + 7*10/100Base-T(X) (RJ45), dual power supply:12～48VDC
- Support 6 100M copper ports and 2 100M Ethernet copper or fiber ports optional
- Support relay alarm output
- Support dual 12~48VDC power supply input
- Support -40~75℃ wide operating temperature range

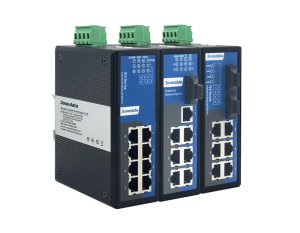

| IES318 | 8*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES318-1F (MM,SC) | 1*100Base-FX ( Multi-mode, SC, 2KM) + 7*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES318-1F (MM,ST) | 1*100Base-FX ( Multi-mode, ST, 2KM) + 7*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES318-1F (SM,SC) | 1*100Base-FX (Single-mode, SC, 20KM) + 7*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES318-1F (SM,ST) | 1*100Base-FX (Single-mode, ST, 20KM) + 7*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES318-2F (MM,SC) | 2*100Base-FX ( Multi-mode, SC, 2KM) + 6*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES318-2F (MM,ST) | 2*100Base-FX ( Multi-mode, ST, 2KM) + 6*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES318-2F (SM,SC) | 2*100Base-FX (Single-mode, SC, 20KM) + 6*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES318-2F (SM,ST) | 2*100Base-FX (Single-mode, ST, 20KM) + 6*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| Toplam Port Sayısı | : | 8 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100BaseT(X) | : | 7 |
| 100BaseFX SFP | : | 1 |
|
Standard &Protocol
|
IEEE 802.3 for 10Base-TX IEEE 802.3u for 100Base-TX and 100Base-FX
|
| Interface |
Copper port: 10/100Base-T(X)RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning Fiber port: 100Base-FX，SC/ST/FC optional Alarm port: 2-pin 7.62mm pitch terminal blocks, support 1 relay alarm output, current carrying capacity 1A@24VDC or 0.5A@120VAC
|
|
LED Indicator |
Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator
|
|
Switch Property |
Transmission mode: store and forward MAC address: 2K Packet buffer size: 1Mbit Backplane bandwidth: 1.6G Switch time delay: <10μs
|
|
Power Requirement |
12~48VDC, 4-pin 7.62mm pitch terminal blocks Dual power supply redundancy, non-polarity, reverse connection protection
|
|
Environmental Limit |
Operating temperature range: -40~75℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95%（no condensation）
|
|
Physical Characteristic |
IP30 protection, metal Installation: DIN-Rail mounting or wall mounting Dimension (W x H x D): 53mm×136mm×105mm Weight: 900g
|
|
Industrial Standard |
IEC 61000-4-2 (ESD), Level 4 Air discharge: ±15kV Contact discharge: ±8kV IEC 61000-4-3 (RS), Level 3 Test level: 10V/m Frequency range: 80MHz-1GHz IEC 61000-4-4 (EFT), Level 4 Power supply; ±4kV Ethernet port: ±2kV Relay: ±4kV IEC 61000-4-5 (Surge), Level 4 Power supply: common mode±4kV, differential mode±2kV Ethernet port: ±4kV Relay：common mode±4kV, differential mode±2kV IEC 61000-4-6 (CS), Level 3 Test level: 10V Frequency range: 150kHz-80MHz Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
|
|
Certification |
CE, FCC, RoHS, UL61010 |
