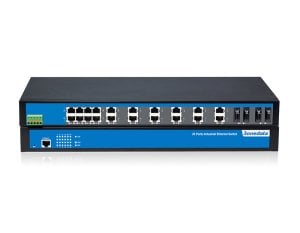

IES5024-4F (MM,ST)
4*100Base-FX (Multi-mode, ST, 2KM) + 20-port 10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC
- Toplam 24 bakır ve fiber port kombinasyonları
- SW-Ring patentli teknoloji, single ring, coupling ring, chain, Dual-homing, automatic recovery time of network failure < 20ms
- 100-240VAC besleme
- -40~75℃ çalışma sıcaklık aralığı
| IES5024 | 24*10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES5024-2F (MM,SC) | 2*100Base-FX ( Multi-mode, SC/ST/FC, 2KM) + 22-port 10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES5024-2F (MM,ST) | |
| IES5024-2F (SM,SC) | 2*100Base-FX (Single-mode, SC/ST/FC, 20KM) + 22-port 10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES5024-2F (SM,ST) | |
| IES5024-4F (MM,SC) | 4*100Base-FX ( Multi-mode, SC/ST/FC, 2KM) + 20* 10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES5024-4F (MM,ST) | |
| IES5024-4F (SM,SC) | 4*100Base-FX (Single-mode, SC/ST/FC, 20KM) + 20* 10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES5024-4F (SM,ST) | |
| IES5024-8F (MM,SC) | 8*100Base-FX ( Multi-mode, SC/ST/FC, 2KM) + 16* 10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES5024-8F (MM,ST) | |
| IES5024-8F (SM,SC) | 8*100Base-FX (Single-mode, SC/ST/FC, 20KM) + 16* 10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES5024-8F (SM,ST) | |
| IES5024-12F (MM,SC) | 12*100Base-FX ( Multi-mode, SC/ST/FC, 2KM) +12*10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES5024-12F (MM,ST) | |
| IES5024-12F (SM,SC) | 12*100Base-FX (Single-mode, SC/ST/FC, 20KM) +12*10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES5024-12F (SM,ST) | |
| IES5024-16F (MM,SC) | 16*100Base-FX ( Multi-mode, SC/ST/FC, 2KM) + 8*10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES5024-16F (MM,ST) | |
| IES5024-16F (SM,SC) | 16*100Base-FX (Single-mode, SC/ST/FC, 20KM) + 8*10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES5024-16F (SM,ST) | |
| IES5024-20F (MM,SC) | 20*100Base-FX ( Multi-mode, SC/ST/FC, 2KM) +4*10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES5024-20F (MM,ST) | |
| IES5024-20F (SM,SC) | 20*100Base-FX (Single-mode, SC/ST/FC, 20KM) +4*10/100Base-T(X) (RJ45), single power supply:100～240VAC/DC |
| IES5024-20F (SM,ST) | |
| IES5024-24F (MM,SC) | 24*100Base-FX ( Multi-mode, SC/ST/FC, 2KM), single power supply:100～240VAC/DC |
| IES5024-24F (MM,ST) | |
| IES5024-24F (SM,SC) | 24*100Base-FX (Single-mode, SC/ST/FC, 20KM), single power supply:100～240VAC/DC |
| IES5024-24F (SM,ST) |
| Toplam Port Sayısı | : | 24 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100BaseT(X) | : | 20 |
| 100BaseFX SFP | : | 4 |
|
Standard &Protocol |
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE 802.1p for Class of Service
|
| Management |
SNMP v1/v2c Centralized Management of Equipment, RMON, Port Mirroring, QoS, DHCP Server, DHCP Client, File Management, Port Statistics, Console/Telnet/WEB Management
|
| Security |
Classification of User Permissions, Mac Port Lock, E-mail Alarm, Relay Alarm
|
| Switch Function |
802.1Q Vlan, Static Port Aggregation, Bandwidth Management, Flow Control
|
|
Unicast / Multicast
|
Static Multicast, GMRP, IGMP-Snooping |
|
Redundancy Protocol
|
SW-Ring, STP/RSTP
|
| Time Management |
SNTP
|
| Interface |
Copper port: 10Base-T/100Base-TX, RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning Fiber port: 100Base-FX Console port: CLI command line management port (RS-232), RJ45 Alarm port: 2-pin 5.08mm pitch terminal blocks, support 1 relay alarm output, current carrying capacity 2A@250VDC
|
|
LED Indicator |
Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator
|
|
Switch Property |
Transmission mode: store and forward MAC address: 8K Packet buffer size: 3Mbit Backplane bandwidth: 12.8G Switch time delay: < 10μs
|
|
Power Requirement |
100~240VAC/DC
|
|
Environmental Limit |
Operating temperature range: -40~75℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95%（no condensation）
|
|
Physical Characteristic |
Housing: IP30 protection, metal Installation: 19 inches 1U rack mounting Dimension (W x H x D): 441.6mm×44.6mm×207.9mm
|
|
Industrial Standard |
IEC61000-4-2 (ESD), Level 4 Air discharge: ±15kV Contact discharge: ±8kV IEC61000-4-4 (EFT), Level 4 Power supply: ±4kV Ethernet interface: ±2kV Relay: ±4kV IEC61000-4-5 (Surge), Level 4 Power supply: common mode ±4kV, differential mode ±2kV Ethernet interface: ±4kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
|
|
Certification |
CE, FCC, RoHS |
