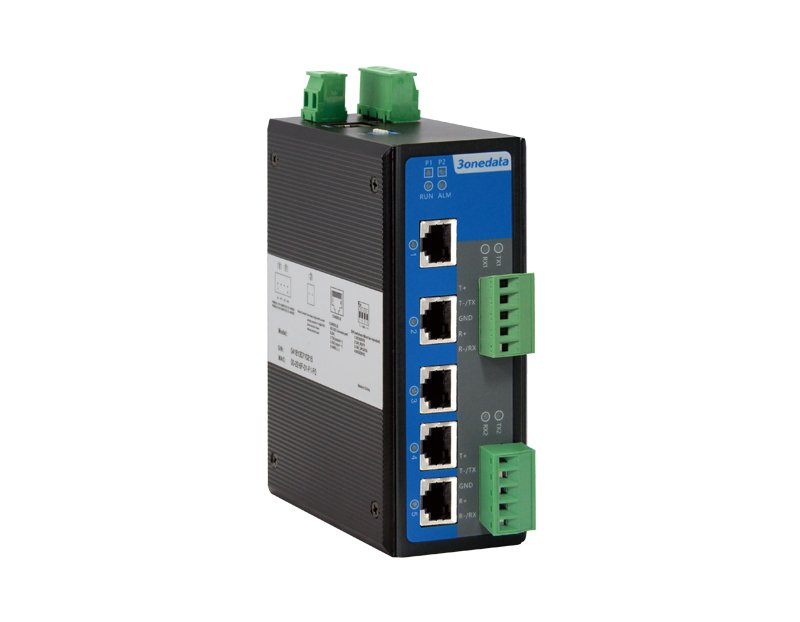

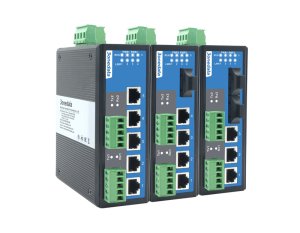

IES615-2DI(3IN1)
5*10/100Base-T(X) (RJ45)+2*RS-232/485/422 (5 bit terminal block), dual power supply:12～48VDC
- 5adet 100M bakır veya Fiber port, 2 seri (RS232/422/485) port
- SW-Ring patentli teknoloji, single ring, coupling ring, chain, Dual-homing, automatic recovery time of network failure < 20ms
- 12-48VDC
- -40~75℃ çalışma sıcaklık aralığı
| IES615-2DI(3IN1) | 5*10/100Base-T(X) (RJ45)+2*RS-232/485/422 (5 bit terminal block), dual power supply:12～48VDC |

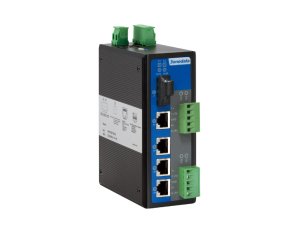

| IES615-1F-2DI(3IN1) (MM,SC) | 1*100Base-FX (Multi-mode, SC/ST/FC, 2KM) + 4*10/100Base-T(X) (RJ45) +2*RS-232/485/422 (5 bit terminal block), dual power supply:12～48VDC |
| IES615-1F-2DI(3IN1) (MM,ST) | |
| IES615-1F-2DI(3IN1) (SM,SC) | 1*100Base-FX (Single-mode, SC/ST/FC, 20KM) + 4*10/100Base-T(X) (RJ45) +2*RS-232/485/422 (5 bit terminal block), dual power supply:12～48VDC |
| IES615-1F-2DI(3IN1) (SM,ST) | |

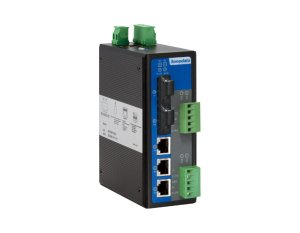

| IES615-2F-2DI(3IN1) (MM,SC) | 2*100Base-FX (Multi-mode, SC/ST/FC, 2KM) + 3*10/100Base-T(X) (RJ45) +2*RS-232/485/422 (5 bit terminal block), dual power supply:12～48VDC |
| IES615-2F-2DI(3IN1) (MM,ST) | |
| IES615-2F-2DI(3IN1) (SM,SC) | 2*100Base-FX (Single-mode, SC/ST/FC, 20KM) + 3*10/100Base-T(X) (RJ45) +2*RS-232/485/422 (5 bit terminal block), dual power supply:12～48VDC |
| IES615-2F-2DI(3IN1) (SM,ST) |
| Toplam Port Sayısı | : | 5 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100BaseT(X) | : | 5 |
| Seri Port | : | RS232/422/485 |
|
Standard &Protocol |
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3x for Flow Control IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE 802.1p for CoS
|
| Management |
Console/Telnet/WEB Management, SNMP v1/v2c Centralized Management of Equipment, Port Mirroring, QoS, File Management, Port Statistics
|
| Security |
Classification of User Permissions, Relay Alarm (Port Alarm and Power Supply Alarm)
|
| Switch Function |
802.1Q Vlan, Static Port Aggregation, Bandwidth Management, Flow Control
|
|
Unicast / Multicast
|
Static Multicast |
|
Redundancy Protocol
|
SW-Ring, RSTP
|
| Serial Port Server Function |
2 serial port servers, each one supports 4 TCP or UDP session connections. Multiple operating modes: TCP Server, TCP Client, UDP, TCP auto, Realcom, advanced TCP Server and advanced UDP
|
| Interface |
Copper port: 10/100Base-T(X)RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning Fiber port: 100Base-FX Console port: CLI command line management port (RS-232), RJ45 Alarm port: 2-pin 7.62mm pitch terminal blocks, support 1 relay alarm output, current carrying capacity 1A@24VDC or 0.5A@120VAC
|
|
Serial Port
|
RS-232 signal: TXD, RXD, GND RS-422 signal: T+, T-, R+, R-, GND RS-485 signal: D+, D-, GND Check bit: None, Even, Odd, Space, Mark Data bit: 5bit, 6bit, 7bit, 8bit Stop bit: 1bit, 1.5bit，2bit Baud rate: 300-115200bps Interface form: 5-pin terminal blocks Load capacity: RS-485/422 port supports 32-point polling environment(128-point could be customized) Direction control: RS-485 adopts automatic data flow control technology
|
|
LED Indicator |
Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator
|
|
Switch Property |
Transmission mode: store and forward MAC address: 2K Packet buffer size: 0.5Mbit Backplane bandwidth: 1.2G Switch time delay: <15μs
|
|
Power Requirement |
12~48VDC, 4-pin 7.62mm pitch terminal blocks Dual power supply redundancy, non-polarity, reverse connection protection Support built-in 3.0A over-current protection
|
|
Environmental Limit |
Operating temperature range: -40~75℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95%（no condensation）
|
|
Physical Characteristic |
Housing: IP40 protection, aluminum housing Installation: DIN-Rail mounting or wall mounting Dimension (W x H x D): 53mm×138mm×110mm
|
|
Industrial Standard |
IEC61000-4-2 (ESD), Level 3 Air discharge: ±8kV Contact discharge: ±6kV
IEC61000-4-4 (EFT), Level 3 Power supply: ±2kV Ethernet port: ±2kV Relay: ±2kV
IEC61000-4-5 (Surge), Level 3 Power supply /Relay: common mode±2kV, differential mode±1kV； Ethernet port: ±2kV；
Shock: IEC60068-2-27 Free fall: IEC60068-2-23 Vibration: IES 60068-2-6
|
|
Certification |
CE, FCC, RoHS |
