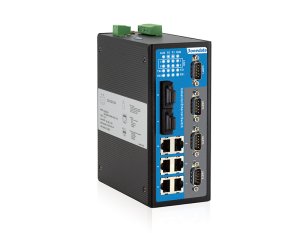

IES618-2F-4D(RS232) (MM,ST)
2*100Base-FX (Multi-mode, ST, 2KM) + 6*10/100Base-T(X) (RJ45) + 4*RS-232 (DB9), dual power supply:12～48VDC
- 8adet 100M bakır veya Fiber port, 4 seri (RS-232 veya RS-422/485) port
- SW-Ring patentli teknoloji, single ring, coupling ring, chain, Dual-homing, automatic recovery time of network failure < 20ms
- 12-48VDC
- -40~75℃ çalışma sıcaklık aralığı

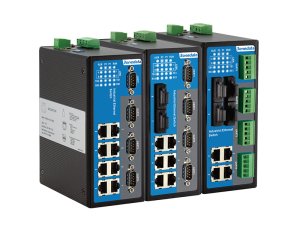

| MODEL | 100M Bakır Port | 100M Fiber Port |
Multi-Mode
Single-Mode
|
SC
ST
|
RS-232 | RS-485 |

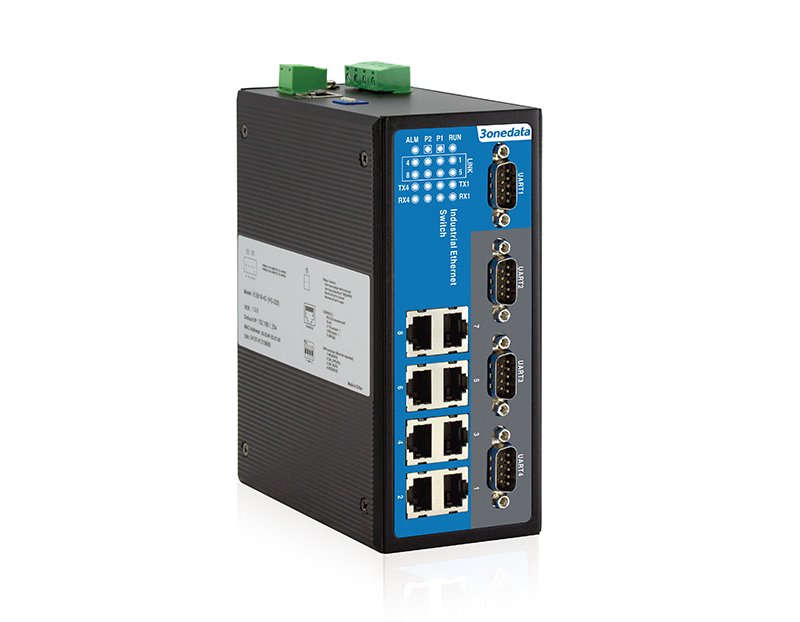

| IES618-4D(RS-232) | 8 | 0 | - | - | 4 | 0 |
| IES618-2F-4D(RS-232) (MM,SC) | 6 | 2 | Multi-Mode | SC | 4 | 0 |
| IES618-2F-4D(RS-232) (MM,ST) | 6 | 2 | Multi-Mode | ST | 4 | 0 |
| IES618-2F-4D(RS-232) (SM,SC) | 6 | 2 | Single-Mode | SC | 4 | 0 |
| IES618-2F-4D(RS-232) (SM,ST) | 6 | 2 | Single-Mode | ST | 4 | 0 |
| IES618-4F-4D(RS-232) (MM,SC) | 4 | 4 | Multi-Mode | SC | 4 | 0 |
| IES618-4F-4D(RS-232) (MM,ST) | 4 | 4 | Multi-Mode | ST | 4 | 0 |
| IES618-4F-4D(RS-232) (SM,SC) | 4 | 4 | Single-Mode | SC | 4 | 0 |
| IES618-4F-4D(RS-232) (SM,ST) | 4 | 4 | Single-Mode | ST | 4 | 0 |

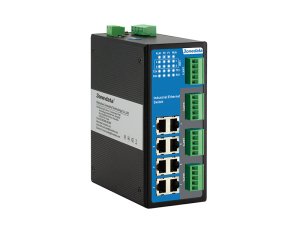

| IES618-4DI(RS-485) | 8 | 0 | - | - | 0 | 4 |
| IES618-2F-4DI(RS-485) (MM,SC) | 6 | 2 | Multi-Mode | SC | 0 | 4 |
| IES618-2F-4DI(RS-485) (MM,ST) | 6 | 2 | Multi-Mode | ST | 0 | 4 |
| IES618-2F-4DI(RS-485) (SM,SC) | 6 | 2 | Single-Mode | SC | 0 | 4 |
| IES618-2F-4DI(RS-485) (SM,ST) | 6 | 2 | Single-Mode | ST | 0 | 4 |
| IES618-4F-4DI(RS-485) (MM,SC) | 4 | 4 | Multi-Mode | SC | 0 | 4 |
| IES618-4F-4DI(RS-485) (MM,ST) | 4 | 4 | Multi-Mode | ST | 0 | 4 |
| IES618-4F-4DI(RS-485) (SM,SC) | 4 | 4 | Single-Mode | SC | 0 | 4 |
| IES618-4F-4DI(RS-485) (SM,ST) | 4 | 4 | Single-Mode | ST | 0 | 4 |
| Toplam Port Sayısı | : | 8 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100BaseT(X) | : | 6 |
| 100BaseFX SFP | : | 2 |
| Seri Port | : | RS232 |
|
Standard &Protocol |
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE 802.1p for CoS
|
| Management |
Console/Telnet/WEB Management, SNMP v1/v2c Centralized Management of Equipment, Port Mirroring, QoS, File Management, Port Statistics
|
| Security |
Classification of User Permissions, Relay Alarm (Port Alarm and Power Supply Alarm)
|
| Switch Function |
802.1Q Vlan, Static Port Aggregation, Bandwidth Management, Flow Control
|
|
Unicast / Multicast
|
Static Multicast |
|
Redundancy Protocol
|
SW-Ring, STP/RSTP
|
| Serial Port Server Function |
4 serial device servers, each one supports 4 TCP or UDP session connections; multiple operating modes: TCP Server, TCP Client, UDP, TCP auto, Realcom, advanced TCP Server and advanced UDP
|
| Interface |
Copper port: 10/100Base-T(X)RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning Fiber port: 100Base-FX Console port: CLI command line management port (RS-232), RJ45 Alarm port: 2-pin 7.62mm pitch terminal blocks, support 1 relay alarm output, current carrying capacity 1A@24VDC or 0.5A@120VAC
|
|
Serial Port
|
RS-232 signal: TXD, RXD, RTS, CTS, DTR, DSR, GND RS-422 signal: T+, T-, R+, R-, GND RS-485 signal: D+, D-, GND Check bit: None, Even, Odd, Space, Mark Data bit: 5bit, 6bit, 7bit, 8bit Baud rate: 300-115200bps Interface type: DB9 male of RS-232 5-pin terminal blocks of RS-485/422 Load capacity: RS-485/422 supports 32 nodes polling environment (customizable 128 points) Directional control: RS-485 adopts automatic data flow control technology RS-232 interface protection: electrostatic protection 15kV RS-485/422 interface protection: isolation voltage 2kV, electrostatic protection 15kV
|
|
LED Indicator |
Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator
|
|
Switch Property |
Transmission mode: store and forward MAC address: 2K Packet buffer size: 1Mbit Backplane bandwidth: 2G Switch time delay: < 10μs
|
|
Power Requirement |
12~48VDC, 4-pin 7.62mm pitch terminal blocks, dual power supply redundancy, nonpolarity, reverse polarity protection support built-in 4.0A overcurrent protection
|
|
Environmental Limit |
Operating temperature range: -40~75℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95%（no condensation）
|
|
Physical Characteristic |
Housing: IP40 protection, metal Installation: DIN-Rail or wall mounting Dimension (W x H x D): 70mm×160mm×130mm
|
|
Industrial Standard |
EMI: FCC Part 15, CISPR (EN55022) class A EMS: IEC61000-4-2 (ESD), Level 4 IEC61000-4-3(RS), Level 3 IEC61000-4-4 (EFT), Level 4 IEC61000-4-5 (Surge), Level 4 IEC61000-4-6(CS), Level 3 IEC61000-4-8(PFM), Level 5 Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IES 60068-2-6 |
|
Certification |
CE, FCC, RoHS |
