IES618-4F (MM,ST)
4*100Base-FX ( Multi-mode, ST, 2KM) + 4*10/100Base-T(X) (RJ45), dual power supply:12～48VDC
- 4x100M bakır port, opsiyonel 4 x fiber veya bakır port
- SW-Ring patentli teknoloji, single ring, coupling ring, chain, Dual-homing, automatic recovery time of network failure < 20ms
- 12~48VDC , nonpolarity, reverse polarity
- -40~75℃ çalışma sıcaklık aralığı

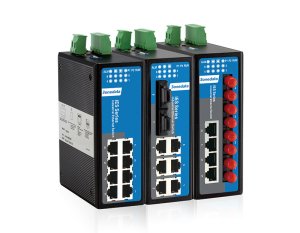

| IES618 | 8*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES618-2F (MM,SC) | 2*100Base-FX ( Multi-mode, SC/ST/FC, 2KM) + 6*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES618-2F (MM,ST) | |
| IES618-2F (SM,SC) | 2*100Base-FX (Single-mode, SC/ST/FC, 20KM) + 6*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES618-2F (SM,ST) | |
| IES618-2F (SM,SC) (220VAC) | 2*100Base-FX (Single-mode, SC/ST/FC, 20KM) + 6*10/100Baes-T(X) (RJ45), single power supply:AC220V |
| IES618-2F (SM,ST) (220VAC) | |
| IES618-3F (MM,SC) | 3*100Base-FX ( Multi-mode, SC/ST/FC, 2KM) + 5*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES618-3F (MM,ST) | |
| IES618-3F (SM,SC) | 3*100Base-FX (Single-mode, SC/ST/FC, 20KM) +5*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES618-3F (SM,ST) | |
| IES618-4F (MM,SC) | 4*100Base-FX ( Multi-mode, SC/ST/FC, 2KM) + 4*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES618-4F (MM,ST) | |
| IES618-4F (SM,SC) | 4*100Base-FX (Single-mode, SC/ST/FC, 20KM) + 4*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES618-4F (SM,ST) |
| Toplam Port Sayısı | : | 8 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100BaseT(X) | : | 4 |
| 100BaseFX SFP | : | 4 |
|
Standard &Protocol |
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE 802.1p for CoS
|
| Management |
Console/Telnet/WEB Management, SNMP v1/v2c Centralized Management of Equipment, Port Mirroring, QoS, File Management, Port Statistics
|
| Security |
Classification of User Permissions, Relay Alarm (Port Alarm and Power Supply Alarm)
|
| Switch Function |
802.1Q Vlan, Static Port Aggregation, Bandwidth Management, Flow Control
|
|
Unicast / Multicast
|
Static Multicast |
|
Redundancy Protocol
|
SW-Ring, STP/RSTP
|
| Interface |
Copper port: 10/100Base-T(X) RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning Fiber port: 100Base-FX Console port: CLI command line management port (RS-232), RJ45 Alarm port: 2-pin 7.62mm pitch terminal blocks, support 1 relay alarm output, current carrying capacity 1A@24VDC or 0.5A@120VAC
|
|
LED Indicator |
Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator
|
|
Switch Property |
Transmission mode: store and forward MAC address: 2K Packet buffer size: 1Mbit Backplane bandwidth: 2G Switch time delay: < 15μs
|
|
Power Requirement |
12~48VDC, 4-pin 7.62mm pitch terminal blocks dual power supply redundancy, nonpolarity, reverse polarity protection
|
|
Environmental Limit |
Operating temperature range: -40~75℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95%（no condensation）
|
|
Physical Characteristic |
Housing: IP40 protection, metal Installation: DIN-Rail mounting Dimension (W x H x D): 53mm×138mm×110mm
|
|
Industrial Standard |
IEC61000-4-2 (ESD), Level 4 Air discharge: ±15kV Contact discharge: ±8kV IEC61000-4-5 (Surge), Level 4 Power supply: common mode ±4kV, differential mode ±2kV Ethernet port: ±4kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IES 60068-2-6
|
|
Certification |
CE, FCC, RoHS, UL61010 |
