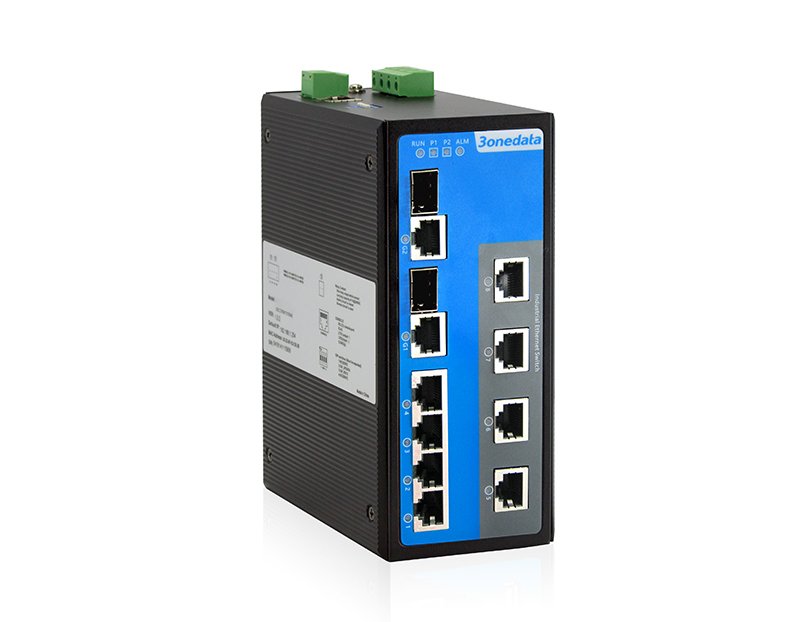

IES7110-2GS-4F (MM,SC)
2*1000M SFP(SFP slot) + 4*100Base-FX (Multi-mode, SC, 2KM) + 4*10/100Base-T(X) (RJ45), dual power supply:12～48VDC
- 2 gigabit Combo (SFP slots or RJ45), 8 100Mt bakır port
- SW-Ring patentli teknoloji, single ring, coupling ring, chain, Dual-homing, automatic recovery time of network failure < 20ms
- 12~48VDC , nonpolarity, reverse polarity
- -40~75℃ çalışma sıcaklık aralığı
| IES7110-2GC | 2*1000M Combo +8*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES7110-2GS | 2*1000M SFP(SFP slot) +8*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES7110-2GS-2F (MM,SC) | 2*1000M SFP(SFP slot) + 2*100Base-FX (Multi-mode, SC/ST/FC, 2KM) + 6*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES7110-2GS-2F (MM,ST) | |
| IES7110-2GS-2F (SM,SC) | 2*1000M SFP(SFP slot) + 2*100Base-FX (Single-mode, SC/ST/FC, 20KM) + 6*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES7110-2GS-2F (SM,ST) | |
| IES7110-2GS-4F (MM,SC) | 2*1000M SFP(SFP slot) + 4*100Base-FX (Multi-mode, SC/ST/FC, 2KM) + 4*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES7110-2GS-4F (MM,ST) | |
| IES7110-2GS-4F (SM,SC) | 2*1000M SFP(SFP slot) + 4*100Base-FX (Single-mode, SC/ST/FC, 20KM) + 4*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| IES7110-2GS-4F (SM,ST) | |
| IES7110-3GS | 3*1000M SFP(SFP slot) +7*10/100Base-T(X) (RJ45), dual power supply:12～48VDC |
| Toplam Port Sayısı | : | 10 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100BaseT(X) | : | 4 |
| 100BaseFX SFP | : | 4 |
| 1000Base SFP | : | 2 |
|
Standard &Protocol |
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3z for 1000Base-X IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE 802.1p for CoS
|
| Management |
SNMP v1/v2c Centralized Management of Equipment, Port Mirroring, QoS, DHCP Client, File Management, Port Statistics
|
| Security |
Classification of User Permissions, Port Alarm and Power Supply Alarm
|
| Switch Function |
802.1Q Vlan, Static Port Aggregation, Bandwidth Management, Flow Control
|
|
Unicast / Multicast
|
Static Multicast , IGMP-Snooping |
|
Redundancy Protocol
|
SW-Ring, STP/RSTP
|
| Interface |
100M copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning Gigabit copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning 100M fiber port: 100Base-FX, SC/ST/FC optional SFP slot: 1000Base-SFP Console port: CLI command line management port (RS-232), RJ45 Alarm port: 2-pin 7.62mm pitch terminal blocks, support 1 relay alarm output
|
|
LED Indicator |
Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator
|
|
Switch Property |
Transmission mode: store and forward MAC address: 8K Packet buffer size: 1Mbit Backplane bandwidth: 7.6G Switch time delay: <10μs
|
|
Power Requirement |
12~48VDC, 4-pin 7.62mm pitch terminal blocks dual power supply redundancy, non-polarity, reverse connection protection
|
|
Environmental Limit |
Operating temperature range: -40~75℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95%（no condensation）
|
|
Physical Characteristic |
Housing: IP40 protection, metal Installation: DIN-Rail mounting or wall mounting Dimension (W x H x D): 53mm×138mm×110mm Weight: ≤790g
|
|
Industrial Standard |
IEC 61000-4-2 (ESD), Level 4 Air discharge: ±15kV Contact discharge: ±8kV IEC 61000-4-4 (EFT)，Level 4 Power supply: ±4kV Ethernet port: ±2kV Relay: ±4kV IEC 61000-4-5 (Surge), Level 4 (excludes IES7110-3GS) Power supply: common mode±4kV, differential mode±2kV Ethernet port: ±2kV Relay: common mode±4kV, differential mode±2kV IEC 61000-4-5 (Surge), Level 3 (IES7110-3GS) Power supply: common mode±2kV, differential mode±1kV Ethernet port: ±2kV Relay: common mode±2kV, differential mode±1kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
|
|
Certification |
CE, FCC, RoHS, UL61010 |
