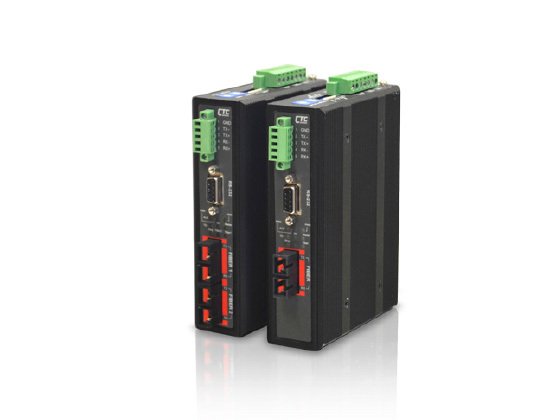

FieldBus Protocol

Protocol Transparent

Protocol applicable to all operations available on RS485/422/232, such as Modbus,…

Data Flow

Dual Channel Communication

Both of Triple-Way and Two-Way

Optical Interface

Connector

SC, ST

Fiber Port

2 fiber ports (IFC-FDC)
1 fiber port (IFC-Serial)

Fiber Type

MM 2km, SM 30km, 60km
Bidi 20KM

Wavelength

MM 1310nm, SM 1310
Bidi: Mode A : TX1310nm/RX1550nm
Mode B : TX1550nm/RX1310nm

Point to Point Transmission

Full duplex

Ring Transmission

Full duplex, self-healing operation

Fiber Port Topology

Cable redundancy(Figure 3), ring redundancy(Figure 4), daisy chain(Figure 5), point to point (IFC-FDC)

Point to point(Figure 7) (IFC-Serial)

Electrical Interface

Serial Port Connector

RS-232(DB9), RS-422/RS-485(5 pin terminal block)

RS-485 : 4, 2 wires, RS-422 : 4 wires

RS-485 direction

Automatically detection

Serial Port Baudrate

50 to 1024kpbs
Auto baudrate, no need to set baudrate

Serial Port Isolation

2.5KV isolation for serial signals
EMC/noise isolation, to reduce mutual interference between serial port device

Pull high resistor

Selected by 10 position rotary switch

Pull low resistor

Selected by 10 position rotary switch

120ohm Terminator

Built-in 120 ohm terminator (Selected by Dip Switch)

Environmental

Operating Temperature

-10 ~ 60°C (IFC-FDC, IFC-Serial)
-40 ~ 75°C (IFC-FDC-E, IFC-Serial-E)

Storage temperature

-40 ~ 85°C

Humidity

5 ~ 95% RH

LED Indications

PWR1, PWR2, Alarm, Master, TD, RD, Fiber Link, Fiber2 Link (IFC-FDC only), Ring

Alarm Relay

Alarm exists for power, fiber link or ring protection
Relay output with carry capacity 1A @ 24VDC

Power

Power Input

Redundant Dual Power 12, 24, 48 VDC (9.6 ~ 58VDC)

Power Consumption

6W (IFC-FDC)
5W (IFC-Serial)

Power Reversal Protection

Yes

Over Current Protection

Signal Short Together Protected

Terminal Block for Power and Alarm :
Terminal Block : V1+, V1-, V2+, V2-, Alarm NC, Alarm COM, Alarm NO

Mechanical

Water & Dust Proof

IP30 Protection, Fanless

Dimensions

106 x 38.6 x 142.1mm (D x W x H)

Mounting

DIN-Rail, or wall mounting (Optional)

Weight

0.64kg (IFC-FDC) 0.63kg (IFC-Serial)

Certification

Safety

UL60950-1

EMC

CE

EMI

FCC Part 15 Subpart B Class A, CE

Immunity for Heavy Industrial Environment

EN61000-6-2

Emission for Heavy Industrial Environment

EN61000-6-4

EMS

EN61000-4-2 ESD Level 3

EN61000-4-3 RS Level 3

EN61000-4-4 EFT Level 3

EN61000-4-5 Surge Level 3

EN61000-4-6 CS Level 3

Free Fall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Shock

IEC 60068-2-27

Green

RoHS

MTBF

739,886 Hours (IFC-FDC)
847,029 Hours (IFC-Serial)
(MIL-HDBK-217)
