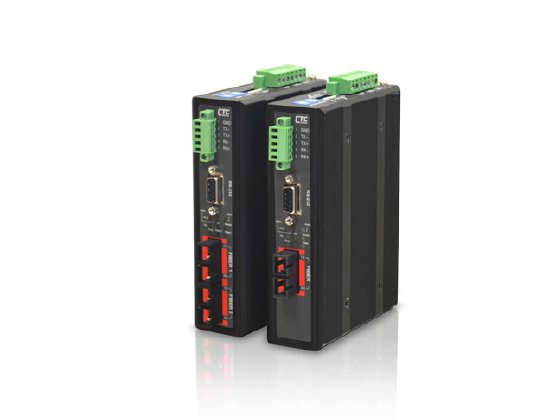

IFC-Serial-E-SC020A
RS-232/422/485 Fiber Converter
- Supports 1 fiber link
- Supports dual channel communication, including Triple-Way communication, and Two-Way communication
- Extend serial transmission distance up to 2km, 30km, 60km
- Supports point to point
- Redundant dual power inputs (12/24/48VDC)
- Protocol transparent, suitable for all serial (RS485/422/232) transmission protocol, such as Modbus...
- Baudrate up to 1024kpbs for serial port
- Auto baudrate, no need to set baudrate
- 2.5KV isolation for serial port (RS485/422/232)
- UL60950-1, CE, FCC, heavy industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
- Supports relay output for power or link failure warning
- Hardened housing with IP30 protection
- Fanless and DIN-Rail design for harsh industrial environment
- Adjustable pull high/low resistor and terminator for RS-422/485 transmission
|
Industrial RS-232/422/485 to 1x 100FX SC 2Km 1310nm 11dB MM, 2.5KV isolation, daul 12/24/48VDC power input, -10~60oC |
|
|
Industrial RS-232/422/485 to 1x 100FX SC 2Km 1310nm 11dB MM, 2.5KV isolation, daul 12/24/48VDC power input, -40~75oC |
|
|
Industrial RS-232/422/485 to 1x 100FX ST 2Km 1310nm 11dB MM, 2.5KV isolation, daul 12/24/48VDC power input, -10~60oC |
|
|
Industrial RS-232/422/485 to 1x 100FX ST 2Km 1310nm 11dB MM, 2.5KV isolation, daul 12/24/48VDC power input, -40~75oC |
|
|
Industrial RS-232/422/485 to 1x 100FX SC 30Km 1310nm 19dB SM, 2.5KV isolation, daul 12/24/48VDC power input, -10~60oC |
|
|
Industrial RS-232/422/485 to 1x 100FX SC 30Km 1310nm 19dB SM, 2.5KV isolation, daul 12/24/48VDC power input, -40~75oC |
|
|
Industrial RS-232/422/485 to 1x 100FX ST 30Km 1310nm 19dB SM, 2.5KV isolation, daul 12/24/48VDC power input, -10~60oC |
|
|
Industrial RS-232/422/485 to 1x 100FX ST 30Km 1310nm 19dB SM, 2.5KV isolation, daul 12/24/48VDC power input, -40~75oC |
|
|
Industrial RS-232/422/485 to 1x 100FX SC 50Km 1310nm 28dB SM, 2.5KV isolation, daul 12/24/48VDC power input, -10~60oC |
|
|
Industrial RS-232/422/485 to 1x 100FX SC 50Km 1310nm 28dB SM, 2.5KV isolation, daul 12/24/48VDC power input, -40~75oC |
|
|
Industrial RS-232/422/485 to 1x 100FX ST 50Km 1310nm 28dB SM, 2.5KV isolation, daul 12/24/48VDC power input, -10~60oC |
|
|
Industrial RS-232/422/485 to 1x 100FX ST 50Km 1310nm 28dB SM, 2.5KV isolation, daul 12/24/48VDC power input, -40~75oC |
|
|
Industrial RS-232/422/485 to 1x 100FX SC 20Km TX1310/RX1550nm(A type) 20dB SM, 2.5KV isolation, daul 12/24/48VDC power input, -10~60oC |
|
|
Industrial RS-232/422/485 to 1x 100FX SC 20Km TX1310/RX1550nm(A type) 20dB SM, 2.5KV isolation, daul 12/24/48VDC power input, -10~60oC |
|
|
Industrial RS-232/422/485 to 1x 100FX SC 20Km TX1310/RX1550nm(A type) 20dB SM, 2.5KV isolation, daul 12/24/48VDC power input,-40~75oC |
|
|
Industrial RS-232/422/485 to 1x 100FX SC 20Km TX1310/RX1550nm(A type) 20dB SM, 2.5KV isolation, daul 12/24/48VDC power input, -40~75oC |
| Çalışma Sıcaklığı | : | -40/+75C |
| RS-232/422/485 | : | 1 |
| Konnektör Tipi | : | SC |
|
FieldBus Protocol |
Protocol Transparent |
Protocol applicable to all operations available on RS485/422/232, such as Modbus,… |
|
Data Flow |
Dual Channel Communication |
Both of Triple-Way and Two-Way |
|
Optical Interface |
Connector |
SC, ST |
|
Fiber Port |
2 fiber ports (IFC-FDC) |
|
|
Fiber Type |
MM 2km, SM 30km, 60km |
|
|
Wavelength |
MM 1310nm, SM 1310 |
|
|
Point to Point Transmission |
Full duplex |
|
|
Ring Transmission |
Full duplex, self-healing operation |
|
|
Fiber Port Topology |
Cable redundancy(Figure 3), ring redundancy(Figure 4), daisy chain(Figure 5), point to point (IFC-FDC) |
|
|
Point to point(Figure 7) (IFC-Serial) |
||
|
Electrical Interface |
Serial Port Connector |
RS-232(DB9), RS-422/RS-485(5 pin terminal block) |
|
RS-485 : 4, 2 wires, RS-422 : 4 wires |
||
|
RS-485 direction |
Automatically detection |
|
|
Serial Port Baudrate |
50 to 1024kpbs |
|
|
Serial Port Isolation |
2.5KV isolation for serial signals |
|
|
Pull high resistor |
Selected by 10 position rotary switch |
|
|
Pull low resistor |
Selected by 10 position rotary switch |
|
|
120ohm Terminator |
Built-in 120 ohm terminator (Selected by Dip Switch) |
|
|
Environmental |
Operating Temperature |
-10 ~ 60°C (IFC-FDC, IFC-Serial) |
|
Storage temperature |
-40 ~ 85°C |
|
|
Humidity |
5 ~ 95% RH |
|
|
LED Indications |
PWR1, PWR2, Alarm, Master, TD, RD, Fiber Link, Fiber2 Link (IFC-FDC only), Ring |
|
|
Alarm Relay |
Alarm exists for power, fiber link or ring protection |
|
|
Power |
Power Input |
Redundant Dual Power 12, 24, 48 VDC (9.6 ~ 58VDC) |
|
Power Consumption |
6W (IFC-FDC) |
|
|
Power Reversal Protection |
Yes |
|
|
Over Current Protection |
Signal Short Together Protected |
|
|
Terminal Block for Power and Alarm : |
||
|
Mechanical |
Water & Dust Proof |
IP30 Protection, Fanless |
|
Dimensions |
106 x 38.6 x 142.1mm (D x W x H) |
|
|
Mounting |
DIN-Rail, or wall mounting (Optional) |
|
|
Weight |
0.64kg (IFC-FDC) 0.63kg (IFC-Serial) |
|
|
Certification |
Safety |
UL60950-1 |
|
EMC |
CE |
|
|
EMI |
FCC Part 15 Subpart B Class A, CE |
|
|
Immunity for Heavy Industrial Environment |
EN61000-6-2 |
|
|
Emission for Heavy Industrial Environment |
EN61000-6-4 |
|
|
EMS |
EN61000-4-2 ESD Level 3 |
|
|
EN61000-4-3 RS Level 3 |
||
|
EN61000-4-4 EFT Level 3 |
||
|
EN61000-4-5 Surge Level 3 |
||
|
EN61000-4-6 CS Level 3 |
||
|
Free Fall |
IEC 60068-2-32 |
|
|
Vibration |
IEC 60068-2-6 |
|
|
Shock |
IEC 60068-2-27 |
|
|
Green |
RoHS |
|
|
MTBF |
739,886 Hours (IFC-FDC) |
|
