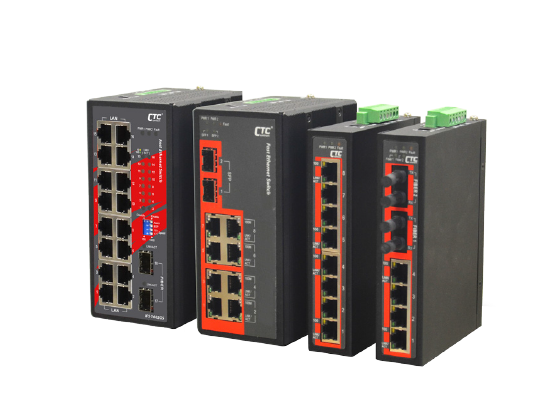

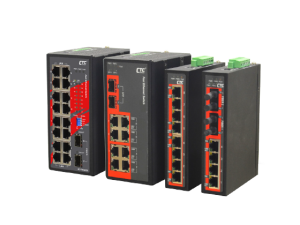

SPECIFICATIONS

Standards

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX and 100Base-FX Fast Ethernet

IEEE 802.3x Flow Control and Back Pressure

IEEE 802.3z 1000Base-X Gbit/s Ethernet over Fiber-

Optic

Switch Architecture

Back-plane (Switching Fabric):

1.2Gbps (IFS-402F)         1.6Gbps (IFS-800)

5.6Gbps (IFS-802GS)      7.2 Gbps (IFS -16 02GS)

Full wire-speed

Data Processing

Store and Forward

Transfer Rate

14,880pps for Ethernet port

148,800pps for Fast Ethernet port

1,488,000pps for Giga Ethernet port

Flow Control

IEEE 802.3x flow control, back pressure flow control

Provides Broadcast Storm Protection

Present, Enable / Disable set by DIP SW

(IFS-402F, IFS-800, IFS-1602GS)

MAC Address Table

  2K  (IFS-402F, IFS-800)     8K (IFS-802GS)

16K  (IFS -16 02GS

Packet Buffer Size

448Kbit (IFS-402F, IFS-800)     1024K bit (IFS-802GS)

4M bit    (IFS -16 02GS)

Network Connector

4X RJ-45, 2 Fiber (IFS-402F

8x RJ-45 (IFS-800)

8x RJ-45, 2 SFP (IFS-802GS)

16x RJ-45, 2x SFP (IFS -16 02GS)

RJ-45 Port:  Auto MDI/MDI-X function, 10/100Base-TX

                    auto negotiation speed, Full/Half duplex

2x 100Base-FX SC/ST fiber port, Multi/Single Mode

(IFS-402F)

2x 1000Base-X SFP port (IFS-802GS, IFS-1602GS)

Network Cable

10Base-T: 2-pair UTP/STP Cat. 5e cable

EIA/TIA-568 100-ohm (100m

100Base-TX: 2-pair UTP/STP Cat. 5e cable

EIA/TIA-568 100-ohm (100m)

Fiber Cable (Multi-mode): 50/125um~62.5/125um

F i b e r C a b l e (Si n g l e - m o d e): 8 /12 5u m ~10/12 5u m

Wavelength: 1310nm (Multi-mode/Single-mode)

Available distance: 2KM (Multi-Mode)

                             30KM (Single-Mode)

                             50KM (Single Mode)

SFP: Distance depend on SFP Fiber Transceiver

Protocols

CSMA/CD

LED

Per unit: Power 1 (Green), Power 2 (Green), Fault (Amber)

RJ-45 Per port: Link/Active (Green), Speed 100 (Yellow)

Fiber Per port: Link/Active (Green) (IFS-402F)

OFF : Enable ON : Disables

Reverse Polarity Protection

Supported for Power Input

Overload Current Protection

Supported

Power Supply

Redundant Dual DC 12/24/48V (9.6~60VDC) Input

power (Removable Terminal Block )

Power Consumption

5.8W (IFS-402F)   4.4W (IFS-802GS)

3.9W (IFS-800)     TBD (IFS -16 02GS)

Alarm Relay Contact

Relay outputs with current carrying capacity of 1A @24VDC

Removable Terminal Block

Provides 2 Redundant power, Alarm relay contact, 6 Pin

Operating Temperature

-10 ~ 60°C (IFS-402F, IFS-800, IFS-802GS, IFS-1602GS)

-40 ~ 75°C

(IFS-402F-E, IFS-800-E, IFS-802GS-E, IFS-1602GS-E)

Operating Humidity

5% to 95% (Non-condensing)

Storage Temperature

 -40 ~ 85°C

Housing

Rugged Metal, IP30 Protection, Fanless

Dimensions

106 x 31.6 x 142mm (D x W x H) (IFS-402F)

106 x 31.6 x 142mm (D x W x H) (IFS-800)

106 x 72 x 152 mm (D x W x H)(IFS-802GS, IFS-1602GS)

Weight

0.42kg  (IFS-402F)     0.67kg (IFS-802GS)

0.43kg  (IFS-800)       TBD  (IFS -16 02GS)

Installation Mounting

DIN Rail mounting, or wall mounting (Optional)

MTBF

907,622 Hours (IFS-402F)

1,064,064 Hours (IFS-800)

837,414 Hours (IFS-802GS)
