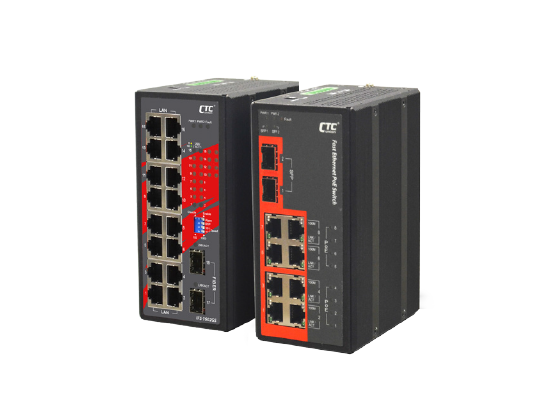

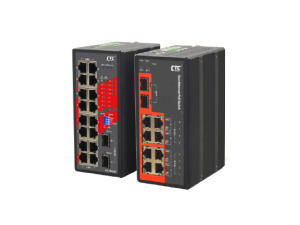

IFS-1602GS-8PHE
Industrial 16x 10/100Base-TX RJ45 + 2x1000Base-X SFP with 8x PoE+ 240W, dual 48VDC power input, -40/75oC
- 8x 10/100Base-TX RJ45 + 2x1000Base-X SFP with 8x PoE (IFS-802GS-8PH)
- 16x 10/100Base-TX RJ45 + 2x 1000Base-X SFP with 8x PoE (IFS-1602GS-8PH)
- Provides 8-port IEEE802.3at/af PoE output (30W/Per Port )
- Maximum PoE output power budget 240W
- 48VDC (44~57VDC) redundant dual input power
- Wide operating temperature -40 ~ 75°C ("E" model )
- Supports power failure alarm message by relay
- Supports flow control
- Provides broadcast storm protection (IFS-1602GS-8PH)
- IP30 rugged metal housing and fanless
- DIN Rail mounting or wall mounting
- CE, FCC, railway EN50121-4 certification
- Heavy industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4 certification
- 4KV surge protection for UTP and PoE ports (IFS-1602GS-8PH)
- 2.25K VDC Hi-pot isolation protection for Ethernet ports and power (IFS-1602GS-8PH)
| Toplam Port Sayısı | : | 18 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100BaseT(X) | : | 16 |
| PoE Port | : | 8 |
| 1000Base SFP | : | 2 |
|
SPECIFICATIONS |
||||
|
IEEE Standard
|
IEEE 802.3 10Base-T Ethernet |
|||
|
IEEE 802.3u 100Base-TX Fast Ethernet |
||||
|
IEEE 802.3z 1000Base-X Gigabit Ethernet |
||||
|
IEEE 802.3x Flow Control and Back Pressure |
||||
|
IEEE 802.3at PoE+(Power over Ethernet enhancements) |
||||
|
IEEE802.3af PoE (Power over Ethernet) |
||||
|
Switch Architecture
|
Back-plane (Switching Fabric): 5.6Gbps (IFS-802GS-8PH) 7.2Gbps (IFS-1602GS-8PH) |
|||
|
Data Processing |
Store and Forward |
|||
|
Flow Control |
IEEE 802.3x flow control, back pressure flow control |
|||
|
MAC Address Table |
8K (IFS-802GS-8PH) 16K (IFS-1602GS-8PH) |
|||
|
Packet Buffer Size |
1Mbit s (IFS-802GS-8PH) 4Mbits (IFS-1602GS-8PH) |
|||
|
Max Frame Size |
1632 Bytes (IFS-802GS-8PH) 1664 Byte (IFS-1602GS-8PH) |
|||
|
PoE standard |
IEEE 802.3at/af |
|||
|
PoE RJ-45 pin Assignment
|
RJ-45 port #1~# 8 support IEEE 802.3at/af (IFS-802GS-8PH) RJ-45 port #9~# 16 support IEEE 802.3at/af (IFS-1602GS-8PH) End-Span, Alternative A mode |
|||
|
Positive (V+): RJ-45 pin 1, 2. |
||||
|
Negative (V-): RJ-45 pin 3, 6. |
||||
|
Data (1, 2, 3, 6 ) |
||||
|
Network Connector |
8x RJ-45 for 10/100Base-TX (IFS-802GS-8PH) 16x RJ-45 for 10/100Base-TX (IFS-1602GS-8PH) auto negotiation speed, Auto MDI/MDI-X function, Full/Half duplex |
|||
|
2x 1000Base-X SFP |
||||
|
Network Cable
|
UTP/STP above Cat. 5e cable |
|||
|
EIA/TIA-568 100-ohm (100m) |
||||
|
Fiber Cable (Multi-mode): 50/125um, 62.5/125um |
||||
|
Fiber Cable (Single-mode): 9/125um |
||||
|
Protocols |
CSMA/CD |
|||
|
LED |
Per unit: Power 1 (Green), Power 2 (Green), Fault (Amber) |
|||
|
Per RJ-45 port : Link/Active (Green) Speed 100 (Yellow) |
||||
|
Fiber Per port: Link/Active (Green) |
||||
|
Per PoE Port LED : • Active : ON • Inactive : OFF
|
||||
|
DIP SW
|
DIP 1 Power failure alarm OFF : Enable ON : Disable
|
|||
|
DIP 2 Broadcast Protection (IFS-1602GS-8PH) OFF : Enable ON : Disable
|
||||
|
Reverse Polarity Protection
|
Supported for Power Input |
|||
|
Overload Current Protection
|
Supported |
|||
|
Power Supply |
Redundant dual 48VDC (44~57VDC) input power (Removable terminal block) (50~57V input is recommended for IEEE802.3at in 30W applications) |
|||
|
Power Consumption |
IFS-802GS-8PH power consumption |
|||
|
Input Voltage |
Total Power Consumption |
Device Power Consumption |
PoE Power Budget |
|
|
48 VDC |
251W |
5.2W |
240W |
|
|
IFS-1602GS-8PH power consumption TBD |
||||
|
PoE Power Budget |
Maximum PoE Output power budget 240W (30W/ Per Port) |
|||
|
Alarm Relay Contact |
Relay outputs with current carrying capacity of 1A @24VDC |
|||
|
Removable Terminal Block |
Provides 2 Redundant power, Alarm relay contact, 6 Pin |
|||
|
Operating Temperature |
-10 ~ 60°C (IFS-802GS-8PH, IFS-1602GS-8PH) |
|||
|
-40 ~ 75°C (IFS-802GS-8PHE, IFS-1602GS-8PHE) |
||||
|
Operating Humidity |
5% to 95% (Non-condensing) |
|||
|
Storage Temperature Housing |
-40 ~ 85°C
|
|||
|
Housing |
Rugged metal, IP30 Protection and fanless |
|||
|
Dimensions |
106 x 72 x 152 mm (D X W X H) |
|||
|
Weight |
765g (IFS-802GS-8PH) TBD (IFS-1602GS-8PH |
|||
|
Installation Mounting |
DIN Rail mounting, or wall mounting (Optional) |
|||
|
MTBF |
635,446Hours (IFS-802GS-8PH) TBD (IFS-1602GS-8PH) ( M I L- H D B K -217)
|
|||
|
EMC |
CE |
|||
|
EMI (Electromagnetic Interference) |
FCC Part 15 Subpart B Class A, CE |
|||
|
Railway Traffic |
EN50121- 4 |
|||
|
Immunity for Heavy Industrial Environment |
EN61000-6-2 |
|||
|
Emission for Heavy Industrial Environment |
EN61000-6-4 |
|||
|
EMS (Electromagnetic Susceptibility) Protection Level |
EN61000-4-2 (ESD) Level 3, Criteria B EN61000-4-3 (RS) Level 3, Criteria A EN61000-4-4 (Burst) Level 3, Criteria A EN61000-4-5 (Surge) Level 3, Criteria B EN61000-4-6 (CS) Level 3, Criteria A EN61000-4-8 (PFMF, Magnetic Field) Field Strength: 300A/m, Criteria A |
|||
|
Safety |
UL60950-1 (Pending) |
|||
|
Hi-pot isolation protection |
DC 2.25KV for power to chassis ground, and UTP/ PoE port to chassis ground (IFS-1602GS-8PH) |
|||
|
4KV surge protection |
Supported for PoE & UTP Port (IFS-1602GS-8PH) |
|||
|
Shock |
IEC 60068 -2-27 |
|||
|
Freefall |
IEC 60068 -2-32 |
|||
|
Vibration |
IEC 60068 -2-6 |
|||
