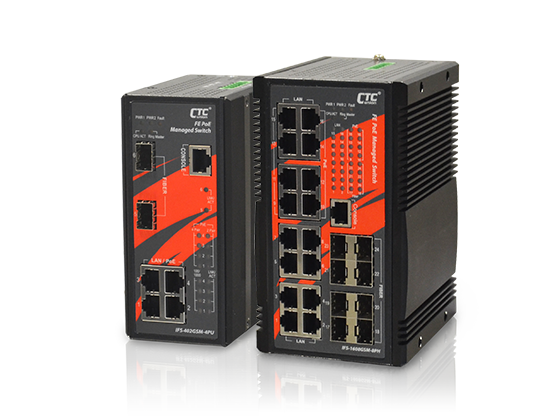

IFS-1608GSM-8PH
Industrial manged 16x10/100MbpsTX + 8x100/1000Mbps SFP, with 8 x PoE++ (30W), 240W, , dual 48/-48VDC power input, -10~60C
Bu seri, 4/16x FE UTP + 2/8 GbE SFP (4/8x PoE Port’lu) içeren yönetilebilir endüstriyel PoE anahtar serisidir. Çift güç girişi tasarımı ile kritik uygulamalrda iletişim sürekliliği sağlamaktadır. DIN rail ve duvar montaj opsiyonlu olan bu anahtarlar endüstriyel uygulamalar, akıllı ulaşım sistemleri (ITS) dışında askeri uygulamalar gibi zorlu ortamlar için de uygundur.
Bu seriler, STP/RSTP/MSTP/ ITU-T G.8032 ERPS, multiple u-Ring, auto-checking, auto-reset gibi gelişmiş PoE yönetim fonksiyonlarını destekler. Aynı zamanda layer 2 Ethernet IGMP, VLAN, QoS, Security, IPv6, bandwidth control, port mirroring, cable diagnostics ve Green Ethernet desteği mevcuttur.
Bu seri ürünler, ağ yöneticilerine merkezden cihazları gözlemleyebilecekleri ve yönetebilecekleri CTC Union’un "SmartView™” (https://www.ctcu.com/en/industrial-ethernet-management-software/ems-smartview.html) merkezi yönetim sistemini de desteklemektedir.
- 4x 10/100Base-TX RJ-45 + 2x 100/1000Base-X SFP with 4x PoE++, total 240W power budget (IFS-402GSM-4PU)
- 16x 10/100Base-TX RJ-45 + 8x100/1000Base-X SFP with 8x PoE+, total 240W power budget (IFS-1608GSM-8PH)
- 48VDC (44~57VDC) redundant dual input power
- Supports negative voltage power input with isolated RS-232 console port (for example in telecom system)
- Provides 8 port IEEE802.3af / 802.3at PoE+ output ,30W per port (IFS-1608GSM-8PH)
- Provides 4 port IEEE802.3af / 802.3at/802.3bt PoE++ output, 60W per port (IFS-402GSM-4PU)
- Advanced PoE Management, PoE PD Failure Auto Checking and auto reset when PD fail, PoE port on/off weekly scheduling, PoE configuration for power planning
- Rugged metal, IP30 protection & Fan-less design
- UL60950-1, CE, FCC, Rail Traffic EN50121-4, Traffic control NEMA TS2 certified
- Heavy Industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
- 2.25K VDC Hi-pot isolation protection for Ethernet ports and power
- Cable diagnostics, Measuring cable OK or broken point distance
- Supports Green Ethernet IEEE802.3az EEE (Energy Efficient Ethernet) management to optimize power consumption
- STP, RSTP, MSTP, ITΜ-T G.8032 Ethernet Ring Protection Switching (ERPS) for redundant cabling
- Provides 5 ring instances that each can support μ-Ring, μ-Chain or Sub-Ring type for flexible uses. Supports up to 5 rings in one device (Please see CTC μ-Ring white paper https://www.ctcu.com/download/White_Paper-u_Ring_Redundancy.pdf)
- μ-Ring for Redundant Cabling, recovery time<10ms in 250 devices
- DHCP Server/Client/Relay/Snooping/Snooping option 82/Relay option 82
- QoS, Traffic classification QoS, CoS, bandwidth control for Ingress and Egress, Storm Control, DiffServ
- IEEE802.1q VLAN, MAC based VLAN, IP subnet based VLAN, Protocol based VLAN, VLAN translation, GVRP, MVR
- Dynamic IEEE 802.3ad LACP Link Aggregation, Static Link Aggregation
- IGMP snooping V1/V2/V3, IGMP Filtering/ Throttling, IGMP query, IGMP proxy reporting, MLD snooping V1/V2
- Flexibility security: Port based and MAC based IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
- Software upgrade via TFTP and HTTP, redundant firmware to avoid upgrade failure
- Supports IEEE1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
- RMON, MIB II, Port mirroring, Event syslog, DNS, NTP, SNTP, IEEE802.1ab LLDP
- Supports IPv6 Telnet server /ICMP v6
- CLI, Web based management, SNMP v1/v2c/v3, Telnet server for management
- Provides SmartConfig for quick and easy mass configuration tool (https://www.ctcu.com/en/industrial-ethernet-management-software/smartconfig.html)
- Supports SmartView for centralized management tool (https://www.ctcu.com/en/industrial-ethernet-management-software/ems-smartview.html)
- Supporting Central EMS for management of up to 50 SmartView Server, and maximum up to 25,000 device tool (https://www.ctcu.com/en/industrial-ethernet-management-software/central-ems.html)
| Toplam Port Sayısı | : | 24 |
| Çalışma Sıcaklığı | : | -10/+60C |
| 10/100BaseT(X) | : | 16 |
| PoE Port | : | 8 |
| 100/1000Base SFP | : | 8 |
|
Specifications |
||||
|
Standard |
IEEE 802.3 |
10Base-T 10Mbit/s Ethernet |
||
|
IEEE 802.3u |
100Base-TX, 100Base-FX, Fast Ethernet |
|||
|
IEEE 802.3z |
1000Base-X Gbit/s Ethernet over Fiber-Optic |
|||
|
IEEE 802.3af |
PoE (Power over Ethernet) |
|||
|
IEEE 802.3at |
PoE+(Power over Ethernet enhancements) |
|||
|
IEEE 802.3bt |
PoE++(4 pairs Power over Ethernet) |
|||
|
IEEE 802.1d |
STP (Spanning Tree Protocol) |
|||
|
IEEE 802.1w |
RSTP (Rapid Spanning Tree Protocol ) |
|||
|
IEEE 802.1s |
MSTP (Multiple Spanning Tree Protocol) |
|||
|
ITΜ-T G.8032 / Y.1344 |
ERPS (Ethernet Ring Protection Switching) |
|||
|
IEEE 802.1Q |
Virtual LANs (VLAN) |
|||
|
IEEE 802.1X |
Port based and MAC based Network Access Control, Authentication |
|||
|
IEEE802.3ac |
Max frame size extended to 1522Bytes |
|||
|
IEEE 802.3ad |
Link aggregation for parallel links with LACP(Link Aggregation Control Protocol) |
|||
|
IEEE 802.3x |
Flow control for Full Duplex |
|||
|
IEEE 8 02.1ad |
Stacked VLANs, Q-in-Q |
|||
|
IEEE 8 02.1p |
LAN Layer 2 QoS/CoS Protocol for Traffic Prioritization |
|||
|
IEEE 8 02.1ab |
Link Layer Discovery Protocol (LLDP) |
|||
|
IEEE 802.3az |
EEE (Energy Efficient Ethernet) |
|||
|
Switch Architecture |
Back-plane (Switching Fabric): 4.8Gbps(IFS-402GSM-4PU) 19.2Gbps (IFS -16 0 8GSM - 8PH) Full wire-speed |
|||
|
Data Processing |
Store and Forward |
|||
|
Flow Control |
IEEE 802.3x for full duplex mode Back pressure for half duplex mode |
|||
|
Network Connector
|
4x 10/100Base-TX RJ-45 + 2x 100/1000Base-X SFP connector (IFS-402GSM-4PU) 16x 10/100Base-TX RJ-45 + 8x 100/1000Base-X SFP connector (IFS -16 0 8GSM - 8PH) RJ-45 UTP port support Auto negotiation speed, Auto MDI/MDI-X function, SFP port support 100/1000M dual speed with DDMI |
|||
|
PoE standard & RJ-45 pin assignment |
4x IEEE 802.3bt /802.3at/ 802.3af PoE++ (IFS-402GSM-4PU) 8x IEEE 802.3at /IEEE 802.3af PoE+ (IFS -16 0 8GSM - 8PH) End-Span, Alternative A mode. 4 pairs PoE, PoE++, 60W/port (IFS-402GSM-4PU) Positive (V+) : RJ-45 pin 1, 2, 4, 5 Negative (V-) : RJ-45 pin 3, 6, 7, 8 2 pairs PoE, PoE+, 30W/port (IFS -16 0 8GSM - 8PH) Positive (V+) : RJ-45 pin 1, 2. Negative (V-) : RJ-45 pin 3, 6. |
|||
|
Console |
R S -232 (R J - 45) Isolated RS-232 port grounding for negative voltage power system, or telecom network application |
|||
|
Network Cable
|
UTP/STP above Cat. 5e cable |
|||
|
EIA/TIA-568 100-ohm (100m) |
||||
|
Protocols |
CSMA/CD |
|||
|
Reverse Polarity Protection |
Supported for power input |
|||
|
Overload Current Protection |
Supported |
|||
|
CPU Watch Dog |
Supported |
|||
|
Power Supply |
IFS-402GSM-4PU, IFS-1608GSM-8PH: Redundant Dual DC 48V (44~57VDC) input power, and support negative voltage input power for telecom (Removable terminal block ) (50~57V input is recommended for IEEE802.3at PoE+ in 30W applications) (50~57V input is recommended for IEEE802.3bt PoE++ in 60W applications) |
|||
|
Power Consumption
|
Input Voltage |
Total Power Consumption |
Device Power Consumption |
PoE Budge |
|
48VDC |
254.2W |
14.2W |
240W |
|
|
IFS-402GSM-4PU: TBD |
||||
|
PoE Power Budget |
Maximum PoE Output power budget 30W / Per Port 240W (IFS -16 0 8GSM - 8PH) Maximum PoE Output power budget 60W / Per Port 240W (IFS-402GSM-4PU) |
|||
|
LED
|
Per unit: Power 1 (Green), Power 2 (Green), Fault (Amber), CPU Act (Green), Ring Master (Yellow) |
|||
|
Per RJ-45 port: 10/100 Link/Active (Green) |
||||
|
SFP Fiber Per port: Link/Active (Green) |
||||
|
PoE Port LED 1 LED /per Port : • PoE Output Power On : ON (Green) • PoE Fault (Over Load, Short Circuit,Port failed at Startup) : Flash 1times /sec (Green) • PoE Output Power Off : O
|
||||
|
Jumbo Frame |
9.6KB |
|||
|
IEEE802.3ac |
Max frame size extended to 1522Bytes (allow Q-tag in packet) |
|||
|
MAC Address Table |
8K |
|||
|
Memory Buffer |
512K Bytes for packet buffer |
|||
|
Warning Message
|
System Syslog, SMTP/ e-mail event message, alarm relay |
|||
|
Alarm Relay Contact |
Relay outputs with current carrying capacity of 1 A @24VDC |
|||
|
Removable Terminal Block |
Provide 2 redundant power, alarm relay contact, 6 Pin |
|||
|
Operating Temperature |
-10 ~ 60°C (IFS-402GSM-4PU, IFS-1608GSM-8PH) -40 ~ 75°C (IFS-402GSM-4PUE, IFS-1608GSM-8PHE) |
|||
|
Operating Humidity |
5% to 95% (Non-condensing) |
|||
|
Storage Temperature |
-40 ~ 85°C |
|||
|
Housing |
Rugged Metal, IP30 Protection, Fanless |
|||
|
Dimensions |
106 x 62.5 x 135 mm (D x W x H) (IGS-402GSM-4PHU) 106 x 72 x 152 mm (D x W x H) (IGS-1608GSM-8PH) |
|||
|
Weight |
1.375kg (IFS -16 0 8GSM - 8PH) TBD (IFS-402GSM-4PU) |
|||
|
Installation Mounting |
DIN Rail mounting or wall mounting (optional) |
|||
|
MTBF
|
439,881 Hours (IFS -16 0 8GSM - 8PH) TBD (IFS-402GSM-4PU) ( MIL- HDBK -217 ) |
|||
|
Warranty |
5 years |
|||
|
Certification |
||||
|
EMC |
CE |
|||
|
EMI (Electromagnetic Interference) |
FCC Part 15 Subpart B Class A,CE |
|||
|
Railway Traffic |
EN50121- 4 |
|||
|
Immunity for Heavy Industrial Environment |
EN61000-6-2 |
|||
|
Emission for Heavy Industrial |
EN61000-6-4 |
|||
|
EMS (Electromagnetic Susceptibility) Protection Level |
N61000-4-2 (ESD) Level 3, Criteria B EN61000-4-3 (RS) Level 3, Criteria A EN61000-4-4 (Burst) Level 3, Criteria A EN61000-4-5 (Surge) Level 3, Criteria B EN61000-4-6 (CS) Level 3, Criteria A EN61000-4-8 (PFMF, Magnetic Field) Field Strength: 300A/m, Criteria A |
|||
|
Safety |
UL60950-1 |
|||
|
Hi pot protection |
DC 2.25KV for power to chassis ground, Ethernet ports to chassis ground |
|||
|
Shock |
IEC 60068-2-27 |
|||
|
Freefall |
IEC 60068-2-32 |
|||
|
Vibration |
IEC 60068-2-6 |
|||
