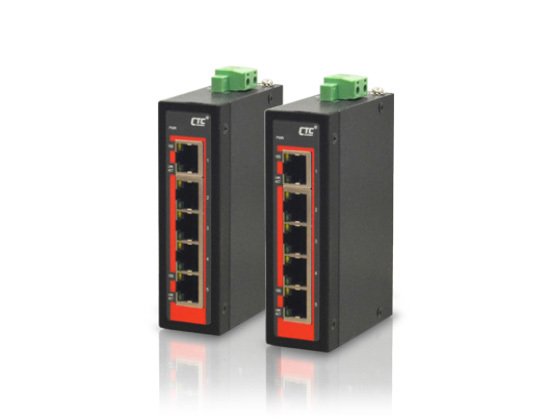

Standards

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX and 100Base-FX Fast Ethernet

IEEE 802.3x Flow Control and Back Pressure

Switch Architecture

Back-plane (Switching Fabric) : 1.0 Gbps

Full wire-speed

Data Processing

Store and Forward

Transfer Rate

14,880pps for Ethernet port

148,800pps for Fast Ethernet port

Flow Control

IEEE 802.3x flow control, back pressure flow control

MAC Address Table

1K

Packet Buffer Size

448Kbits

Network Connector

5x RJ-45

RJ-45 Port: Auto MDI/MDI-X function, 10/100Base-TX

auto negotiation speed, Full/Half duplex

Network Cable

10Base-T: 2-pair UTP/STP Cat. 5 cable

EIA/TIA-568 100-ohm (100m)

100Base-TX: 2-pair UTP/STP Cat. 5 cable

EIA/TIA-568 100-ohm (100m)

Protocols

CSMA/CD

LED

Per unit: Power (Green)

RJ-45 Per port: Link/Active (Green), Speed 100

( Yellow)

Reverse Polarity Protection

For DC input power protection

Overload Current Protection

Supported

Power Supply

DC 12/24/48V (9.6~60VDC) or AC 24V (18~36VAC)

input power (Removable Terminal Block)

Power Consumption

Input Voltage

Power Consumption(Watt)

DC 12V

0.9W

DC 24V

1.2W

DC 48V

2W

Removable Terminal Block

Provides for input power (2 Pin)

Operating Temperature

-10 ~ 60°C (IFS-500C)

-40 ~ 75°C ( I F S - 5 0 0 C- E

Operating Humidity

5% to 95% (Non-condensing)

Storage Temperature

-40 ~ 85°C

Housing

Rugged Metal, IP30 Protection, Fanless

Dimensions

70 x 30 x 103 mm (D x W x H)

Weight

220g

Installation Mounting

DIN Rail mounting, or wall mounting (Optional)

MTBF

1,738,327 Hours

( M I L- H D B K -217 )

Warranty

5 years

Certification

EMC/EMS

CE

EMI

(Electromagnetic

Interference)

FCC Part 15 Subpart B Class A, CE

Railway Traffic

EN50121- 4

Immunity for

Heavy Industrial

Environment

EN61000-6-2

Emission for

Heavy Industrial

Environment

EN61000-6-4

EMS

(Electromagnetic

Susceptibility)

Protection Level

EN61000-4-2 (ESD) Level 3, Criteria B

EN61000-4-3 (RS) Level 3, Criteria A

EN61000-4-4 (Burst) Level 3, Criteria A

EN61000-4-5 (Surge) Level 3, Criteria B

EN61000-4-6 (CS) Level 3, Criteria A

EN61000-4-8 (PFMF, Magnetic Field) Field Strength:

300A/m, Criteria A

Shock
