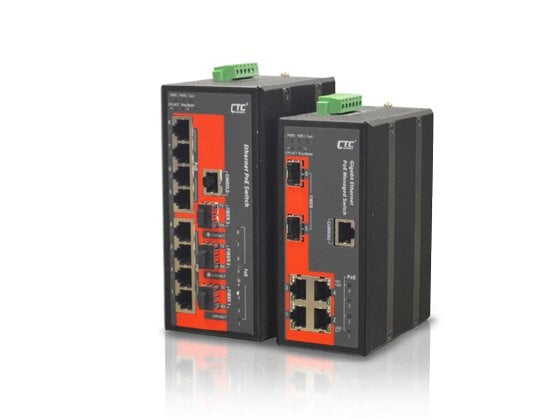

IFS-803GSM-8PHE24
Industrial manged 8x10/100MbpsTX + 3x100/1000Mbps SFP, with 8 x PoE+ (30W), 180W, , dual 24/48VDC power input, -40~75oC
Bu seri, 4/8 10/100Base-TX PoE port ve 2/3 Gigabit/ Fast SFP port içeren yönetilebilir PoE endüstriyel PoE anahtar serisidir. Çift güç girişi tasarımı ile kritik uygulamalrda iletişim sürekliliği sağlamaktadır. DIN rail ve duvar montaj opsiyonlu olan bu anahtarlar endüstriyel uygulamalar, akıllı ulaşım sistemleri (ITS) dışında askeri uygulamalar gibi zorlu ortamlar için de uygundur.
Bu seriler, STP/RSTP/MSTP/ ITU-T G.8032 ERPS, multiple u-Ring, auto-checking, auto-reset gibi gelişmiş PoE yönetim fonksiyonlarını destekler. Aynı zamanda layer 2 Ethernet IGMP, VLAN, QoS, ACL, Security, IPv6, bandwidth control, port mirroring, cable diagnostics ve Green Ethernet desteği mevcuttur.
Bu seri ürünler, ağ yöneticilerine merkezden cihazları gözlemleyebilecekleri ve yönetebilecekleri CTC Union’un "SmartView™” (https://www.ctcu.com/en/industrial-ethernet-management-software/ems-smartview.html) merkezi yönetim sistemini de desteklemektedir.
- 4x 10/100Base-TX RJ-45+ 2x 100/1000Base-X SFP with 4x PoE+, total 120W power budget (IFS-402GSM-4PH24)
- 8x 10/100Base-TX RJ-45+ 3x 100/1000Base-X SFP with 8x PoE+, total 180W power budget (IFS-803GSM-8PH24)
- 24/48VDC (20~57VDC) redundant dual input power with built-in very high efficiency booster (94~97%) to rise up 55 VDC for PoE output (Figure 2)
- Regulated PoE output voltage (55VDC) to stabilize PoE device, and guarantee delivery PoE power distance to 100meter (Figure 2)
- Provides 4/8 port IEEE802.3af / 802.3at PoE output (30W per Port)
- Advanced PoE Management, PoE PD Failure Auto Checking and auto reset when PD fail, PoE port on/off weekly scheduling, PoE configuration for power planning
- Rugged Metal, IP30 Protection & Fanless design
- UL60950-1, CE, FCC, Rail Traffic EN50121-4, Traffic control NEMA TS2 certified
- Heavy industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
- Cable diagnostics, Measuring cable OK or broken point distance
- Supports Green Ethernet IEEE802.3az EEE (Energy Efficient Ethernet) management to optimize power consumption
- STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) for redundant cabling
- Provides 5 ring instances that each can support u-Ring, u-Chain or Sub-Ring type for flexible uses. Supports up to 5 rings in one device (Please see CTC Union u-Ring white paper https://www.ctcu.com/download/White_Paper-u_Ring_Redundancy.pdf)
- u-Ring for Redundant Cabling, recovery time<10ms in 250 devices
- DHCP Server/Client/Relay/Snooping/Snooping option 82/Relay option 82
- QoS, Traffic classification QoS, CoS, bandwidth control for Ingress and Egress, Storm Control, DiffServ
- IEEE802.1q VLAN, MAC based VLAN, IP subnet based VLAN, Protocol based VLAN, VLAN translation, GVRP, MVR
- Dynamic IEEE 802.3ad LACP Link Aggregation, Static Link Aggregation
- IGMP snooping V1/V2/V3, IGMP Filtering/ Throttling, IGMP query, IGMP proxy reporting, MLD snooping V1/V2
- Flexibility security: Port based and MAC based IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
- Software upgrade via TFTP and HTTP, redundant firmware to avoid upgrade failure
- Supports IEEE1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
- RMON, MIB II, Port mirroring, Event syslog, DNS, NTP, SNTP, IEEE802.1ab LLDP
- Supports IPv6 Telnet server /ICMP v6
- CLI, Web based management, SNMP v1/v2c/v3, Telnet server for management
- Provides SmartConfig for quick and easy mass configuration tool (https://www.ctcu.com/en/industrial-ethernet-management-software/smartconfig.html)
- Supports SmartView for centralized management tool (https://www.ctcu.com/en/industrial-ethernet-management-software/ems-smartview.html)
- Supporting Central EMS for management of up to 50 SmartView Server, and maximum up to 25,000 device tool (https://www.ctcu.com/en/industrial-ethernet-management-software/central-ems.html)
| Toplam Port Sayısı | : | 11 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100BaseT(X) | : | 8 |
| PoE Port | : | 8 |
| 100/1000Base SFP | : | 3 |
|
Specifications |
||||||
|
Standard
|
IEEE 802.3 |
10Base-T 10Mbit/s Ethernet |
||||
|
IEEE 802.3 u |
100Base-TX, 100Base-FX, Fast Ethernet |
|||||
|
IEEE 802.3 z |
1000Base-X Gbit/s Ethernet over Fiber-Optic |
|||||
|
IEEE 802.3af |
PoE (Power over Ethernet) |
|||||
|
IEEE 802.3at |
PoE+(Power over Ethernet enhancements) |
|||||
|
IEEE 802.1d |
STP (Spanning Tree Protocol) |
|||||
|
IEEE 802.1w |
RSTP (Rapid Spanning Tree Protocol ) |
|||||
|
IEEE 802.1s |
MSTP (Multiple Spanning Tree Protocol) |
|||||
|
ITU-T G.8032 / Y.13444 |
ERPS (Ethernet Ring Protection Switching) |
|||||
|
IEEE 802.1Q |
Virtual LANs (VLAN) |
|||||
|
IEEE 802.1X |
Port based and MAC based Network Access Control, Authentication |
|||||
|
IEEE802.3ac |
Max frame size extended to 1522Bytes |
|||||
|
IEEE 802.3ad |
Link aggregation for parallel links with LACP(Link Aggregation Control Protocol) |
|||||
|
IEEE 802.3x |
Flow control for Full Duplex |
|||||
|
IEEE 8 02.1ad |
Stacked VLANs, Q-in-Q |
|||||
|
IEEE 8 02.1p |
LAN Layer 2 QoS/CoS Protocol for Traffic Prioritization |
|||||
|
IEEE 8 02.1ab |
Link Layer Discovery Protocol (LLDP) |
|||||
|
IEEE 802.3az |
EEE (Energy Efficient Ethernet) |
|||||
|
Switch Architecture |
Back-plane (Switching Fabric): 4.8Gbps (IFS-402GSM-4PH24) 7.6Gbps (IFS-803GSM-8PH24) Full wire-speed |
|||||
|
Data Processing |
Store and Forward |
|||||
|
Flow Control |
IEEE 802.3x for full duplex mode Back pressure for half duplex mode |
|||||
|
Network Connector
|
4x 10/100Base-TX RJ-45 + 2x 100/1000Base-X SFP connector (IFS-402GSM-4PH24) 8x 10/100Base-TX RJ-45 + 3x 100/1000Base-X SFP connector (IFS-803GSM-8PH24) RJ-45 UTP port support Auto negotiation speed, Auto MDI/MDI-X function, SFP port support 100/1000 dual speed with DDMI |
|||||
|
PoE Standard & RJ45 Pin Assignment
|
4x IEEE 802.3af /IEEE 802.3at PoE+ (IFS-402GSM-4PH24) 8x IEEE 802.3af /IEEE 802.3at PoE+ (IFS-803GSM-8PH24) End-Span, Alternative A mode. Positive (V+) : RJ-45 pin 1, 2. Negative (V-) : RJ-45 pin 3, 6. Data (1, 2, 3, 6) |
|||||
|
Console |
R S -232 (R J - 45) |
|||||
|
Network Cable |
UTP/STP above Cat. 5e cable EIA/TIA-568 100-ohm (100m) |
|||||
|
Protocols |
CSMA/CD |
|||||
|
Reverse Polarity Protection |
Supported for power input |
|||||
|
Overload Current Protection |
Supported |
|||||
|
CPU Watch Dog |
Supported |
|||||
|
Power Supply
|
Redundant Dual DC 24/48V (20~57VDC) Input power (Removable Terminal Block) Built-in very high efficiency booster(94~97%) to rise up 55 VDC for PoE output Regulated PoE output voltage (55VDC) to stabilize PoE device, and guarantee delivery PoE power distance to 100meter (Figure 2) |
|||||
|
Power Consumption |
Input Voltage |
Total Power Consumption |
Device Power Consumption |
PoE Budget |
Boost Efficiency |
|
|
24VDC |
134.8W |
7.1W |
120W |
94% |
||
|
48VDC |
132.2W |
8.5W |
120W |
97.2% |
||
|
|
||||||
|
Input Voltage |
Total Power Consumption |
Device Power Consumption |
PoE Budget |
Boost Efficiency |
||
|
24VDC |
198.3W |
7.3W |
180W |
94% |
||
|
48VDC |
193.2W |
7.9W |
180W |
97% |
||
|
PoE Power Budget
|
Maximum PoE Output power budget 30W / Per Port 120W (IFS-402GSM-4PH24) 180W (IFS-803GSM-8PH24) |
|||||
|
LED |
Per unit: Power 1 (Green), Power 2 (Green), Fault (Amber), CPU Act (Green), Ring Master (Yellow) Per RJ-45 port: 10/100 Link/Active (Green) |
|||||
|
SFP Fiber Per port: Link/Active (Green) |
||||||
|
PoE Port LED 1 LED /per Port : • PoE Output Power On : ON (Green) • PoE Fault (Over Load, Short Circuit,Port failed at Startup) : Flash 1times /sec (Green) • PoE Output Power Off : Of |
||||||
|
Jumbo Frame |
9.6KB |
|||||
|
IEEE802.3ac |
Max frame size extended to 1522Bytes (allow Q-tag in packet) |
|||||
|
MAC Address Table |
8K |
|||||
|
Memory Buffer |
512K Bytes for packet buffer |
|||||
|
Warning Message |
System Syslog, SMTP/ e-mail event message, alarm relay |
|||||
|
Alarm Relay Contact |
Relay outputs with current carrying capacity of 1 A @24VDC |
|||||
|
Removable Terminal Block |
Provide 2 redundant power, alarm relay contact, 6 Pin |
|||||
|
Operating Temperature |
-10 ~ 60°C (IFS-402GSM-4PH24, IFS-803GSM-8PH24) -40 ~ 75°C (IFS-402GSM-4PHE24, IFS-803GSM-8PHE24) |
|||||
|
Operating Humidity |
5% to 95% (Non-condensing) |
|||||
|
Storage Temperature |
-40 ~ 85°C |
|||||
|
Housing |
Rugged Metal, IP30 Protection, Fanless |
|||||
|
Dimensions |
106 x 62.5 x 135 mm (D x W x H) (IFS-402GSM-4PH24) 106 x 72 x 152 mm (D x W x H) (IFS-803GSM-8PH24) |
|||||
|
Weight |
0.715kg (IFS-402GSM-4PH24) 0.96kg (IFS-803GSM-8PH24) |
|||||
|
Installation Mounting |
DIN Rail mounting, or wall mounting (Optional) |
|||||
|
MTBF |
674,963 Hours (IFS-402GSM-4PH24) 466,542 Hours (IFS-803GSM-8PH24) ( M I L- H D B K -217 ) |
|||||
|
Warranty |
5 years |
|||||
|
Certification |
||||||
|
EMC |
CE |
|||||
|
EMI (Electromagnetic Interference) |
FCC Part 15 Subpart B Class A, CE |
|||||
|
Railway Traffic |
EN50121- 4 |
|||||
|
Traffic control |
NEMA TS2 |
|||||
|
Immunity for Heavy Industrial Environment |
EN61000-6-2 |
|||||
|
Emission for Heavy Industrial Environment |
EN61000-6-4 |
|||||
|
EMS (Electromagnetic Susceptibility) Protection Level |
EN61000-4-2 (ESD) Level 3, Criteria B EN61000-4-3 (RS) Level 3, Criteria A EN61000-4-4 (Burst) Level 3, Criteria A EN61000-4-5 (Surge) Level 3, Criteria B EN61000-4-6 (CS) Level 3, Criteria A EN61000-4-8 (PFMF, Magnetic Field) Field Strength: 300A/m, Criteria A |
|||||
|
Safety |
UL60950-1 |
|||||
|
Shock |
IEC 60068 -2-27 |
|||||
|
Freefall |
IEC 60068 -2-32 |
|||||
|
Vibration |
IEC 60068 -2-6 |
|||||
