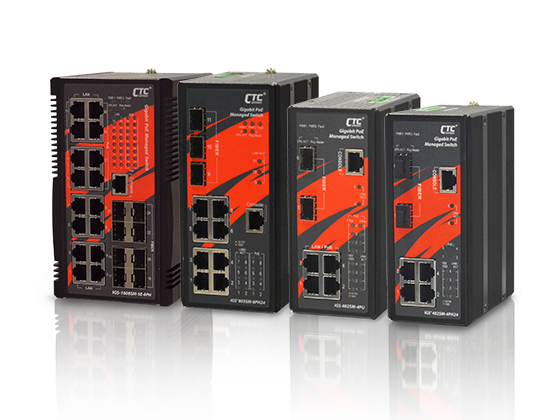

IGS-1608SM-8PH

Industrial manged 16x10/100/1000MbpsTX + 8x100/1000Mbps SFP, with 8 x PoE+ (30W), 240W, , dual 48/-48VDC power input, -10~60oC

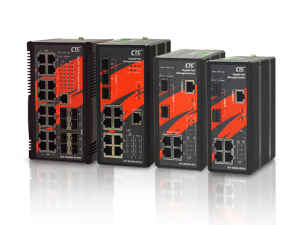

Bu seri, 4/8/16x GbE UTP + 2/3/8 GbE SFP (4/8x PoE Port’lu) içeren yönetilebilir Gigabit PoE endüstriyel anahtar serisidir. Çift güç girişi tasarımı ile kritik uygulamalrda iletişim sürekliliği sağlamaktadır. DIN rail ve duvar montaj opsiyonlu olan bu anahtarlar endüstriyel uygulamalar, telekom uygulamaları, akıllı ulaşım sistemleri (ITS) dışında askeri uygulamalar gibi zorlu ortamlar için de uygundur.



Bu seriler, STP/RSTP/MSTP/ ITU-T G.8032 ERPS, multiple u-Ring, auto-checking, auto-reset gibi gelişmiş PoE yönetim fonksiyonlarını destekler. Aynı zamanda layer 2 Ethernet IGMP, VLAN, QoS,  Security, IPv6, bandwidth control, port mirroring, cable diagnostics ve Green Ethernet desteği mevcuttur.

Bu seri ürünler, ağ yöneticilerine merkezden cihazları gözlemleyebilecekleri ve yönetebilecekleri CTC Union’un "SmartView™” (https://www.ctcu.com/en/industrial-ethernet-management-software/ems-smartview.html) merkezi yönetim sistemini de desteklemektedir.



  • 4x 10/100/1000Base-T RJ-45+ 2x 100/1000Base-X SFP with 4x PoE+, total 120W power budget (IGS+402SM-4PH24)
  • 4x10/100/1000Base-T RJ-45 + 2x 100/1000Base-X SFP with 4x PoE++, total 240W power budget (IGS-402SM-4PU)
  • 8x10/100/1000Base-T RJ-45+ 3x100/1000Base-X SFP with 8xPoE+, total 180W power budget (IGS+803SM-8PH24)
  • 16x10/100/1000Base-T RJ-45+ 8x100/1000Base-X SFP with 8x PoE+, total 240W power budget (IGS-1608SM-8PH)
  • 48VDC (44~57VDC) redundant dual input power (IGS-402SM-4PU, IGS-1608SM-8PH)
  • 24/48VDC (20~57VDC) redundant dual input power with built-in very high efficiency booster (94~97%) to rise up 55 VDC for PoE output (Figure 2) (IGS+402SM-4PH24, IGS+803SM-8PH24)
  • Supports negative voltage power input with isolated RS-232 console port (for example in telecom system)
  • Regulated PoE output voltage (55VDC) to stabilize PoE device, and guarantee delivery PoE power distance to 100meter (Figure 2) (IGS+402SM-4PH24, IGS+803SM-8PH24)
  • Provides 4/8 port IEEE802.3af / 802.3at PoE+ output ,30W per port (IGS+402SM-4PH24, IGS+803SM-8PH24, IGS-1608SM-8PH)
  • Provides 4 port IEEE802.3af / 802.3at/802.3bt PoE++ output, 60W per port (IGS-402SM-4PU)
  • Advanced PoE Management, PoE PD Failure Auto Checking and auto reset when PD fail, PoE port on/off weekly scheduling, PoE configuration for power planning
  • Rugged metal, IP30 protection & Fan-less design
  • UL60950-1, CE, FCC, Rail Traffic EN50121-4, Traffic control NEMA TS2 certified
  • Heavy Industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
  • 2.25K VDC Hi-pot isolation protection for Ethernet ports and power
  • Cable diagnostics, Measuring cable OK or broken point distance
  • Supports Green Ethernet IEEE802.3az EEE (Energy Efficient Ethernet) management to optimize power consumption
  • STP, RSTP, MSTP, ITΜ-T G.8032 Ethernet Ring Protection Switching (ERPS) for redundant cabling
  • Provides 5 ring instances that each can support μ-Ring, μ-Chain or Sub-Ring type for flexible uses. Supports up to 5 rings in one device (Please see CTC μ-Ring white paper https://www.ctcu.com/download/White_Paper-u_Ring_Redundancy.pdf)
  • μ-Ring for Redundant Cabling, recovery time<10ms in 250 devices
  • DHCP Server/Client/Relay/Snooping/Snooping option 82/Relay option 82
  • QoS, Traffic classification QoS, CoS, bandwidth control for Ingress and Egress, Storm Control, DiffServ
  • IEEE802.1q VLAN, MAC based VLAN, IP subnet based VLAN, Protocol based VLAN, VLAN translation, GVRP, MVR
  • Dynamic IEEE 802.3ad LACP Link Aggregation, Static Link Aggregation
  • IGMP snooping V1/V2/V3, IGMP Filtering/ Throttling, IGMP query, IGMP proxy reporting, MLD snooping V1/V2
  • Flexibility security: Port based and MAC based IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
  • Software upgrade via TFTP and HTTP, redundant firmware to avoid upgrade failure
  • Supports IEEE1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
  • RMON, MIB II, Port mirroring, Event syslog, DNS, NTP, SNTP, IEEE802.1ab LLDP
  • Supports IPv6 Telnet server /ICMP v6
  • CLI, Web based management, SNMP v1/v2c/v3, Telnet server for management
  • Provides SmartConfig for quick and easy mass configuration tool (https://www.ctcu.com/en/industrial-ethernet-management-software/smartconfig.html)
  • Supports SmartView for centralized management tool (https://www.ctcu.com/en/industrial-ethernet-management-software/ems-smartview.html)
  • Supporting Central EMS for management of up to 50 SmartView Server, and maximum up to 25,000 device tool (https://www.ctcu.com/en/industrial-ethernet-management-software/central-ems.html)

Toplam Port Sayısı : 24
Çalışma Sıcaklığı : -10/+60C
10/100/1000BaseT(X) : 16
PoE Port : 8
100/1000Base SFP : 8


Specifications

Standard

IEEE 802.3

10Base-T 10Mbit/s Ethernet

IEEE 802.3u

100Base-TX, 100Base-FX, Fast Ethernet

IEEE 802.3ab

1000Base-T Gbit/s Ethernet over twisted pair

IEEE 802.3z

1000Base-X Gbit/s Ethernet over

Fiber-Optic

IEEE 802.3af

PoE (Power over Ethernet)

IEEE 802.3at

PoE+(Power over Ethernet enhancements)

IEEE 802.3bt

PoE++(4 pairs Power over Ethernet)

IEEE 802.1d

STP (Spanning Tree Protocol)

IEEE 802.1sw

RSTP (Rapid Spanning Tree Protocol )

IEEE 802.1s

MSTP (Multiple Spanning Tree Protocol)

ITΜ-T G.8032 /

Y.1344

ERPS (Ethernet Ring Protection

Switching)

IEEE 802.1Q

Virtual LANs (VLAN)

IEEE 802.1X

Port based and MAC based Network

Access Control, Authentication

IEEE802.3ac

Max frame size extended to 1522Bytes

IEEE 802.3ad

Link aggregation for parallel links with

LACP(Link Aggregation Control Protocol)

IEEE 802.3x

Flow control for Full Duplex

IEEE 8 02.1ad

Stacked VLANs, Q-in-Q

IEEE 8 02.1p

LAN Layer 2 QoS/CoS Protocol for

Traffic Prioritization

IEEE 8 02.1ab

Link Layer Discovery Protocol (LLDP)

IEEE 802.3az

EEE (Energy Efficient Ethernet)

Switch

Architecture

Back-plane (Switching Fabric):

12Gbps (IGS+402SM-4PH24, IGS-402SM-4PU)

22Gbps (IGS+803SM-8PH24)

48Gbps (IGS-1608SM-8PH)

Full wire-speed

Data Processing

Store and Forward

Flow Control

IEEE 802.3x for full duplex mode Back pressure for

half duplex mode

Network

Connector



4x 10/100/1000Base-T RJ-45 + 2x 100/1000Base-X SFP

connector (IGS+402SM-4PH24, IGS-402SM-4PU)

8x 10/100/1000Base-T RJ-45 + 3x 100/1000Base-X SFP

connector (IGS+803SM-8PH24)

16x 10/100/1000Base-T RJ-45 + 8x 100/1000Base-X

SFP connector (IGS-1608SM-8PH)

RJ-45 UTP port support Auto negotiation speed,

Auto MDI/MDI-X function,

SFP port support 100/1000 dual speed with DDMI

Console

R S -232 (R J - 45)

Isolated RS-232 port grounding for negative voltage

power system, or telecom network application

PoE standard & RJ-45 pin

assignment

4x IEEE802.3at /802.3af PoE+ (IGS+402SM-4PH24)

4x IEEE 802.3bt /802.3at/ 802.3af PoE++(IGS-402SM-4PU)

8x IEEE 802.3at /IEEE 802.3af PoE+ (IGS+803SM-8PH24, IGS-1608SM-8PH)

End-Span, Alternative A mode.

2 pairs PoE, PoE+: (IGS+402SM-4PH24, IGS+803SM-8PH24, IGS-608SM-8PH)

Positive (V+) : RJ-45 pin 1, 2.

Negative (V-) : RJ-45 pin 3, 6.

4 pairs PoE, PoE++(IGS-402SM-4PU)

Positive (V+) : RJ-45 pin 1, 2, 4, 5

Negative (V-) : RJ-45 pin 3, 6, 7, 8

Data (1,2,3,6,4,5,7,8

Network Cable



UTP/STP above Cat. 5e cable

EIA/TIA-568 100-ohm (100m)

EIA/TIA-568 100-ohm (100m)

Protocols

CSMA/CD

Reverse Polarity Protection

Supported for power input

Overload Current

Protection

Supported

CPU Watch Dog

Supported

Power Supply

IGS-402SM-4PU, IGS-1608SM-8PH:

Redundant Dual DC 48V (44~57VDC) input

power, and support negative voltage input power

for telecom (Removable terminal block )

(50~57V input is recommended for IEEE802.3at PoE+

in 30W applications)

(50~57V input is recommended for IEEE802.3bt

PoE++ in 60W applications)

Power Supply

IGS+402SM-4PH24, IGS+803SM-8PH24:

Redundant Dual DC 24/48V (20~57VDC) input

power, and support negative voltage input power

for telecom network (Removable Terminal Block)

Built-in very high efficiency booster(94~97%) to rise

up 55 VDC for PoE output

Regulated PoE output voltage (55VDC) to stabilize

PoE device, and guarantee delivery PoE power

distance to 100meter (Figure 2



Power

Consumption



Input

Voltage

Total Power

Consumption

Device Power

Consumption

PoE

Budget

Boost

Efficiency

24VDC

132W

7.2W

120W

96%

48VDC

133.4W

7.2W

120W

95%

IGS-1608SM-8PH Power consumption

Input

Voltage

Total Power

Consumption

Device Power

Consumption

PoE Budget



48VDC

255.2W

15.2W

240W

IGS-402SM-4PU: TBD IGS+803SM-8PH24: TBD

PoE Power Budget

Maximum PoE Output power budget 30W / Per Port

120W (IGS+402SM-4PH24)

180W (IGS+803SM-8PH24)
