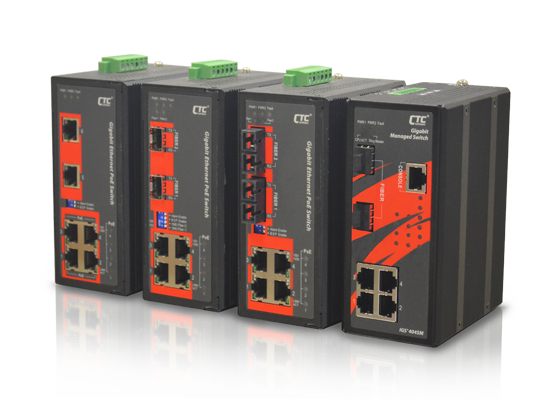

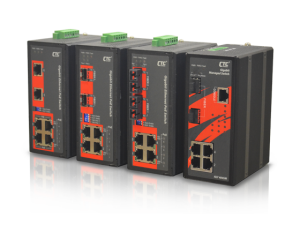

IGS-402F-4PHE24-SC040

Specifications

IEEE Standard

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX Fast Ethernet

IEEE 802.3ab 1000Base-T Gigabit Ethernet

IEEE 802.3z 1000Base-X Gigabit Ethernet

IEEE 802.3x Flow Control and Back Pressure

IEEE 802.3af PoE (Power over Ethernet)

IEEE 802.3at PoE +(Power over Ethernet

enhancements)

IEEE 802.3bt PoE++(4 pairs Power over Ethernet)

Switch

Architecture

Back-plane (Switching Fabric):

12Gbps

Full wire-speed

Data Processing

Store and Forward

Flow Control

IEEE 802.3x flow control, back pressure flow control

Provides Broadcast

Storm Protection

Enable / Disable set by DIP SW

Jumbo Frame

10K Bytes

MAC Address Table

8K

Packet Buffer Size

1Mbit s

PoE standard &

RJ-45 Pin

Assignment

IGS-402S-4PU:

4x IEEE 802.3bt/at/af PoE++

4 pairs PoE, PoE++

Positive (V+) : RJ-45 pin 1, 2, 4, 5

Negative (V-) : RJ-45 pin 3, 6, 7, 8

Data (1,2,3,6,4,5,7,8)

IGS-402S-4PH24, IGS-402F-4PH24,

IGS-600-4PH24:

4x IEEE 802.3at/af PoE+

2 pairs PoE, PoE+

Positive (V+) : RJ-45 pin 1, 2.

Negative (V-) : RJ-45 pin 3, 6.

Data (1,2,3,6,4,5,7,8)

Network Connector

4 x RJ-45

(IGS-402S-4PU, IGS-402S-4PH24, IGS-402F-4PH24)

6 x RJ-45

(IGS-600-4PH24)

10/100/1000Base-T auto negotiation speed, Auto

MDI/MDI-X function, Full/Half duplex

2x 100/1000Base-X SFP

(IGS-402S-4PU, IGS-402S-4PH24)

2x1000Base-X Fiber connector: SC Muti Mode or

Single Mode

(IGS-402F-4PH24)

Network Cable

UTP/STP above Cat. 5e cable

EIA/TIA-568 100-ohm (100m)

Fiber Cable (Multi-mode): 50/125um, 62.5/125um

Fiber Cable (Single-mode): 9/125um

Protocols

CSMA/CD

LED

Per unit: Power 1 (Green), Power 2 (Green), Fault

(Amber)

Fiber Per port: Link/Active (Green)

Per Port PoE LED

• Active : ON

• Inactive : OFF

• Fault : Flash

(Fault: Over Load, Short Circuit, Port failed at Startup)

DIP SW

DIP 1

ON : Disable power failure alarm

OFF : Enable power failure alarm

DIP 2

ON : Disables broadcast storm protection

OFF : Enable broadcast storm protection

DIP 3

ON : Fiber 2 for 100Base-FX SFP

OFF : Fiber 2 for Gigabit SFP

(for IGS-402S-4PU, IGS-402S-4PH24)

DIP 4

ON : Fiber 1 for 100Base-FX SFP

OFF : Fiber 1 for Gigabit SFP

(for IGS-402S-4PU, IGS-402S-4PH24)

Reverse Polarity

Protection

Supported for Power Input

Overload Current

Protection

Supported

Power Supply

IGS-402S-4PU:

Redundant Dual DC 48V (44~57VDC) input

power (Removable terminal block )

(50~57V input is recommended for IEEE802.3at PoE+

in 30W applications)

(50~57V input is recommended for IEEE802.3bt

PoE++ in 60W applications)

IGS-402S-4PH24, IGS-402F-4PH24,

IGS-600-4PH24:

Redundant Dual DC 24/48V (20~57VDC) input

power (Removable Terminal Block)

Built-in very high efficiency booster(94~97%) to rise

up 55 VDC for PoE output

Regulated PoE output voltage (55VDC) to stabilize

PoE device, and guarantee delivery PoE power

distance to 100meter (Figure 2)

Power Consumption

Input

Voltage

IGS-402S-

4PH24

IGS-402S-

4PH24

IGS-600-

4PH24

24VDC

143.3W

143.2W

142.9W

48VDC

138.2W

138.2W

139.6W

(Include full load 120W PoE output ) TBD IGS-402S-4PU

PoE Power Budget

Maximum PoE Output power budget 240W,

60W/

per port

(IGS-402S-4PU)

Maximum PoE Output power budget 120W, 30W/

per port

(IGS-402S-4PH24, IGS-402F-4PH24, IGS-600-4PH24)

Alarm Relay Contact

Relay outputs with current carrying capacity of 1A

@24VDC

Removable Terminal

Block

Provides 2 Redundant power, Alarm relay contact, 6

Pin

Operating

Temperature

-10 ~ 60°C (IGS-402S-4PU, IGS-402S-4PH24, IGS-

402F-4PH24, IGS-600-4PH24)

-40 ~ 75°C (IGS-402S-4PUE, IGS-402S-4PHE24,

IGS-402F-4PHE24, IGS-600-4PHE24)

Operating Humidity

5% to 95% (Non-condensing)

Dimensions

106 x 62.5 x 134.8mm (D X W X H)

(IGS-402S-4PH24, IGS-402F-4PH24, IGS-600-4PH24)

TBD (IGS-402S-4PU)

Weight

0.84kg (IGS-402S-4PH24)

0.68kg (IGS-402F-4PH24)

0.84kg (IGS-600-4PH24)

TBD (IGS-402S-4PU)

Installation

Mounting

DIN Rail mounting, or wall mounting

(Optional accessories)

MTBF

736,988 Hours @25°C (IGS-402S-4PH24)

635,099 Hours @25°C (IGS-402F-4PH24)

649,579 Hours @25°C (IGS-600-4PH24)

TBD

(IGS-402S-4PU)

( MIL- HDBK -217 )

Certification

EMC

CE

EMI

(Electromagnetic

Interference)

FCC Part 15 Subpart B Class A, CE EN55022 Class A

Railway Traffic

EN50121- 4

Immunity for Heavy

Industrial

Environment

EN61000-6-2

Emission for Heavy

Industrial

Environment

EN61000-6-4

EMS

(Electromagnetic

Susceptibility)

Protection Level

EN61000-4-2 (ESD) Level 3, Criteria B

EN61000-4-3 (RS) Level 3, Criteria A

EN61000-4-4 (Burst) Level 3, Criteria A

EN61000-4-5 (Surge) Level 3, Criteria B

EN61000-4-6 (CS) Level 3, Criteria A

EN61000-4-8 (PFMF, Magnetic Field) Field Strength:

300A/m, Criteria A

Safety

UL60950-1

Shock

IEC 60068 -2-27

Freefall

IEC 60068 -2-32

Vibration

IEC 60068 -2-6
