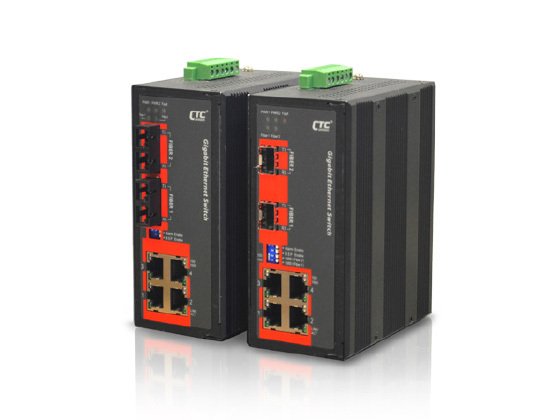

IGS-402F-E-SC001
Industrial 4x10/100/1000MbpsTX (RJ45) + 2x1000Base-X SC 500m 850nm 8dB MM,dual 12/24/48VDC power input,-10/75oC
IGS-402 serisi, 4adet 10/100/1000Base-T port ve 2adet fiber port içeren yönetilemez endüstriyel gigabit anahtar serisidir. DIN rail ve duvar montaj opsiyonlu olan bu anahtarlar endüstriyel uygulamalar, akıllı ulaşım sistemleri (ITS) dışında askeri uygulamalar gibi zorlu ortamlar için de uygundur.
- 4x 10/100/1000Base-T RJ45 + 2x 1000Base-SX/LX Fiber (IGS-402F)
- 4x 10/100/1000Base-T RJ45 + 2x 100/1000Base-X SFP (IGS-402S)
- 12/24/48VDC yedekli çift besleme
- Endüstriyel çalışma sıcaklığı -40 ~ 75°C ("-E" versiyonu)
- Güç arızası durumunda röle ile alarm mesajı desteği
- Fansız IP30 metal muhafaza
- UL60950-1, CE, FCC, EN50121-4 sertifikalı
| Toplam Port Sayısı | : | 6 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100/1000BaseT(X) | : | 4 |
| 1000Base SFP | : | 2 |
|
|
|
|
|
Standards |
IEEE 802.3 10Base-T Ethernet |
|
|
IEEE 802.3u 100Base-TX, 100Base-FX, Fast Ethernet |
||
|
IEEE 802.3ab 1000Base-T Gbit/s Ethernet over twisted pair |
||
|
IEEE 802.3z 1000Base-X Gbit/s Ethernet over Fiber-Optic |
||
|
IEEE 802.3x Flow Control and Back Pressure |
||
|
Switch Architecture |
Back-plane (Switching Fabric): 12Gbps |
|
|
(IGS-402S, IGS-402F) |
||
|
Full wire-speed |
||
|
Data Processing |
Store and Forward |
|
|
Flow Control |
IEEE 802.3x flow control, back pressure flow control |
|
|
Provides Broadcast Storm Protection |
Present, Enable / Disable set by DIP SW |
|
|
Jumbo Frame |
10K Bytes |
|
|
MAC Address Table |
8K |
|
|
Packet Buffer Size |
1Mbits |
|
|
Network Connector |
4 x RJ-45 |
|
|
10/100/1000Base-TX auto negotiation speed, Auto |
||
|
2 1000Base-X Fiber SC connector (IGS-402F) |
||
|
Network Cable |
UTP/STP above Cat. 5e cable |
|
|
EIA/TIA-568 100-ohm (100m) |
||
|
Fiber Cable (Multi-mode): 50/125um, 62.5/125um |
||
|
Fiber Cable (Single-mode): 9/125um |
||
|
Protocols |
CSMA/CD |
|
|
LED |
Per unit: Power 1 (Green), Power 2 (Green), Fault (Amber) |
|
|
Per RJ-45 port : Link/Active (Green), Speed 10 (OFF), |
||
|
100 (Green), 1000 (Yellow) |
||
|
Fiber Per port: Link/Active (Green) |
||
|
DIP SW |
DIP 1 |
ON : Disable power failure alarm |
|
OFF : Enable power failure alarm |
||
|
DIP 2 |
ON : Disables broadcast storm protection |
|
|
OFF : Enable broadcast storm protection |
||
|
DIP 3 |
ON : Fiber 2 for 100Base-FX SFP |
|
|
OFF : Fiber 2 for Gigabit SFP (IGS-402S) |
||
|
DIP 4 |
ON : Fiber 1 for 100Base-FX SFP |
|
|
OFF : Fiber 1 for Gigabit SFP (IGS-402S) |
||
|
Reverse Polarity Protection |
Supported for Power Input |
|
|
Overload Current Protection |
Supported |
|
|
Power Supply |
Redundant Dual DC 12/24/48V (9.6~60VDC) Input power |
|
|
Power Consumption |
7.9W (IGS-402F) |
|
|
7.9W (IGS-402S) |
||
|
Alarm Relay Contact |
Relay outputs with current carrying capacity of 1A @24VDC |
|
|
Removable Terminal Block |
Provides 2 Redundant power, Alarm relay contact, 6 Pin |
|
|
Operating Temperature |
-10 ~ 60°C (IGS-402S, IGS-402F) |
|
|
-40 ~ 75°C (IGS-402S-E, IGS-402F-E) |
||
|
Operating Humidity |
5% to 95% (Non-condensing) |
|
|
Storage Temperature |
-40 ~ 85°C |
|
|
Housing |
Rugged Metal, IP30 Protection, Fanless |
|
|
Dimensions |
106 x 62.5 x 134.8 mm (D X W X H) |
|
|
Installation Mounting |
DIN Rail mounting, or wall mounting (Optional) |
|
|
MTBF |
1,000,643 Hours (IGS-402S) |
|
|
821,412 Hours (IGS-402F) |
||
|
(MIL-HDBK-217) |
||
|
Warranty |
5 years |
|
|
Certification |
|
|
|
EMC/EMS |
CE |
|
|
EMI |
FCC Part 15 Subpart B Class A, CE |
|
|
Railway Traffic |
EN50121-4 |
|
|
Immunity for Heavy Industrial Environment |
EN61000-6-2 |
|
|
Emission for Heavy Industrial Environment |
EN61000-6-4 |
|
|
EMS (Electromagnetic Susceptibility) Protection Level |
EN61000-4-2 (ESD) Level 3, Criteria B |
|
|
EN61000-4-3 (RS) Level 3, Criteria A |
||
|
EN61000-4-4 (Burst) Level 3, Criteria A |
||
