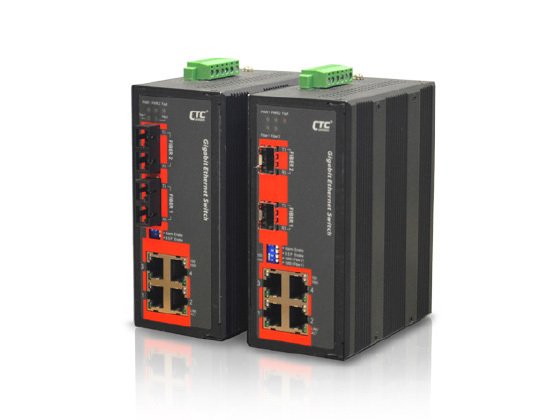

IGS-402F-E-SC080
Industrial 4x10/100/1000MbpsTX (RJ45) + 2x1000Base-X SC 80Km 1550nm 27dB SM, dual 12/24/48VDC power input,-40/75oC
- 4x 10/100/1000Base-T RJ45 + 2x 1000Base-SX/LX Fiber (IGS-402F)
- 4x 10/100/1000Base-T RJ45 + 2x 100/1000Base-X SFP (IGS-402S)
- 12/24/48VDC yedekli çift besleme
- Endüstriyel çalışma sıcaklığı -40 ~ 75°C ("-E" versiyonu)
- Güç arızası durumunda röle ile alarm mesajı desteği
- Fansız IP30 metal muhafaza
- UL60950-1, CE, FCC, EN50121-4 sertifikalı
| Toplam Port Sayısı | : | 6 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100/1000BaseT(X) | : | 4 |
| 1000Base SFP | : | 2 |
|
|
|
|
|
Standards |
IEEE 802.3 10Base-T Ethernet |
|
|
IEEE 802.3u 100Base-TX, 100Base-FX, Fast Ethernet |
||
|
IEEE 802.3ab 1000Base-T Gbit/s Ethernet over twisted pair |
||
|
IEEE 802.3z 1000Base-X Gbit/s Ethernet over Fiber-Optic |
||
|
IEEE 802.3x Flow Control and Back Pressure |
||
|
Switch Architecture |
Back-plane (Switching Fabric): 12Gbps |
|
|
(IGS-402S, IGS-402F) |
||
|
Full wire-speed |
||
|
Data Processing |
Store and Forward |
|
|
Flow Control |
IEEE 802.3x flow control, back pressure flow control |
|
|
Provides Broadcast Storm Protection |
Present, Enable / Disable set by DIP SW |
|
|
Jumbo Frame |
10K Bytes |
|
|
MAC Address Table |
8K |
|
|
Packet Buffer Size |
1Mbits |
|
|
Network Connector |
4 x RJ-45 |
|
|
10/100/1000Base-TX auto negotiation speed, Auto |
||
|
2 1000Base-X Fiber SC connector (IGS-402F) |
||
|
Network Cable |
UTP/STP above Cat. 5e cable |
|
|
EIA/TIA-568 100-ohm (100m) |
||
|
Fiber Cable (Multi-mode): 50/125um, 62.5/125um |
||
|
Fiber Cable (Single-mode): 9/125um |
||
|
Protocols |
CSMA/CD |
|
|
LED |
Per unit: Power 1 (Green), Power 2 (Green), Fault (Amber) |
|
|
Per RJ-45 port : Link/Active (Green), Speed 10 (OFF), |
||
|
100 (Green), 1000 (Yellow) |
||
|
Fiber Per port: Link/Active (Green) |
||
|
DIP SW |
DIP 1 |
ON : Disable power failure alarm |
|
OFF : Enable power failure alarm |
||
|
DIP 2 |
ON : Disables broadcast storm protection |
|
|
OFF : Enable broadcast storm protection |
||
|
DIP 3 |
ON : Fiber 2 for 100Base-FX SFP |
|
|
OFF : Fiber 2 for Gigabit SFP (IGS-402S) |
||
|
DIP 4 |
ON : Fiber 1 for 100Base-FX SFP |
|
|
OFF : Fiber 1 for Gigabit SFP (IGS-402S) |
||
|
Reverse Polarity Protection |
Supported for Power Input |
|
|
Overload Current Protection |
Supported |
|
|
Power Supply |
Redundant Dual DC 12/24/48V (9.6~60VDC) Input power |
|
|
Power Consumption |
7.9W (IGS-402F) |
|
|
7.9W (IGS-402S) |
||
|
Alarm Relay Contact |
Relay outputs with current carrying capacity of 1A @24VDC |
|
|
Removable Terminal Block |
Provides 2 Redundant power, Alarm relay contact, 6 Pin |
|
|
Operating Temperature |
-10 ~ 60°C (IGS-402S, IGS-402F) |
|
|
-40 ~ 75°C (IGS-402S-E, IGS-402F-E) |
||
|
Operating Humidity |
5% to 95% (Non-condensing) |
|
|
Storage Temperature |
-40 ~ 85°C |
|
|
Housing |
Rugged Metal, IP30 Protection, Fanless |
|
|
Dimensions |
106 x 62.5 x 134.8 mm (D X W X H) |
|
|
Installation Mounting |
DIN Rail mounting, or wall mounting (Optional) |
|
|
MTBF |
1,000,643 Hours (IGS-402S) |
|
|
821,412 Hours (IGS-402F) |
||
|
(MIL-HDBK-217) |
||
|
Warranty |
5 years |
|
|
Certification |
|
|
|
EMC/EMS |
CE |
|
|
EMI |
FCC Part 15 Subpart B Class A, CE |
|
|
Railway Traffic |
EN50121-4 |
|
|
Immunity for Heavy Industrial Environment |
EN61000-6-2 |
|
|
Emission for Heavy Industrial Environment |
EN61000-6-4 |
|
|
EMS (Electromagnetic Susceptibility) Protection Level |
EN61000-4-2 (ESD) Level 3, Criteria B |
|
|
EN61000-4-3 (RS) Level 3, Criteria A |
||
|
EN61000-4-4 (Burst) Level 3, Criteria A |
||
