IGS-402SM-4PHE24

4x 10/100/1000Base-T RJ-45+ 2x 100/1000Base-X SFP with 4x PoE+, total 120W powerbudget, -40/75oC

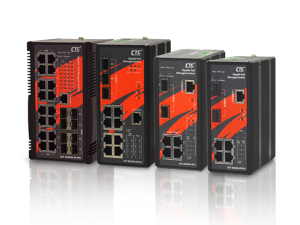

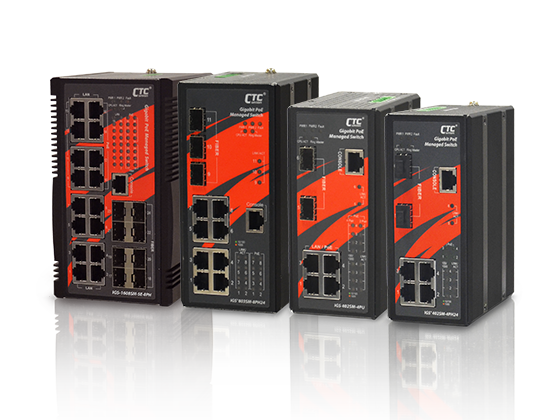

Bu seri, 4/8/16x GbE UTP + 2/3/8 GbE SFP (4/8x PoE Port’lu) içeren yönetilebilir Gigabit PoE endüstriyel anahtar serisidir. Çift güç girişi tasarımı ile kritik uygulamalrda iletişim sürekliliği sağlamaktadır. DIN rail ve duvar montaj opsiyonlu olan bu anahtarlar endüstriyel uygulamalar, telekom uygulamaları, akıllı ulaşım sistemleri (ITS) dışında askeri uygulamalar gibi zorlu ortamlar için de uygundur.

Bu seriler, STP/RSTP/MSTP/ ITU-T G.8032 ERPS, multiple u-Ring, auto-checking, auto-reset gibi gelişmiş PoE yönetim fonksiyonlarını destekler. Aynı zamanda layer 2 Ethernet IGMP, VLAN, QoS,  Security, IPv6, bandwidth control, port mirroring, cable diagnostics ve Green Ethernet desteği mevcuttur.

Bu seri ürünler, ağ yöneticilerine merkezden cihazları gözlemleyebilecekleri ve yönetebilecekleri CTC Union’un "SmartView™” (https://www.ctcu.com/en/industrial-ethernet-management-software/ems-smartview.html) merkezi yönetim sistemini de desteklemektedir.

• 4x 10/100/1000Base-T RJ-45+ 2x 100/1000Base-X SFP with 4x PoE+, total 120W power budget (IGS+402SM-4PH24)
• 4x10/100/1000Base-T RJ-45 + 2x 100/1000Base-X SFP with 4x PoE++, total 240W power budget (IGS-402SM-4PU)
• 8x10/100/1000Base-T RJ-45+ 3x100/1000Base-X SFP with 8xPoE+, total 180W power budget (IGS+803SM-8PH24)
• 16x10/100/1000Base-T RJ-45+ 8x100/1000Base-X SFP with 8x PoE+, total 240W power budget (IGS-1608SM-8PH)
• 48VDC (44~57VDC) redundant dual input power (IGS-402SM-4PU, IGS-1608SM-8PH)
• 24/48VDC (20~57VDC) redundant dual input power with built-in very high efficiency booster (94~97%) to rise up 55 VDC for PoE output (Figure 2) (IGS+402SM-4PH24, IGS+803SM-8PH24)
• Supports negative voltage power input with isolated RS-232 console port (for example in telecom system)
• Regulated PoE output voltage (55VDC) to stabilize PoE device, and guarantee delivery PoE power distance to 100meter (Figure 2) (IGS+402SM-4PH24, IGS+803SM-8PH24)
• Provides 4/8 port IEEE802.3af / 802.3at PoE+ output ,30W per port (IGS+402SM-4PH24, IGS+803SM-8PH24, IGS-1608SM-8PH)
• Provides 4 port IEEE802.3af / 802.3at/802.3bt PoE++ output, 60W per port (IGS-402SM-4PU)
• Advanced PoE Management, PoE PD Failure Auto Checking and auto reset when PD fail, PoE port on/off weekly scheduling, PoE configuration for power planning
• Rugged metal, IP30 protection & Fan-less design
• UL60950-1, CE, FCC, Rail Traffic EN50121-4, Traffic control NEMA TS2 certified
• Heavy Industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
• 2.25K VDC Hi-pot isolation protection for Ethernet ports and power
• Cable diagnostics, Measuring cable OK or broken point distance
• Supports Green Ethernet IEEE802.3az EEE (Energy Efficient Ethernet) management to optimize power consumption
• STP, RSTP, MSTP, ITΜ-T G.8032 Ethernet Ring Protection Switching (ERPS) for redundant cabling
• Provides 5 ring instances that each can support μ-Ring, μ-Chain or Sub-Ring type for flexible uses. Supports up to 5 rings in one device (Please see CTC μ-Ring white paper https://www.ctcu.com/download/White_Paper-u_Ring_Redundancy.pdf)
• μ-Ring for Redundant Cabling, recovery time<10ms in 250 devices
• DHCP Server/Client/Relay/Snooping/Snooping option 82/Relay option 82
• QoS, Traffic classification QoS, CoS, bandwidth control for Ingress and Egress, Storm Control, DiffServ
• IEEE802.1q VLAN, MAC based VLAN, IP subnet based VLAN, Protocol based VLAN, VLAN translation, GVRP, MVR
• Dynamic IEEE 802.3ad LACP Link Aggregation, Static Link Aggregation
• IGMP snooping V1/V2/V3, IGMP Filtering/ Throttling, IGMP query, IGMP proxy reporting, MLD snooping V1/V2
• Flexibility security: Port based and MAC based IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
• Software upgrade via TFTP and HTTP, redundant firmware to avoid upgrade failure
• Supports IEEE1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
• RMON, MIB II, Port mirroring, Event syslog, DNS, NTP, SNTP, IEEE802.1ab LLDP
• Supports IPv6 Telnet server /ICMP v6
• CLI, Web based management, SNMP v1/v2c/v3, Telnet server for management
• Provides SmartConfig for quick and easy mass configuration tool (https://www.ctcu.com/en/industrial-ethernet-management-software/smartconfig.html)
• Supports SmartView for centralized management tool (https://www.ctcu.com/en/industrial-ethernet-management-software/ems-smartview.html)
• Supporting Central EMS for management of up to 50 SmartView Server, and maximum up to 25,000 device tool (https://www.ctcu.com/en/industrial-ethernet-management-software/central-ems.html)
