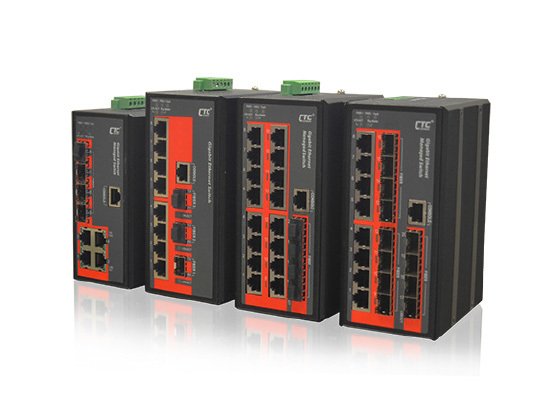

IGS-404SM
Industrial managed 4x10/100/1000BaseTX(RJ45) + 4x100/1000Base-X SFP, daul 12/24/48VDC power input, -10/60oC
- 4x 10/100/1000Base-T RJ-45 and 4x 100/1000Base-X SFP Fiber (IGS-404SM)
- 8x 10/100/1000Base-T RJ-45 and 3x 100/1000Base-X SFP Fiber (IGS-803SM)
- 8x 10/100/1000Base-T RJ-45 and 12x 100/1000Base-X SFP Fiber (IGS-812SM)
- 16x 10/100/1000Base-T RJ-45 and 4x 100/1000Base-X SFP Fiber (IGS-1604SM)
- UL60950-1, CE, FCC, Rail Traffic EN50121-4, Traffic control NEMA TS2 certified
- Heavy industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
- Cable diagnostic, Measuring cable normal or broken point distance
- Rugged Metal, IP30 Protection & Fanless design
- Supports Green Ethernet IEEE802.3az EEE (Energy Efficient Ethernet) management to optimize the power Cosumption
- STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) for redundant cabling
- Provides 5 instances that each can support u-Ring, u-Chain or SubRing type for flexible uses.Supports up to 5 rings in one device (Please see CTC u-Ring white paper https://www.ctcu.com/download/White_Paper-u_Ring_Redundancy.pdf)
- u-Ring for Redundant Cabling, recovery time<10ms in 250 devices
- DHCP Server/Client/Relay/Snooping/Snooping option 82/Relay option 82
- QoS, Traffic classification QoS, CoS, bandwidth control for Ingress and Egress, Storm Control, DiffServ
- IEEE802.1q VLAN, MAC based VLAN, IP subnet based VLAN, Protocol based VLAN, VLAN translation, GVRP, MVR
- Dynamic IEEE 802.3ad LACP Link Aggregation, Static Link Aggregation
- IGMP snooping V1/V2/V3, IGMP Filtering/ Throttling, IGMP query, IGMP proxy reporting, MLD snooping V1/V2
- Software upgrade via TFTP and HTTP, redundant firmware to avoid in case of upgrade failure
- Supports IEEE1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
- RMON, MIB II, Port mirroring, Event syslog, DNS, NTP, SNTP, IEEE802.1ab LLDP
- Supports IPv6 Telnet server /ICMP v6
- CLI, Web based management, SNMP v1/v2c/v3, Telnet server for management
- Provides SmartConfig for quick and easy mass configuration tool (Please see Catalog chapter 1- Software Management for more details)
- Supports SmartView for Centralized management (Please see Catalog chapter 1- Software Management for more details)
- Supporting Central EMS for management of up to 50 SmartView Server, and maximum up to 25,000 device
| Toplam Port Sayısı | : | 8 |
| Çalışma Sıcaklığı | : | -10/+60C |
| 10/100/1000BaseT(X) | : | 4 |
| 100/1000Base SFP | : | 4 |
|
Specifications |
||||||
|
Standard |
IEEE 802.3 |
10Base-T 10Mbit/s Ethernet |
||||
|
IEEE 802.3u |
100Base-TX, 100Base-FX, Fast Ethernet |
|||||
|
IEEE 802.3ab |
1000Base-T Gbit/s Ethernet over twisted pair |
|||||
|
IEEE 802.3z |
1000Base-X Gbit/s Ethernet over Fiber-Optic |
|||||
|
IEEE 802.1d |
STP (Spanning Tree Protocol) |
|||||
|
IEEE 802.1w |
RSTP (Rapid Spanning Tree Protocol) |
|||||
|
IEEE 802.1s |
MSTP (Multiple Spanning Tree Protocol) |
|||||
|
ITU-T G.8032 / Y.1344 |
ERPS (Ethernet Ring Protection Switching) |
|||||
|
IEEE 802.1Q |
Virtual LANs (VLAN) |
|||||
|
IEEE 802.1X |
Port based and MAC based Network Access Control, Authentication |
|||||
|
IEEE 802.3ac |
Max frame size extended to 1522Bytes. |
|||||
|
IEEE 802.3ad |
Link aggregation for parallel links with LACP(Link Aggregation Control Protocol) |
|||||
|
IEEE 802.3x |
Flow control for Full Duplex |
|||||
|
IEEE 8 02.1ad |
Stacked VLANs, Q-in-Q |
|||||
|
IEEE 8 02.1p |
LAN Layer 2 QoS/CoS Protocol for Traffic Prioritization |
|||||
|
IEEE 8 02.1ab |
Link Layer Discovery Protocol (LLDP) |
|||||
|
IEEE 802.3az |
EEE (Energy Efficient Ethernet) |
|||||
|
VLAN ID |
4094 IEEE802.1Q VLAN VID |
|||||
|
Switch Architecture |
Back-plane (Switching Fabric): 16Gbps (IGS-404SM), 22Gbps (IGS-803SM) 40Gbps (IGS-812SM, IGS-1604SM) Full wire-speed |
|||||
|
Data Processing |
Store and Forward |
|||||
|
Flow Control |
IEEE 802.3x for full duplex mode Back pressure for half duplex mode |
|||||
|
Network Connector
|
4x 10/100/1000Base-T RJ-45 + 4x 100/1000Base-X SFP connector (IGS-404SM) 8x 10/100/1000Base-T RJ-45 + 3x 100/1000Base-X SFP connector (IGS-803SM) 8x 10/100/1000Base-T RJ-45+ 12x 100/1000Base-X SFP connector (I G S - 812 SM) 16x 10/100/1000Base-T RJ-45+ 4x 100/1000Base-X SFP connector (IGS -16 0 4SM) RJ-45 UTP port support Auto negotiation speed, Auto MDI/MDI-X function, SFP port support dual speed with DDMI
|
|||||
|
Console |
R S -232 (R J - 45) |
|||||
|
Network Cable
|
UTP/STP above Cat. 5e cable |
|||||
|
EIA/TIA-568 100-ohm (100m) |
||||||
|
Protocols |
CSMA/CD |
|||||
|
Reverse Polarity Protection |
Supported for power input |
|||||
|
Overload Current Protection |
Supported |
|||||
|
CPU Watch Dog |
Supported |
|||||
|
Power Supply |
Redundant Dual DC 12/24/48V (9.6~60VDC) Input power (Removable Terminal Block ) |
|||||
|
Power Consumption
|
Input Voltage |
IGS- 404SM |
IGS- 803SM |
IGS- 812SM |
IGS- 1604SM |
|
|
12VDC |
8.2W |
8.5W |
14.3W |
14.5W |
||
|
24VDC |
8.1W |
9.1W |
14.2W |
14.4W |
||
|
48VDC |
9.6W |
10.6W |
15.8W |
16.3W |
||
|
LED
|
Per unit: Power 1 (Green), Power 2 (Green), Fault (Amber), CPU Act (Green), Ring Master (Yellow) |
|||||
|
Per RJ-45 port: 10/100 Link/Active (Green) 1000 Link/Active (Amber) |
||||||
|
SFP Fiber Per port: Link/Active (Green) |
||||||
|
Jumbo Frame |
9.6KB |
|||||
|
IEEE802.3ac |
Max frame size extended to 1522Bytes (allow Q-tag in packet) |
|||||
|
MAC Address Table |
8K |
|||||
|
Memory Buffer |
512K Bytes for packet buffer |
|||||
|
Warning Message
|
System Syslog, SMTP/ e-mail event message, alarm relay |
|||||
|
Alarm Relay Contact |
Relay outputs with current carrying capacity of 1 A @24VDC, |
|||||
|
Operating Temperature |
-10 ~ 60°C (IGS-404SM, IGS-803SM, IGS-812SM, IGS-1604SM) -40 ~ 75°C (IGS-404SM-E, IGS-803SM-E, IGS-812SM-E, IGS-1604SM-E) |
|||||
|
Operating Humidity |
5% to 95% (Non-condensing) |
|||||
|
Storage Temperature |
-40 ~ 85°C |
|||||
|
Housing |
Rugged Metal, IP30 Protection, Fanless |
|||||
|
Dimensions |
106 x 62.5 x 135 mm (D x W x H) (IGS-404SM)106 x 72 x152 mm (D x W x H) (IGS-803SM, IGS-812SM, IGS-1604SM |
|||||
|
Weight |
0.725kg (IGS-404SM) 0.78kg (IGS-803SM) 0.795kg(I G S - 812 SM) 0.82kg (IGS -16 0 4SM
|
|||||
|
Installation Mounting |
DIN Rail mounting or wall mounting (optional) |
|||||
|
MTBF
|
861,962 Hours (IGS-404SM) 612,523 Hours (IGS-803SM) 517,181 Hours (I G S - 812 SM) 412,015 Hours (IGS -16 0 4SM) ( M I L- H D B K -217 )
|
|||||
|
Warranty |
5 years |
|||||
|
Certification |
||||||
|
EMC |
CE |
|||||
|
EMI (Electromagnetic Interference) |
FCC Part 15 Subpart B Class A,CE EN55022 Class A |
|||||
|
Railway Traffic |
EN50121- 4 |
|||||
|
Immunity for Heavy Industrial Environment |
EN61000-6-2 |
|||||
|
Emission for Heavy Industrial Environment |
EN61000-6-4 |
|||||
|
EMS (Electromagnetic Susceptibility) Protection Level |
EN61000-4-2 (ESD) Level 3, Criteria B EN61000-4-3 (RS) Level 3, Criteria A EN61000-4-4 (Burst) Level 3, Criteria A EN61000-4-5 (Surge) Level 3, Criteria B EN61000-4-6 (CS) Level 3, Criteria A EN61000-4-8 (PFMF, Magnetic Field) Field Strength: 300A/m, Criteria A |
|||||
|
Safety |
UL60950-1 |
|||||
|
Shock |
IEC 60068 -2-27 |
|||||
|
Freefall |
IEC 60068 -2-32 |
|||||
|
Vibration |
IEC 60068 -2-6 |
|||||
