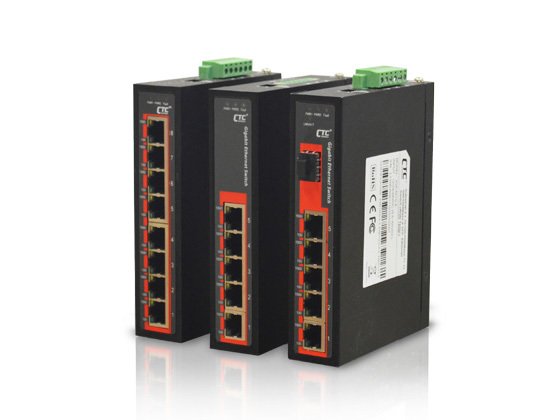

IGS-500
Industrial unmanaged 5x10/100/1000BaseTX , -10/60oC
Bu seri, 5/8adet 10/100/1000Base-T port ve 1 veya 0 adet 1000Base-X SFP port içeren yönetilemez endüstriyel gigabit anahtar serisidir. DIN rail ve duvar montaj opsiyonlu olan bu anahtarlar endüstriyel uygulamalar, akıllı ulaşım sistemleri (ITS) dışında askeri uygulamalar gibi zorlu ortamlar için de uygundur.
• 5x 10/100/1000Base-T RJ-45 + 1x100/1000Base-X SFP (IGS-501S)
• 5x 10/100/1000Base-T RJ-45 (IGS-500)
• 8x 10/100/1000Base-T RJ-45 (IGS-800)
• IEEE802.3az Green Ethernet desteği
• Auto-negotiation ve auto-MDI/MDI-X desteği
• 12/24/48VDC (9.6~60VDC) yedekli çift besleme
• Endüstriyel çalışma sıcaklığı -40 ~ 75°C ("-E" versiyonu)
• Güç arızası durumunda röle ile alarm mesajı desteği
• Fansız IP30 metal muhafaza
• EMS, EMI, EN61000-6-2, EN61000-6-4
• EN50121-4, CE, FCC
| Toplam Port Sayısı | : | 5 |
| Çalışma Sıcaklığı | : | -10/+60C |
| 10/100/1000BaseT(X) | : | 5 |
|
SPECIFICATIONS |
|
|
|
Standards |
IEEE 802.3 10Base-T Ethernet |
|
|
IEEE 802.3u 100Base-TX, 100Base-FX, Fast Ethernet |
||
|
IEEE 802.3ab 1000Base-T Gbit/s Ethernet over twisted pair |
||
|
IEEE 802.3x Flow Control |
||
|
IEEE 802.3z 1000Base-X Gbit/s Ethernet over Fiber-Optic |
||
|
Switch Architecture |
Back-plane (Switching Fabric): 12Gbps(IGS-501s) 10 Gbps(IGS-500) |
|
|
16 Gbps (IGS-800) |
||
|
Full wire-speed |
||
|
Data Processing |
Store and Forward |
|
|
Flow Control |
IEEE 802.3x flow control,for full duplex, back pressure for half duplex |
|
|
Provides Broadcast Storm Protection |
Supported |
|
|
Jumbo Frame |
9,5K Bytes |
|
|
MAC Address Table |
8K |
|
|
Packet Buffer Size |
128KByte |
|
|
Network Connector |
5 x 10/100/1000Base-T RJ-45 (IGS-500,IGS-501S) |
|
|
8 x 10/100/1000Base-T RJ-45 (IGS-800) 1x 100/1000Base-X SFP connector (only for IGS-501S) |
||
|
10/100/1000Base-TX auto negotiation speed, Auto MDI/MDI-X function, Full/Half duplex |
||
|
Network Cable |
10Base-T: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m) |
|
|
100Base-TX: 2-pair UTP/STP Cat. 5 cable |
||
|
EIA/TIA-568 100-ohm (100m) |
||
|
Fiber Cable (Multi-mode): 50/125um, 62.5/125um (only for IGS-501S) Fiber Cable (Single-mode): 9/125um (only for IGS-501S) |
||
|
Protocols |
CSMA/CD |
|
|
LED |
Per unit: Power 1 (Green), Power 2 (Green), Fault (Amber)
|
|
|
Per RJ45 Link/Act 1000 (Yellow) Link/Act 10/100 (Green) Fiber LED Link/Act (Green |
||
|
|
||
|
DIP SW |
DIP 1 |
ON : Disable |
|
OFF : Enable power failure alarm |
||
|
DIP 2 |
ON : Disables broadcast storm protection |
|
|
OFF : Enable broadcast storm protection |
||
|
DIP 3 |
Green Ethernet ON : Disable Green Ethernet |
|
|
OFF : Enable 802.3az Green Ethernet |
||
|
DIP 4 |
SFP speed (only for IGS-501S) |
|
|
ON : 100M OFF : 1000M |
||
|
Reverse Polarity Protection |
Supported for Power Input |
|
|
Overload Current Protection |
Present |
|
|
Power Supply |
Redundant Dual DC 12/24/48V (9.6~60VDC), or AC 24V (18~36VAC) Input power (Removable Terminal Block)
Provide DC Power JACK adapter cable for external power supply |
|
|
Power Consumption |
Input IGS-500 IGS-501S IGS-800 12VDC 3.3W 3.9W 7.0W 24VDC 3.4W 3.9W 7.0W 48VDC 4.8W 5.3W 8.7W |
|
|
Alarm Relay Contact |
Relay outputs with current carrying capacity of 1A @24VDC,NC |
|
|
Removable Terminal Block |
Provides 2 Redundant power, Alarm relay contact, 6 Pin |
|
|
Operating Temperature |
-10°C~60°C ( IGS-501S, IGS-500, IGS-800) |
|
|
-40°C~75°C ( IGS-501S-E, IGS-500-E, IGS-800-E) |
||
|
Operating Humidity |
5% to 95% (Non-condensing) |
|
|
Storage Temperature |
-40 ~ 85°C |
|
|
Housing |
Rugged Metal,IP30Protection and fanless |
|
|
Dimensions |
106 x 31.6 x 142 mm (D X W X H) |
|
|
Installation Mounting |
DIN Rail mounting or wall mounting |
|
|
MTBF |
569,039hrs (IGS-501S) 612,034hrs (IGS-500) |
|
|
301,121hrs (IGS-800) |
||
|
(MIL-HDBK-217) |
||
|
Warranty |
5 years |
|
|
Certification |
|
|
|
EMC/EMS |
CE |
|
|
EMI |
FCC Part 15 Subpart B Class A,CE EN55022 Class A |
|
|
Railway Traffic |
EN50121-4 |
|
|
Immunity for Heavy Industrial Environment |
EN61000-6-2 |
|
|
Emission for Heavy Industrial Environment |
EN61000-6-4 |
|
|
EMS (Electromagnetic Susceptibility) Protection Level |
EN61000-4-2 (ESD) Level 3, Criteria B |
|
|
EN61000-4-3 (RS) Level 3, Criteria A |
||
|
EN61000-4-4 (Burst) Level 3, Criteria A |
||
