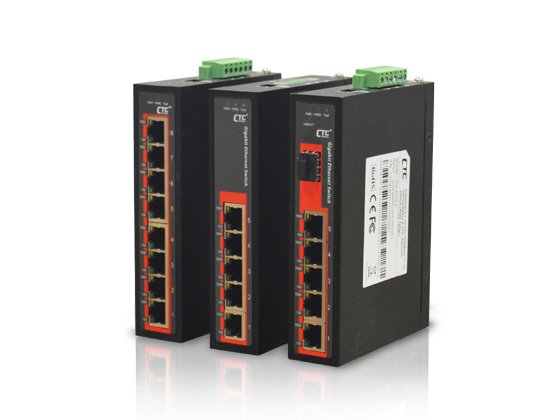

IGS-800-E
Industrial unmanaged 8x10/100/1000BaseTX , -40/75oC
• 5x 10/100/1000Base-T RJ-45 + 1x100/1000Base-X SFP (IGS-501S)
• 5x 10/100/1000Base-T RJ-45 (IGS-500)
• 8x 10/100/1000Base-T RJ-45 (IGS-800)
• IEEE802.3az Green Ethernet desteği
• Auto-negotiation ve auto-MDI/MDI-X desteği
• 12/24/48VDC (9.6~60VDC) yedekli çift besleme
• Endüstriyel çalışma sıcaklığı -40 ~ 75°C ("-E" versiyonu)
• Güç arızası durumunda röle ile alarm mesajı desteği
• Fansız IP30 metal muhafaza
• EMS, EMI, EN61000-6-2, EN61000-6-4
• EN50121-4, CE, FCC
| Toplam Port Sayısı | : | 8 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100/1000BaseT(X) | : | 8 |
|
SPECIFICATIONS |
|
|
|
Standards |
IEEE 802.3 10Base-T Ethernet |
|
|
IEEE 802.3u 100Base-TX, 100Base-FX, Fast Ethernet |
||
|
IEEE 802.3ab 1000Base-T Gbit/s Ethernet over twisted pair |
||
|
IEEE 802.3x Flow Control |
||
|
IEEE 802.3z 1000Base-X Gbit/s Ethernet over Fiber-Optic |
||
|
Switch Architecture |
Back-plane (Switching Fabric): 12Gbps(IGS-501s) 10 Gbps(IGS-500) |
|
|
16 Gbps (IGS-800) |
||
|
Full wire-speed |
||
|
Data Processing |
Store and Forward |
|
|
Flow Control |
IEEE 802.3x flow control,for full duplex, back pressure for half duplex |
|
|
Provides Broadcast Storm Protection |
Supported |
|
|
Jumbo Frame |
9,5K Bytes |
|
|
MAC Address Table |
8K |
|
|
Packet Buffer Size |
128KByte |
|
|
Network Connector |
5 x 10/100/1000Base-T RJ-45 (IGS-500,IGS-501S) |
|
|
8 x 10/100/1000Base-T RJ-45 (IGS-800) 1x 100/1000Base-X SFP connector (only for IGS-501S) |
||
|
10/100/1000Base-TX auto negotiation speed, Auto MDI/MDI-X function, Full/Half duplex |
||
|
Network Cable |
10Base-T: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m) |
|
|
100Base-TX: 2-pair UTP/STP Cat. 5 cable |
||
|
EIA/TIA-568 100-ohm (100m) |
||
|
Fiber Cable (Multi-mode): 50/125um, 62.5/125um (only for IGS-501S) Fiber Cable (Single-mode): 9/125um (only for IGS-501S) |
||
|
Protocols |
CSMA/CD |
|
|
LED |
Per unit: Power 1 (Green), Power 2 (Green), Fault (Amber)
|
|
|
Per RJ45 Link/Act 1000 (Yellow) Link/Act 10/100 (Green) Fiber LED Link/Act (Green |
||
|
|
||
|
DIP SW |
DIP 1 |
ON : Disable |
|
OFF : Enable power failure alarm |
||
|
DIP 2 |
ON : Disables broadcast storm protection |
|
|
OFF : Enable broadcast storm protection |
||
|
DIP 3 |
Green Ethernet ON : Disable Green Ethernet |
|
|
OFF : Enable 802.3az Green Ethernet |
||
|
DIP 4 |
SFP speed (only for IGS-501S) |
|
|
ON : 100M OFF : 1000M |
||
|
Reverse Polarity Protection |
Supported for Power Input |
|
|
Overload Current Protection |
Present |
|
|
Power Supply |
Redundant Dual DC 12/24/48V (9.6~60VDC), or AC 24V (18~36VAC) Input power (Removable Terminal Block)
Provide DC Power JACK adapter cable for external power supply |
|
|
Power Consumption |
Input IGS-500 IGS-501S IGS-800 12VDC 3.3W 3.9W 7.0W 24VDC 3.4W 3.9W 7.0W 48VDC 4.8W 5.3W 8.7W |
|
|
Alarm Relay Contact |
Relay outputs with current carrying capacity of 1A @24VDC,NC |
|
|
Removable Terminal Block |
Provides 2 Redundant power, Alarm relay contact, 6 Pin |
|
|
Operating Temperature |
-10°C~60°C ( IGS-501S, IGS-500, IGS-800) |
|
|
-40°C~75°C ( IGS-501S-E, IGS-500-E, IGS-800-E) |
||
|
Operating Humidity |
5% to 95% (Non-condensing) |
|
|
Storage Temperature |
-40 ~ 85°C |
|
|
Housing |
Rugged Metal,IP30Protection and fanless |
|
|
Dimensions |
106 x 31.6 x 142 mm (D X W X H) |
|
|
Installation Mounting |
DIN Rail mounting or wall mounting |
|
|
MTBF |
569,039hrs (IGS-501S) 612,034hrs (IGS-500) |
|
|
301,121hrs (IGS-800) |
||
|
(MIL-HDBK-217) |
||
|
Warranty |
5 years |
|
|
Certification |
|
|
|
EMC/EMS |
CE |
|
|
EMI |
FCC Part 15 Subpart B Class A,CE EN55022 Class A |
|
|
Railway Traffic |
EN50121-4 |
|
|
Immunity for Heavy Industrial Environment |
EN61000-6-2 |
|
|
Emission for Heavy Industrial Environment |
EN61000-6-4 |
|
|
EMS (Electromagnetic Susceptibility) Protection Level |
EN61000-4-2 (ESD) Level 3, Criteria B |
|
|
EN61000-4-3 (RS) Level 3, Criteria A |
||
|
EN61000-4-4 (Burst) Level 3, Criteria A |
||
