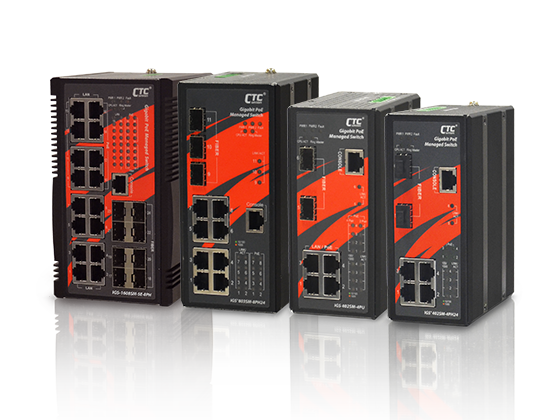

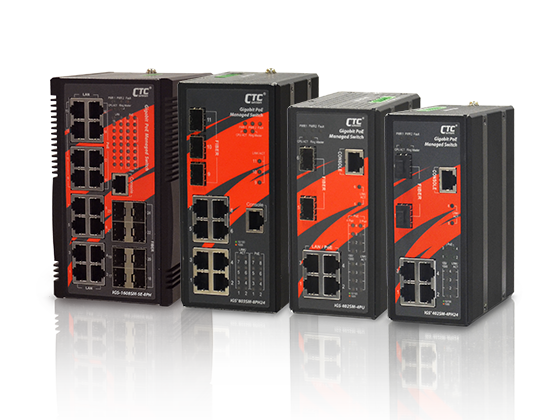

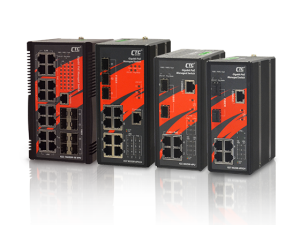

IGS+803SM-8PH24
8x10/100/1000Base-T RJ-45+ 3x100/1000Base-X SFP with 8xPoE+, total 180W power budget
Bu seri, 4/8/16x GbE UTP + 2/3/8 GbE SFP (4/8x PoE Port’lu) içeren yönetilebilir Gigabit PoE endüstriyel anahtar serisidir. Çift güç girişi tasarımı ile kritik uygulamalrda iletişim sürekliliği sağlamaktadır. DIN rail ve duvar montaj opsiyonlu olan bu anahtarlar endüstriyel uygulamalar, telekom uygulamaları, akıllı ulaşım sistemleri (ITS) dışında askeri uygulamalar gibi zorlu ortamlar için de uygundur.
Bu seriler, STP/RSTP/MSTP/ ITU-T G.8032 ERPS, multiple u-Ring, auto-checking, auto-reset gibi gelişmiş PoE yönetim fonksiyonlarını destekler. Aynı zamanda layer 2 Ethernet IGMP, VLAN, QoS, Security, IPv6, bandwidth control, port mirroring, cable diagnostics ve Green Ethernet desteği mevcuttur.
- 4x 10/100/1000Base-T RJ-45+ 2x 100/1000Base-X SFP with 4x PoE+, total 120W power budget (IGS+402SM-4PH24)
- 4x10/100/1000Base-T RJ-45 + 2x 100/1000Base-X SFP with 4x PoE++, total 240W power budget (IGS-402SM-4PU)
- 8x10/100/1000Base-T RJ-45+ 3x100/1000Base-X SFP with 8xPoE+, total 180W power budget (IGS+803SM-8PH24)
- 16x10/100/1000Base-T RJ-45+ 8x100/1000Base-X SFP with 8x PoE+, total 240W power budget (IGS-1608SM-8PH)
- 48VDC (44~57VDC) redundant dual input power (IGS-402SM-4PU, IGS-1608SM-8PH)
- 24/48VDC (20~57VDC) redundant dual input power with built-in very high efficiency booster (94~97%) to rise up 55 VDC for PoE output (Figure 2) (IGS+402SM-4PH24, IGS+803SM-8PH24)
- Supports negative voltage power input with isolated RS-232 console port (for example in telecom system)
- Regulated PoE output voltage (55VDC) to stabilize PoE device, and guarantee delivery PoE power distance to 100meter (Figure 2) (IGS+402SM-4PH24, IGS+803SM-8PH24)
- Provides 4/8 port IEEE802.3af / 802.3at PoE+ output ,30W per port (IGS+402SM-4PH24, IGS+803SM-8PH24, IGS-1608SM-8PH)
- Provides 4 port IEEE802.3af / 802.3at/802.3bt PoE++ output, 60W per port (IGS-402SM-4PU)
- Advanced PoE Management, PoE PD Failure Auto Checking and auto reset when PD fail, PoE port on/off weekly scheduling, PoE configuration for power planning
- Rugged metal, IP30 protection & Fan-less design
- UL60950-1, CE, FCC, Rail Traffic EN50121-4, Traffic control NEMA TS2 certified
- Heavy Industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
- 2.25K VDC Hi-pot isolation protection for Ethernet ports and power
MODEL |
Total Port |
UTP |
Fiber |
PoE Port |
Input Power |
Operatin Temperature |
||
10/100 /1000 Base-T |
100/1000 Base-X |
IEEE 802.3at |
IEEE 802.3bt |
Power Budget |
Redundant |
|||
6 |
4 |
2 SFP |
4 |
|
120W |
24/48, |
-10/+60°C |
|
6 |
4 |
2 SFP |
4 |
|
120W |
24/48, |
-40/+75°C |
|
6 |
4 |
2 SFP |
|
4 |
240W |
48, |
-10/+60°C |
|
6 |
4 |
2 SFP |
|
4 |
240W |
48, |
-40/+75°C |
|
11 |
8 |
3 SFP |
8 |
|
180W |
24/48, |
-10/+60°C |
|
11 |
8 |
3 SFP |
8 |
|
180W |
24/48, |
-40/+75°C |
|
24 |
16 |
8 SFP |
8 |
|
240W |
48, |
-10/+60°C |
|
24 |
16 |
8 SFP |
8 |
|
240W |
48, |
-40/+75°C |
Toplam Port Sayısı | : | 11 |
Çalışma Sıcaklığı | : | -10/+60C |
10/100/1000BaseT(X) | : | 8 |
PoE Port | : | 8 |
100/1000Base SFP | : | 3 |
