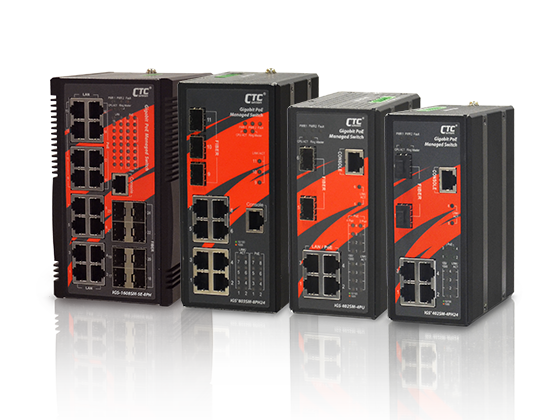

IGS+803SM-8PHE24
8x10/100/1000Base-T RJ-45+ 3x100/1000Base-X SFP with 8xPoE+, total 180W power budget
Bu seri, 4/8/16x GbE UTP + 2/3/8 GbE SFP (4/8x PoE Port’lu) içeren yönetilebilir Gigabit PoE endüstriyel anahtar serisidir. Çift güç girişi tasarımı ile kritik uygulamalrda iletişim sürekliliği sağlamaktadır. DIN rail ve duvar montaj opsiyonlu olan bu anahtarlar endüstriyel uygulamalar, telekom uygulamaları, akıllı ulaşım sistemleri (ITS) dışında askeri uygulamalar gibi zorlu ortamlar için de uygundur.
Bu seriler, STP/RSTP/MSTP/ ITU-T G.8032 ERPS, multiple u-Ring, auto-checking, auto-reset gibi gelişmiş PoE yönetim fonksiyonlarını destekler. Aynı zamanda layer 2 Ethernet IGMP, VLAN, QoS, Security, IPv6, bandwidth control, port mirroring, cable diagnostics ve Green Ethernet desteği mevcuttur.
- 4x 10/100/1000Base-T RJ-45+ 2x 100/1000Base-X SFP with 4x PoE+, total 120W power budget (IGS+402SM-4PH24)
- 4x10/100/1000Base-T RJ-45 + 2x 100/1000Base-X SFP with 4x PoE++, total 240W power budget (IGS-402SM-4PU)
- 8x10/100/1000Base-T RJ-45+ 3x100/1000Base-X SFP with 8xPoE+, total 180W power budget (IGS+803SM-8PH24)
- 16x10/100/1000Base-T RJ-45+ 8x100/1000Base-X SFP with 8x PoE+, total 240W power budget (IGS-1608SM-8PH)
- 48VDC (44~57VDC) redundant dual input power (IGS-402SM-4PU, IGS-1608SM-8PH)
- 24/48VDC (20~57VDC) redundant dual input power with built-in very high efficiency booster (94~97%) to rise up 55 VDC for PoE output (Figure 2) (IGS+402SM-4PH24, IGS+803SM-8PH24)
- Supports negative voltage power input with isolated RS-232 console port (for example in telecom system)
- Regulated PoE output voltage (55VDC) to stabilize PoE device, and guarantee delivery PoE power distance to 100meter (Figure 2) (IGS+402SM-4PH24, IGS+803SM-8PH24)
- Provides 4/8 port IEEE802.3af / 802.3at PoE+ output ,30W per port (IGS+402SM-4PH24, IGS+803SM-8PH24, IGS-1608SM-8PH)
- Provides 4 port IEEE802.3af / 802.3at/802.3bt PoE++ output, 60W per port (IGS-402SM-4PU)
- Advanced PoE Management, PoE PD Failure Auto Checking and auto reset when PD fail, PoE port on/off weekly scheduling, PoE configuration for power planning
- Rugged metal, IP30 protection & Fan-less design
- UL60950-1, CE, FCC, Rail Traffic EN50121-4, Traffic control NEMA TS2 certified
- Heavy Industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
- 2.25K VDC Hi-pot isolation protection for Ethernet ports and power
|
MODEL |
Total Port |
UTP |
Fiber |
PoE Port |
Input Power |
Operatin Temperature |
||
|
10/100 /1000 Base-T |
100/1000 Base-X |
IEEE 802.3at |
IEEE 802.3bt |
Power Budget |
Redundant |
|||
|
6 |
4 |
2 SFP |
4 |
|
120W |
24/48, |
-10/+60°C |
|
|
6 |
4 |
2 SFP |
4 |
|
120W |
24/48, |
-40/+75°C |
|
|
6 |
4 |
2 SFP |
|
4 |
240W |
48, |
-10/+60°C |
|
|
6 |
4 |
2 SFP |
|
4 |
240W |
48, |
-40/+75°C |
|
|
11 |
8 |
3 SFP |
8 |
|
180W |
24/48, |
-10/+60°C |
|
|
11 |
8 |
3 SFP |
8 |
|
180W |
24/48, |
-40/+75°C |
|
|
24 |
16 |
8 SFP |
8 |
|
240W |
48, |
-10/+60°C |
|
|
24 |
16 |
8 SFP |
8 |
|
240W |
48, |
-40/+75°C |
|
| Toplam Port Sayısı | : | 11 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100/1000BaseT(X) | : | 8 |
| PoE Port | : | 8 |
| 100/1000Base SFP | : | 3 |
|
Specifications |
||||||
|
Standard |
IEEE 802.3 |
10Base-T 10Mbit/s Ethernet |
||||
|
IEEE 802.3u |
100Base-TX, 100Base-FX, Fast Ethernet |
|||||
|
IEEE 802.3ab |
1000Base-T Gbit/s Ethernet over twisted pair |
|||||
|
IEEE 802.3z |
1000Base-X Gbit/s Ethernet over Fiber-Optic |
|||||
|
IEEE 802.3af |
PoE (Power over Ethernet) |
|||||
|
IEEE 802.3at |
PoE+(Power over Ethernet enhancements) |
|||||
|
IEEE 802.3bt |
PoE++(4 pairs Power over Ethernet) |
|||||
|
IEEE 802.1d |
STP (Spanning Tree Protocol) |
|||||
|
IEEE 802.1sw |
RSTP (Rapid Spanning Tree Protocol ) |
|||||
|
IEEE 802.1s |
MSTP (Multiple Spanning Tree Protocol) |
|||||
|
ITΜ-T G.8032 / Y.1344 |
ERPS (Ethernet Ring Protection Switching) |
|||||
|
IEEE 802.1Q |
Virtual LANs (VLAN) |
|||||
|
IEEE 802.1X |
Port based and MAC based Network Access Control, Authentication |
|||||
|
IEEE802.3ac |
Max frame size extended to 1522Bytes |
|||||
|
IEEE 802.3ad |
Link aggregation for parallel links with LACP(Link Aggregation Control Protocol) |
|||||
|
IEEE 802.3x |
Flow control for Full Duplex |
|||||
|
IEEE 8 02.1ad |
Stacked VLANs, Q-in-Q |
|||||
|
IEEE 8 02.1p |
LAN Layer 2 QoS/CoS Protocol for Traffic Prioritization |
|||||
|
IEEE 8 02.1ab |
Link Layer Discovery Protocol (LLDP) |
|||||
|
IEEE 802.3az |
EEE (Energy Efficient Ethernet) |
|||||
|
Switch Architecture |
Back-plane (Switching Fabric): 12Gbps (IGS+402SM-4PH24, IGS-402SM-4PU) 22Gbps (IGS+803SM-8PH24) 48Gbps (IGS-1608SM-8PH) Full wire-speed |
|||||
|
Data Processing |
Store and Forward |
|||||
|
Flow Control |
IEEE 802.3x for full duplex mode Back pressure for half duplex mode |
|||||
|
Network Connector
|
4x 10/100/1000Base-T RJ-45 + 2x 100/1000Base-X SFP connector (IGS+402SM-4PH24, IGS-402SM-4PU) 8x 10/100/1000Base-T RJ-45 + 3x 100/1000Base-X SFP connector (IGS+803SM-8PH24) 16x 10/100/1000Base-T RJ-45 + 8x 100/1000Base-X SFP connector (IGS-1608SM-8PH) RJ-45 UTP port support Auto negotiation speed, Auto MDI/MDI-X function, SFP port support 100/1000 dual speed with DDMI |
|||||
|
Console |
R S -232 (R J - 45) Isolated RS-232 port grounding for negative voltage power system, or telecom network application |
|||||
|
PoE standard & RJ-45 pin assignment |
4x IEEE802.3at /802.3af PoE+ (IGS+402SM-4PH24) 4x IEEE 802.3bt /802.3at/ 802.3af PoE++(IGS-402SM-4PU) 8x IEEE 802.3at /IEEE 802.3af PoE+ (IGS+803SM-8PH24, IGS-1608SM-8PH) End-Span, Alternative A mode. 2 pairs PoE, PoE+: (IGS+402SM-4PH24, IGS+803SM-8PH24, IGS-608SM-8PH) Positive (V+) : RJ-45 pin 1, 2. Negative (V-) : RJ-45 pin 3, 6. 4 pairs PoE, PoE++(IGS-402SM-4PU) Positive (V+) : RJ-45 pin 1, 2, 4, 5 Negative (V-) : RJ-45 pin 3, 6, 7, 8 Data (1,2,3,6,4,5,7,8 |
|||||
|
Network Cable
|
UTP/STP above Cat. 5e cable EIA/TIA-568 100-ohm (100m) |
|||||
|
EIA/TIA-568 100-ohm (100m) |
||||||
|
Protocols |
CSMA/CD |
|||||
|
Reverse Polarity Protection |
Supported for power input |
|||||
|
Overload Current Protection |
Supported |
|||||
|
CPU Watch Dog |
Supported |
|||||
|
Power Supply |
IGS-402SM-4PU, IGS-1608SM-8PH: Redundant Dual DC 48V (44~57VDC) input power, and support negative voltage input power for telecom (Removable terminal block ) (50~57V input is recommended for IEEE802.3at PoE+ in 30W applications) (50~57V input is recommended for IEEE802.3bt PoE++ in 60W applications) |
|||||
|
Power Supply |
IGS+402SM-4PH24, IGS+803SM-8PH24: Redundant Dual DC 24/48V (20~57VDC) input power, and support negative voltage input power for telecom network (Removable Terminal Block) Built-in very high efficiency booster(94~97%) to rise up 55 VDC for PoE output Regulated PoE output voltage (55VDC) to stabilize PoE device, and guarantee delivery PoE power |
|||||
