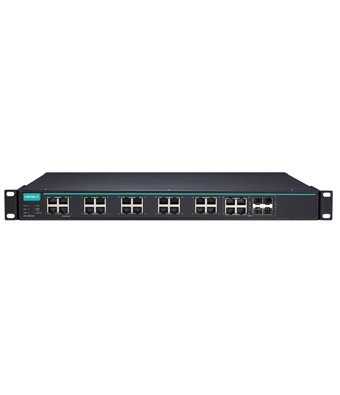

IKS-G6824A-8GSFP-4GTXSFP-HV-HV-T
24G-port Layer 3 full Gigabit managed Ethernet switches
IKS-G6824A serisi, 24 Gigabit Ethernet portuna sahip Layer 3 omurga anahtarıdır ve büyük ölçekli endüstriyel ağlar için ideal bir çözümdür. IKS-G6824A'nın FullGigabit özelliği bant genişliğini arttırarak ağ üzerinde büyük miktarlı video ve ses verilerini hızlı bir şekilde aktarmaya olanak sağlar. Turbo Ring, Turbo Chain ve RSTP/STP desteği mevcuttur. Fansız tasarımı ve izole güç kaynağı ile sistem güvenilirliğini arttırır.
- Layer 3 Routing
- 24 Gigabit Ethernet portu
- 24 Porta kadar fiber pptik bağlantı seçeneği (SFP slot)
- Fansız dizayn ve -40 to 75°C çalışma sıcaklık aralığı (T modellerde)
- Ağ yedekliliği için Turbo Ring, Turbo Chain (recovery time < 50 ms @ 250 switches), RSTP/STP, ve MSTP desteği
- Standart 110 / 220 VAC aralığında, birbirinden izole yedekli güç girişi
|
Layer 3 Full Gigabit managed Ethernet switch with 20 10/100/1000BaseT(X) ports, and 4 10/100/1000BaseT(X) or 100/1000BaseSFP slot combo ports, 2 isolated power supplies (85 to 264 VAC), 0 to 60°C operating temperature |
|
|
Layer 3 Full Gigabit managed Ethernet switch with 12 10/100/1000BaseT(X) ports, 8 100/1000BaseSFP slots and 4 10/100/1000BaseT(X) or 100/1000BaseSFP slot combo ports, 2 isolated power supplies (85 to 264 VAC), 0 to 60°C operating temperature |
|
|
Layer 3 Full Gigabit managed Ethernet switch with 20 100/1000BaseSFP slots and 4 10/100/1000BaseT(X) or 100/1000BaseSFP slot combo ports, 2 isolated power supplies (85 to 264 VAC), 0 to 60°C operating temperature |
|
|
Layer 3 Full Gigabit managed Ethernet switch with 20 10/100/1000BaseT(X) ports, and 4 10/100/1000BaseT(X) or 100/1000BaseSFP slot combo ports, 2 isolated power supplies (85 to 264 VAC), -40 to 75°C operating temperature |
|
|
IKS-G6824A-8GSFP-4GTXSFP-HV-HV-T |
Layer 3 Full Gigabit managed Ethernet switch with 12 10/100/1000BaseT(X) ports, 8 100/1000BaseSFP slots and 4 10/100/1000BaseT(X) or 100/1000BaseSFP slot combo ports, 2 isolated power supplies (85 to 264 VAC), -40 to 75°C operating temperature |
|
Layer 3 Full Gigabit managed Ethernet switch with 20 100/1000BaseSFP slots and 4 10/100/1000BaseT(X) or 100/1000BaseSFP slot combo ports, 2 isolated power supplies (85 to 264 VAC), -40 to 75°C operating temperature |
| Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1X for Authentication IEEE 802.3ad for Port Trunk with LACP |
| • Software Features | |
| Management | IPv4, SNMP v1/v2c/v3, LLDP, Port Mirror, DDM, RMON, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SMTP, RARP, Telnet, Syslog, SNMP Inform, Flow Control, Back Pressure Flow Control |
| Filter | 802.1Q VLAN, GVRP, IGMP v1/v2/v3, GMRP |
| Redundancy Protocols | STP, RSTP, MSTP, Turbo Ring v1/v2, Turbo Chain, Link Aggregation |
| Security | RADIUS, TACACS+, SSL, SSH, Broadcast Storm Protection, Port Lock, Access Control Lists (IKS-G6824A only) |
| Multicast Routing | DVMRP, PIM-DM, PIM-SM, PIM-SSM (IKS-G6824A series) |
| Time Management | SNTP, NTP Server/Client, IEEE 1588v2 PTP (software-based) |
| Industrial Protocols | EtherNet/IP, Modbus/TCP, PROFINET |
| MIB | MIB-II, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Groups 1, 2, 3, 9 |
| Routing Redundancy | VRRP (IKS-G6824A series) |
| • Switch Properties | |
| Priority Queues | 8 |
| Max. Number of VLANs | 256 |
| VLAN ID Range | VID 1 to 4094 |
| IGMP Groups | 4096 |
| MAC Table Size | 16 K |
| Packet Buffer Size | 12 Mbit |
| DRAM Size | 128 MB |
| Flash Size | 16 MB |
| Jumbo Frame Size | 9.6 KB |
| • Interface | |
| Gigabit Ethernet | 10/100/1000BaseT(X) or 100/1000BaseSFP slot |
| Console Port | USB-serial console (Type B connector) |
| Storage Port | USB storage (Type A connector for ABC-02-USB) |
| Alarm Contact | 1 relay output with current carrying capacity of 2 A @ 30 VDC |
| Digital Inputs | 1 input with the same ground, but electrically isolated from the electronics. • +13 to +30 V for state '1” • -30 to +1 V for state '0” • Max. input current: 8 mA |
| • Power Requirements | |
| Input Voltage | 110 to 220 VAC |
| Operating Voltage | 85 to 264 VAC |
| Input Current | Max. 0.67/0.38 A @ 110/220 VAC |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| • Physical Characteristics | |
| IP Rating | IP30 protection |
| Dimensions | 440 x 44 x 386.9 mm (17.32 x 1.73 x 15.23 in) |
| Weight | 5.1 kg (11.25 lb) |
| Installation | 19-inch rack mounting |
| • Environmental Limits | |
| Operating Temperature | Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Standards and Certifications | |
| Safety | UL 60950-1, EN 60950-1 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: Signal: 10 V IEC 61000-4-8 |
| Rail Traffic | EN 50121-4 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 Note: Please check Moxa’s website for the most up-to-date certification status. |
| • MTBF (mean time between failures) | |
| Time | 471,418 hrs |
| Standard | Telcordia (Bellcore), GB |
| • Warranty | |
| Warranty Period | 5 years |
