CTC Union

IMC-100-E-SC002

Stokta 0 Adet Var

115,00 EUR + KDV

Kategori

Ethernet-Fiber Çeviriciler , Tüm Ürünler

Gelince Haber Ver

Fiyatı Düşünce Haber Ver

Karşılaştır

Ürün Bilgisi

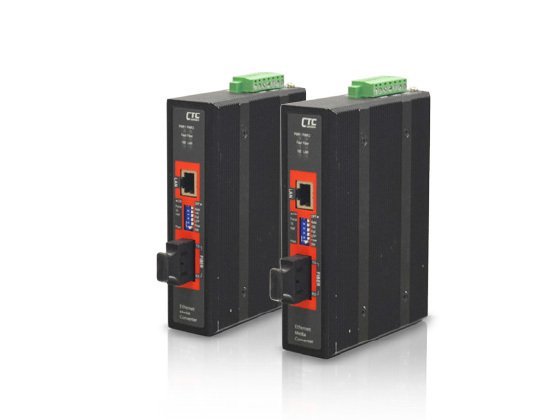

IMC-100-E-SC002

10/100Base-TX to 100Base-FX Fiber Converter

Datasheet Link : IMC-100 Serisi

IMC-100, elektriksel 10/100Base-TX ve optik 100Base-FX Ethernet arasında dönüşümü destekleyen yönetilmeyen endüstriyel sınıf Fast-Ethernet ortam dönüştürücüsüdür. DIP-Switch ile gerçekleştirilebilen basit ayarlar ile auto-negotiation, 10/100 hız, ve half-full duplex için UTP port konfigüre edilebilir. Yine DIP-Switch ile LFPT (Link Fault Pass Through), Ethernet akış denetimi (802.3x), anahtar modu (depolama ve iletim) veya Dönüştürücü Modu (Jumbo frame Pass-through) konfigürasyonları yapılabilir. Sağlam DIN rayı veya duvar montajlı opsiyonları ile endüstriyel ağ ve akıllı ulaşım sistemleri (ITS) gibi zorlu ortamlar için uygundur.

Redundant dual DC input power 12/24/48VDC (9.6 ~ 58VDC)
IP30 rugged metal housing and fanless
Wide operating temperature -40 ~ 75°C (IMC-100-E )
UL60950-1, CE, FCC, Rail traffic EN50121-4 certification
Heavy industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
Store-and-Forward mode and Pass Through mode (set by DIP SW)
Conversion between 10/100Base-TX and 100Base-FX cable interface
Provides a DIP-Switch to set functions
Supports LFPT (Link Fault Pass Through)

ÜRÜN SİPARİŞ KODLARI :

IMC-100-E-SC002	Industrial 10/100Base-TX to 100Base-FX SC 2Km 1310nm 11dB MM, daul 12/24/48VDC power input, -20~75oC
IMC-100-E-ST002	Industrial 10/100Base-TX to 100Base-FX ST 2Km 1310nm 11dB MM, daul 12/24/48VDC power input, -20~75oC
IMC-100-E-SC030	Industrial 10/100Base-TX to 100Base-FX SC 30Km 1310nm 19dB SM, daul 12/24/48VDC power input, -20~75oC
IMC-100-E-ST030	Industrial 10/100Base-TX to 100Base-FX ST 30Km 1310nm 19dB SM, daul 12/24/48VDC power input, -20~75oC
IMC-100-E-SC050	Industrial 10/100Base-TX to 100Base-FX SC 50Km 1310nm 28dB SM, daul 12/24/48VDC power input, -20~75oC
IMC-100-E-ST050	Industrial 10/100Base-TX to 100Base-FX ST 50Km 1310nm 28dB SM, daul 12/24/48VDC power input, -20~75oC
IMC-100-E-SC080	Industrial 10/100Base-TX to 100Base-FX SC 80Km 1310nm 34dB SM, daul 12/24/48VDC power input, -20~75oC
IMC-100-E-ST080	Industrial 10/100Base-TX to 100Base-FX ST 80Km 1310nm 34dB SM, daul 12/24/48VDC power input, -20~75oC
IMC-100-E-SC020A	Industrial 10/100Base-TX to 100Base-FX Bidi SC 20Km TX1310/RX1550nm(A type) 17dB SM, daul 12/24/48VDC power input, -20~75oC
IMC-100-E-SC020B	Industrial 10/100Base-TX to 100Base-FX Bidi SC 20Km TX1550/RX1310nm(B type) 17dB SM, daul 12/24/48VDC power input, -20~75oC
IMC-100-E-SC040A	Industrial 10/100Base-TX to 100Base-FX Bidi SC 40Km TX1310/RX1550nm(A type) 26dB SM, daul 12/24/48VDC power input, -20~75oC
IMC-100-E-SC040B	Industrial 10/100Base-TX to 100Base-FX Bidi SC 40Km TX1550/RX1310nm(B type) 26dB SM, daul 12/24/48VDC power input, -20~75oC
IMC-100-E-SC060A	Industrial 10/100Base-TX to 100Base-FX Bidi SC 60Km TX1310/RX1550nm(A type) 29dB SM, daul 12/24/48VDC power input, -20~75oC
IMC-100-E-SC060B	Industrial 10/100Base-TX to 100Base-FX Bidi SC 60Km TX1550/RX1310nm(B type) 29dB SM, daul 12/24/48VDC power input, -20~75oC

Çalışma Sıcaklığı

-20/+75C

TEKNİK

Standard	IEEE 802.3 10Base-T 10Mbit/s Ethernet
	IEEE 802.3u 100Base-TX, 100Base-FX, Fast Ethernet
	IEEE 802.3x Flow Control
RJ45 Ports	10/100Base-TX Auto MDI/MDI-X and Auto-Negotiation Function Supports UTP CAT.5e Twisted Pair cable
Fiber Ports	100Base-FX (SC/ST connectors)
Switch Architecture	Store and Forward in Switch mode
Switch Architecture	Supports 1024 MAC addresses in Switch mode
Ethernet Packet length	2046Byte (Max) in Switch mode
Jumbo Frame	9K bytes in Pass through (Converter mode)
Fiber Parameters	Fiber Cable (Multi-mode): 50/125um,62.5/125um
	Fiber Cable (Single-mode): 9/125um
	Wavelength: 1310nm (Multi-mode/Single-mode)
	Available distance: 2KM (Multi-mode) 30KM (Single-mode) 50KM (Single-mode)
Link Fault Pass Through Through (LFPT)	TX- Fiber: If TX port link down, the media converter will force Fiber port to link down
Link Fault Pass Through Through (LFPT)	Fiber-TX: If Fiber port link down, the media converter will force TX port to link down
DIP Switch	TP Auto Negotiation OFF: Auto Mode, ON: Force Mode
	Force TP Speed OFF: 100 Mbps, ON: 10 Mbps
	Force TP Duplex OFF: Full Duplex, ON: Half Duplex
	ON: Enables LFPT (Link Fault Pass through) OFF: Disables LFPT (Link Fault Pass through)
	ON: Flow Control Enable OFF: Flow Control Disable
	OFF: Switching mode ON: Pass through Converter mode
Connector	Fiber: SC (Multi-mode, 2km), SC (Single-mode, 30km, 50KM) ST (Multi-mode, 2km), ST (Single-mode, 30km, 50KM)
	RJ-45 Socket: CAT.5e (10/100Mbps) Twisted Pair cable
	Auto MDI/MDI-X and Auto-Negotiation Function Support
LED	PWR 1 (Green): ON: Power1 active/ OFF: Power1 is inactive
	PWR 2 (Green): ON: Power2 active/ OFF: Power2 is inactive
	Fault (Red): ON: Fiber or TP has failed OFF: TP are functional
	Fiber (Green): ON : Connected to network OFF: Not connected to network/ BLK: Receive/Transmit Data
	100 (Amber): ON: 100Mbps/ OFF: 10Mbps
	LAN (Green): ON : Connected to network OFF: Not connected to network/ BLK: Networking is active
Reverse Polarity Protection	Supported for power input
Overload Current Protection	Supported
Power Supply	12/24/48VDC(9.6~58VDC), Redundant power with polarity reverse protect function and removable terminal block
Alarm Relay Contact	Relay outputs with current carrying capacity of 1A@24VDC
Removable Terminal Block	Provides 2 redundant power, alarm relay contact
Power Consumption	2.9W
Operating Humidity	5% ~ 95% (Non-condensing)
Operating Temperature	-40 ~ 75°C (IMC-100-E)
Storage Temperature	-40 ~ 85°C
Housing	Rugged Metal, IP30 Protection and fanless
Dimensions	106 x 38.6 x 142.1mm (D X W X H)
Weight	0.62kg
Installation	DIN Rail mounting, or wall mounting (Optional)
MTBF	1,199,572 Hours MIL-HDBK-217
Warranty	5 years

Certification
EMI	CE
EMI	FCC Part 15 Subpart B Class A, CE
Railway Traffic	EN50121-4
Immunity for Heavy Industrial Environment	EN61000-6-2
Emission for Heavy Industrial Environment	EN61000-6-4
EMS	EN61000-4-2 (ESD) Level 3, Criteria B
	EN61000-4-3 (RS) Level 3, Criteria A
	EN61000-4-4 (Burst) Level 3, Criteria A
	EN61000-4-5 (Surge) Level 3, Criteria B
	EN61000-4-6 (CS) Level 3, Criteria A
	EN61000-4-8 (PFMF, Magnetic Field) Field Strength: 300A/m, Criteria A
Safety	UL60950-1
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
