CTC Union

IMC-1000C-E-SC020B

Stokta 0 Adet Var

164,00 EUR + KDV

Kategori

Ethernet-Fiber Çeviriciler , Tüm Ürünler

Gelince Haber Ver

Fiyatı Düşünce Haber Ver

Karşılaştır

Ürün Bilgisi

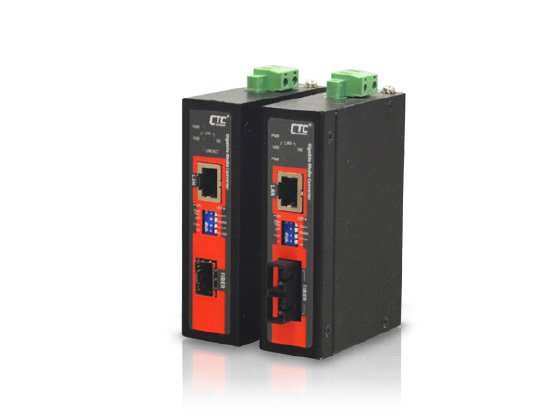

IMC-1000C-E-SC020B

100/1000Base-T to 1000Base-SX/LX Fiber Converter

Datasheet Link : IMC-1000C / IMC-1000CS Serisi

Bu modeller, elektriksel 10/100/1000Base-T ve optik 1000Base-FX Ethernet arasında dönüşümü destekleyen yönetilemez endüstriyel sınıf Gigabit Ethernet medya dönüştürücüleridir. DIP-Switch ile gerçekleştirilebilen basit ayarlar ile 10/100/1000 hız, ve half-full duplex için UTP port konfigüre edilebilir. Yine DIP-Switch ile LFPT (Link Fault Pass Through), anahtar modu (depolama ve iletim) veya Dönüştürücü Modu (Jumbo frame Pass-through) konfigürasyonları yapılabilir. Sağlam DIN rayı veya duvar montajlı opsiyonları ile endüstriyel ağ ve akıllı ulaşım sistemleri (ITS) gibi zorlu ortamlar için uygundur.

DC input power 12/24/48VDC (9.6 ~ 60VDC) or 24VAC (18~36VAC)
IP30 rugged metal housing and fanless
Wide operating temperature -20 ~ 75°C
CE, FCC, Railway traffic EN50121-4 certification
Heavy industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
Store-and-Forward mode and Pass through mode (set by DIP SW)
Conversion between 10/100/1000Base-T and 1000Base-X Fiber cable interface
Provides a DIP-Switch to set functions
Supports LFPT (Link Fault Pass Through)

ÜRÜN SİPARİŞ KODLARI :

IMC-1000CS-E	Industrial 10/100/1000Base-T to 100/1000Base-X SFP convertor, daul 12/24/48VDC power input, -20~75oC
IMC-1000C-E-SC001	Industrial 10/100/1000Base-TX to 1000Base-X SC 500m 850nm 8dB MM, daul 12/24/48VDC power input, -20~75oC
IMC-1000C-E-SC002	Industrial 10/100/1000Base-TX to 1000Base-X SC 2Km 1310nm 10dB MM, daul 12/24/48VDC power input, -20~75oC
IMC-1000C-E-SC020	Industrial 10/100/1000Base-TX to 1000Base-X SC 20Km 1310nm 15dB SM, daul 12/24/48VDC power input, -20~75oC
IMC-1000C-E-SC040	Industrial 10/100/1000Base-TX to 1000Base-X SC 40Km 1310nm 24dB SM, daul 12/24/48VDC power input, -20~75oC
IMC-1000C-E-SC020A	Industrial 10/100/1000Base-TX to 1000Base-X Bidi SC 20Km TX1310/RX1550nm(A type) 15dB SM, daul 12/24/48VDC power input, -20~75oC
IMC-1000C-E-SC020B	Industrial 10/100/1000Base-TX to 1000Base-X Bidi SC 20Km TX1550/RX1310nm(B type) 15dB SM, daul 12/24/48VDC power input, -20~75oC

Çalışma Sıcaklığı

-20/+75C

TEKNİK

Standard	IEEE 802.3 10Base-T 10Mbit/s Ethernet
	IEEE 802.3u 100Base-TX, 100Base-FX, Fast Ethernet
	IEEE 802.3ab 1000Base-T Gbit/s Ethernet over twisted pair
	IEEE 802.3z 1000Base-X Gbit/s Ethernet over Fiber-Optic
	IEEE 802.3x Flow Control
RJ45 Ports	10/100/1000Base-T Auto MDI/MDI-X and Auto-Negotiation Function Supports UTP CAT.5e Twisted Pair cable
Fiber Ports	1000Base-SX/LX SC (IMC-1000C) 100/1000Base-X SFP Slot (IMC-1000CS)
Data Process Architecture	Store and Forward mode or Pass through mode set by DIP SW
Jumbo Frame	9K bytes
Fiber Parameters	Fiber Cable (Multi-mode): 50/125um,62.5/125um
	Fiber Cable (Single-mode): 9/125um Wavelength: 1310nm (Multi-mode/Single-mode)
	Available distance: 2KM (Multi-mode) 30KM (Single-mode) 50KM (Single-mode)
	Distance depend on SFP Fiber Transceiver (IMC-1000CS)
Link Fault Pass Through Through (LFPT)	TX- Fiber: If TX port link down, the media converter will force Fiber port to link down
Link Fault Pass Through Through (LFPT)	Fiber-TX: If Fiber port link down, the media converter will force TX port to link down
DIP Switch	Fiber Duplex ON: Force OFF: Auto
	Fiber Speed: OFF: 1000Base-X ON: 100Base-FX (IMC-1000CS)
	LFPT ON: Enables LFPT (Link Fault Pass Through) OFF: Disables LFPT
	Architecture OFF: Switching mode ON: Pass through Converter mode
Connector	Fiber: SC (Multi-mode, 500m) SC (Single-mode; 20km, 40KM) (IMC-1000C) SFP Slot (IMC-1000CS)
Connector	RJ-45 Socket: CAT.5e Twisted Pair cable Auto MDI/MDI-X and Auto-Negotiation Function Supports
LED	Per Unit : Power (Green)
	SFP/Fiber port Link/Act (Yellow)
	RJ-45 port: Speed & Link/Act 10/100 (Green), 1000 (Yellow)
Reverse Polarity Protection	Supported for power input
Overload Current Protection	Supported
Power Supply	12/24/48VDC(9.6~60VDC) or 24VAC (18~36VAC) with polarity reverse protect function and removable terminal block
Power Consumption	12VDC Input Voltage ~ 2.1W (IMC-1000C) 1.8W (IMC-1000CS)
	24VDC Input Voltage ~ 2.2W (IMC-1000C) 2W (IMC-1000CS)
	48VDC Input Voltage ~ 3.4W (IMC-1000C) 2.9W (IMC-1000CS)
Removable Terminal Block	Provides for input power (2pin)
Operating Humidity	5% ~ 95% (Non-condensing)
Operating Temperature	-20 ~ 75°C (IMC-1000C-E, IMC-1000CS-E)
Storage Temperature	-40 ~ 85°C
Housing	Rugged Metal, IP30 Protection and fanless
Dimensions	70 x 30 x 103mm (D X W X H)
Weight	220g (IMC-1000C) / 215g (IMC-1000CS)
Installation	DIN Rail mounting, or wall mounting (Optional)
MTBF	1,511,224 Hours (IMC-1000C) 1,789,658 Hours (IMC-1000CS) MIL-HDBK-217
Warranty	5 years

Certification
EMC	CE
EMI (ElectromagneticInterference)	FCC Part 15 Subpart B Class A, CE
Railway Traffic	EN50121-4
Immunity for Heavy Industrial Environment	EN61000-6-2
Emission for Heavy Industrial Environment	EN61000-6-4
EMS	EN61000-4-2 (ESD) Level 3, Criteria B
	EN61000-4-3 (RS) Level 3, Criteria A
	EN61000-4-4 (Burst) Level 3, Criteria A
	EN61000-4-5 (Surge) Level 3, Criteria B
	EN61000-4-6 (CS) Level 3, Criteria A
	EN61000-4-8 (PFMF, Magnetic Field) Field Strength: 300A/m, Criteria A
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
