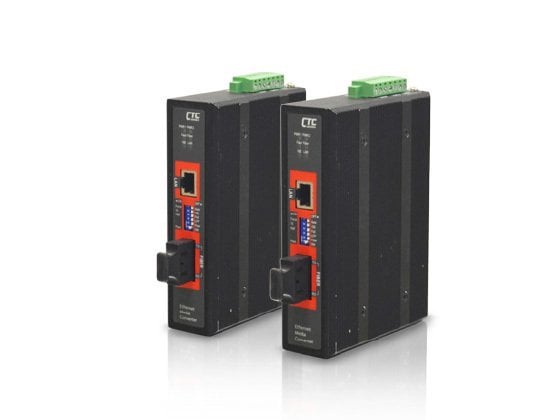

IMC-100C-E-SC030

10/100Base-TX to 100Base-FX Fiber Converter (Compact)

IMC-100C, elektriksel 10/100Base-TX ve optik 100Base-FX Ethernet arasında dönüşümü destekleyen yönetilmeyen endüstriyel sınıf kompakt boyutlu Fast-Ethernet ortam dönüştürücüsüdür. DIP-Switch ile gerçekleştirilebilen basit ayarlar ile 10/100 hız, ve half-full duplex için UTP port konfigüre edilebilir. Yine DIP-Switch ile LFPT (Link Fault Pass Through), anahtar modu (depolama ve iletim) veya Dönüştürücü Modu (Jumbo frame Pass-through) konfigürasyonları yapılabilir. Sağlam DIN rayı veya duvar montajlı opsiyonları ile endüstriyel ağ ve akıllı ulaşım sistemleri (ITS) gibi zorlu ortamlar için uygundur.

DC input power 12/24/48VDC (9.6 ~ 60VDC) or 24VAC (18~36VAC)
IP30 rugged metal housing, compact size and fanless
Wide operating temperature -40 ~ 75°C (IMC-100C-E )
CE, FCC, railway traffic EN50121-4 certification
Heavy industrial grad EMS, EMI, EN61000-6-2, EN61000-6-4 certified
Store-and-Forward mode and Pass Through mode (set by DIP SW)
Support LFPT (Link Fault Pass Through)
Conversion between 10/100Base-TX and 100Base-FX cable interface
Provides a 4 pin DIP-Switch to set functions

ÜRÜN SİPARİŞ KODLARI :

IMC-100C-E-SC002	Industrial 10/100Base-TX to 100Base-FX SC 2Km 1310nm 11dB MM, daul 12/24/48VDC power input, -20~75oC
IMC-100C-E-ST002	Industrial 10/100Base-TX to 100Base-FX ST 2Km 1310nm 11dB MM, daul 12/24/48VDC power input, -20~75oC
IMC-100C-E-SC030	Industrial 10/100Base-TX to 100Base-FX SC 30Km 1310nm 19dB SM, daul 12/24/48VDC power input, -20~75oC
IMC-100C-E-ST030	Industrial 10/100Base-TX to 100Base-FX ST 30Km 1310nm 19dB SM, daul 12/24/48VDC power input, -20~75oC
IMC-100C-E-SC050	Industrial 10/100Base-TX to 100Base-FX SC 50Km 1310nm 28dB SM, daul 12/24/48VDC power input, -20~75oC
IMC-100C-E-ST050	Industrial 10/100Base-TX to 100Base-FX ST 50Km 1310nm 28dB SM, daul 12/24/48VDC power input, -20~75oC
IMC-100C-E-SC080	Industrial 10/100Base-TX to 100Base-FX SC 80Km 1310nm 34dB SM, daul 12/24/48VDC power input, -20~75oC
IMC-100C-E-ST080	Industrial 10/100Base-TX to 100Base-FX ST 80Km 1310nm 34dB SM, daul 12/24/48VDC power input, -20~75oC
IMC-100C-E-SC020A	Industrial 10/100Base-TX to 100Base-FX Bidi SC 20Km TX1310/RX1550nm(A type) 17dB SM, daul 12/24/48VDC power input, -20~75oC
IMC-100C-E-SC020B	Industrial 10/100Base-TX to 100Base-FX Bidi SC 20Km TX1550/RX1310nm(B type) 17dB SM, daul 12/24/48VDC power input, -20~75oC
IMC-100C-E-SC040A	Industrial 10/100Base-TX to 100Base-FX Bidi SC 40Km TX1310/RX1550nm(A type) 26dB SM, daul 12/24/48VDC power input, -20~75oC
IMC-100C-E-SC040B	Industrial 10/100Base-TX to 100Base-FX Bidi SC 40Km TX1550/RX1310nm(B type) 26dB SM, daul 12/24/48VDC power input, -20~75oC

Çalışma Sıcaklığı

-20/+75C

TEKNİK

Standard	IEEE 802.3 10Base-T 10Mbit/s Ethernet
	IEEE 802.3u 100Base-TX, 100Base-FX, Fast Ethernet
	IEEE 802.3x Flow Control
RJ45 Ports	10/100Base-TX Auto MDI/MDI-X and Auto-Negotiation Function Supports UTP CAT.5e Twisted Pair cable
Fiber Ports	100Base-FX (SC/ST connectors)
Switch Architecture	Store and Forward in Switch mode
Switch Architecture	Supports 1024 MAC addresses in Switch mode
Ethernet Packet length	2046Byte (Max) in Switch mode
Jumbo Frame	9K bytes in Pass through (Converter mode)
Fiber Parameters	Fiber Cable (Multi-mode): 50/125um,62.5/125um
	Fiber Cable (Single-mode): 9/125um
	Wavelength: 1310nm (Multi-mode/Single-mode)
	Available distance: 2KM (Multi-mode) 30KM (Single-mode) 50KM (Single-mode)
Link Fault Pass Through Through (LFPT)	TX- Fiber: If TX port link down, the media converter will force Fiber port to link down
Link Fault Pass Through Through (LFPT)	Fiber-TX: If Fiber port link down, the media converter will force TX port to link down
DIP Switch	Force Fiber port Duplex ON: Half Duplex OFF: Full Duplex
	LFPT ON: Enables LFPT (Link Fault Pass Through) OFF: Disables LFPT
	Architecture OFF: Switching mode ON: Pass through Converter mode
Connector	Fiber: SC (Multi-mode, 2km), SC (Single-mode, 30km, 50KM) ST (Multi-mode, 2km), ST (Single-mode, 30km, 50KM)
	RJ-45 Socket: CAT.5e (10/100Mbps) Twisted Pair cable
	Auto MDI/MDI-X and Auto-Negotiation Function Support
LED	PWR (Green): ON: Power active/ OFF: Power is inactive
	Fiber (Green): LNK/Act (Green) : Link&Active Dup (Green) : Fiber port Full or Half duplex
	LAN : 100 (Green): 100M Link & Active 10 (Green) : 10M Link & Active
Reverse Polarity Protection	Supported for power input
Overload Current Protection	Supported
Power Supply	12/24/48VDC(9.6~58VDC) or 24VAC (18~36VAC), polarity reverse protect function and removable terminal block
Removable Terminal Block	Provides for 1xDC input power (2pin)
Power Consumption	12VDC Input Voltage ~ 1.8W
	24VDC Input Voltage ~ 1.8W
	48VDC Input Voltage ~ 2.1W
Operating Humidity	5% ~ 95% (Non-condensing)
Operating Temperature	-40 ~ 75°C (IMC-100C-E)
Storage Temperature	-40 ~ 85°C
Housing	Compact size, Rugged Metal, IP30 Protection and fanless
Dimensions	70 x 30 x 103mm (D X W X H)
Weight	215g
Installation	DIN Rail mounting, or wall mounting (Optional)
MTBF	1,558,180 Hours MIL-HDBK-217
Warranty	5 years

Certification
EMC	CE
EMI (ElectromagneticInterference)	FCC Part 15 Subpart B Class A, CE
Railway Traffic	EN50121-4
Immunity for Heavy Industrial Environment	EN61000-6-2
Emission for Heavy Industrial Environment	EN61000-6-4
EMS	EN61000-4-2 (ESD) Level 3, Criteria B
	EN61000-4-3 (RS) Level 3, Criteria A
	EN61000-4-4 (EFT) Level 3, Criteria A
	EN61000-4-5 (Surge) Level 3, Criteria B
	EN61000-4-6 (CS) Level 3, Criteria A
	EN61000-4-8 (PFMF) Field Strength: 300A/m, Criteria A
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
