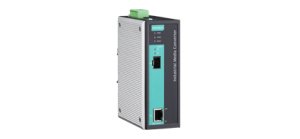

IMC-101G-T
Industrial Gigabit Ethernet to fiber media converter
IMC-101G endüstriyel gigabit modüler çeviriciler, zorlu endüstriyel ortamlarda güvenilir ve kararlı 10/100/1000BaseT(X) - 1000BaseSX/LX/LHX/ZX ortam dönüşümü sağlamak için tasarlanmıştır. IMC-101G'nin endüstriyel tasarımı, endüstriyel otomasyon uygulamalarınızın çalışma sürekliliğini sağlar ve her bir IMC-101G bir röle çıkışı uyarı alarmı içerir. Tüm IMC-101G modelleri %100 yanma testine tabi tutulur.
- 10/100/1000BaseT(X) and 1000BaseSFP slot supported
- Link Fault Pass-through (LFP)
- Power failure, port break alarm by relay output
- Redundant power input
- -40 to 75°C operating temperature range (T models)
- Designed for hazardous locations (Class 1 Div. 2/Zone 2, IECEx)
ÜRÜN SİPARİŞ KODLARI :
|
Industrial 10/100/1000BaseT(X) to 1000BaseSX/LX/LHX/ZX media converter, 0 to 60°C |
|
|
Industrial 10/100/1000BaseT(X) to 1000BaseSX/LX/LHX/ZX media converter, -40 to 75°C |
|
|
Industrial 10/100/1000BaseT(X) to 1000BaseSFP media converter, IECEx, 0 to 60°C operating temperature |
|
|
Industrial 10/100/1000BaseT(X) to 1000BaseSFP media converter, IECEx, -40 to 75°C operating temperature |
| • Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LSX/LX/LH/LHX/ZX/E2X |
| • Interface | |
| RJ45 Ports | 10/100/1000BaseT(X) |
| Fiber Ports | 1000BaseSFP slot |
| LED Indicators | PWR1, PWR2, FAULT, 10/100M (TP port), 1000M (TP and Fiber port) |
| DIP Switches | Port break alarm mask, Link Fault Pass-through, SFP Auto/Force |
| Alarm Contact | One relay output with current carrying capacity of 1 A @ 24 VDC |
| • Physical Characteristics | |
| Housing | Metal, IP30 protection |
| Dimensions | 53.6 x 135 x 105 mm (2.11 x 5.32 x 4.13 in) |
| Weight | 630 g (1.39 lb) |
| Installation | DIN-rail mounting, wall mounting (with optional kit) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | 12 to 45 VDC redundant inputs |
| Input Current | 220 mA @ 45 VDC max. |
| Connection | Removable terminal block |
| Overload Current Protection | 2.5 A |
| Reverse Polarity Protection | Present |
| • Standards and Certifications | |
| Safety | UL 508 |
| Hazardous Location | UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nC nL IIC T4, IECEx |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | EN 61000-4-2 (ESD): Contact: 6 kV; Air: 8 kV EN 61000-4-3 (RS): 80 MHz to 1 GHz: 3 V/m EN 61000-4-4 (EFT): Power: 2 kV; Signal: 2 kV EN 61000-4-5 (Surge): Power: 1 kV; Signal: 1 kV EN 61000-4-6 (CS): 150 kHz to 80 MHz: 3 V/m EN 61000-4-8 (PFMF) EN 610 |
| Green Product | RoHS, CRoHS, WEEE |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| • MTBF (mean time between failures) | |
| Time | 500,540 hrs |
| Standard | Telcordia (Bellcore), GB |
| • Warranty | |
| Warranty Period | 5 years |
