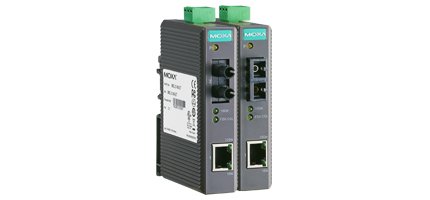

IMC-21-M-SC
Industrial 10/100BaseT(X) to 100BaseFX media converters
IMC-21 medya çevirici serisi, giriş seviyesi 10/100BaseT(X) - 100BaseFX çevirici ürünlerdir. IMC-21 serisi 12/48 VDC güç girişlerini destekler. Sağlam donanım tasarımı, ethernet ekipmanınızın zorlu endüstriyel koşullara dayanabilmesini sağlar. IMC-21 dönüştürücüler DIN RAIL veya dağıtım kutularına monte edilebilecek opsiyonlara sahiptir.
- Multi-mode or single-mode, with SC or ST fiber connector
- Link Fault Pass-Through (LFP)
- DIP switches to select FDX/HDX/10/100/Auto/Force
ÜRÜN SİPARİŞ KODLARI :
|
Industrial 10/100BaseT(X) to 100BaseFX media converter, multi mode, SC connector |
|
|
Industrial 10/100BaseT(X) to 100BaseFX media converter, multi mode, ST connector |
|
|
Industrial 10/100BaseT(X) to 100BaseFX media converter, single mode, SC connector |
| • Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for Flow Control |
| • Interface | |
| RJ45 Ports | 10/100BaseT(X) |
| Fiber Ports | 100BaseFX (SC/ST connectors) |
| LED Indicators | Power, 10/100M (TP port), 100M (fiber port), FDX/COL (fiber port) |
| DIP Switches | TP port’s 10/100M, Half/Full modes, and Force/Auto modes, fiber connection’s Full/Half mode, Link Fault Pass-Through (LFP) |
| • Optical Fiber | |
| • Physical Characteristics | |
| Housing | Plastic, IP30 protection |
| Dimensions | 25 x 109 x 97 mm (0.98 x 4.29 x 3.82 in) |
| Weight | 125 g (0.27 lb) |
| Installation | DIN-rail mounting |
| • Environmental Limits | |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Storage Temperature | -40 to 70°C (-40 to 158°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Rated Voltage | 300 mA @ 48 VDC max. |
| Connection | Removable 3-contact terminal block |
| Overload Current Protection | 1.1 A |
| Reverse Polarity Protection | Present |
| • Standards and Certifications | |
| Safety | UL 508 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | EN 61000-4-2 (ESD): Contact: 6 kV; Air: 8 kV EN 61000-4-3 (RS): 80 MHz to 1 GHz: 1 V/m EN 61000-4-4 (EFT): Power: 1 kV; Signal: 1 kV EN 61000-4-5 (Surge): Power: 1 kV; Signal: 1 kV EN 61000-4-6 (CS): 150 kHz to 80 MHz: 3 V/m EN 61000-4-8 (PFMF) EN 61000-4-11 |
| Green Product | RoHS, CRoHS, WEEE |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| • MTBF (mean time between failures) | |
| Time | 353,000 hrs |
| Standard | MIL-HDBK-217F |
| • Warranty | |
| Warranty Period | 5 years |
