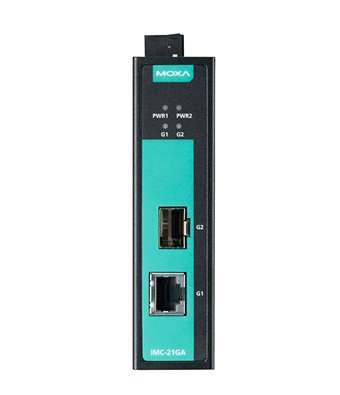

IMC-21GA
Industrial gigabit Ethernet-to-fiber media converters
IMC-21GA serisi, güvenilir 10/100/1000BaseT(X) ile 100/1000Base-SX/ LX veya kullanılacak 100/1000Base SFP modül dönüşümü için kullanılan Gigabit medya dönüştürücülerdir. IMC-21GA serisi, güç tasarrufu ve iletişim performansını arttıran IEEE 802.3az destekler. Tüm IMC-21GA serisi ürünler %100 yanma testine tabi tutulmaktadır.
- 1000Base-SX/LX SC konnektör ve SFP slot
- Link Fault Pass-through (LFP)
- 10K jumbo frame
- Yedekli güç girişi
- -40 to 75°C seçenekli (-T modeli)
- IEEE 802.3az desteği (Energy Efficient Ethernet)
ÜRÜN SİPARİŞ KODLARI :
|
IMC-21GA |
Industrial 10/100/1000BaseT(X) to 100/1000BaseSFP media converter, -10 to 60°C operating temperature |
|
Industrial 10/100/1000BaseT(X) to 100/1000BaseSFP media converter, -40 to 75°C operating temperature |
|
|
Industrial 10/100/1000BaseT(X) to 100/1000Base SC media converter, 0.5 km, -10 to 60°C operating temperature |
|
|
Industrial 10/100/1000BaseT(X) to 100/1000Base SC media converter, 0.5 km, -40 to 75°C operating temperature |
|
|
Industrial 10/100/1000BaseT(X) to 100/1000Base SC media converter, 10 km, -10 to 60°C operating temperature |
|
|
Industrial 10/100/1000BaseT(X) to 100/1000Base SC media converter, 10 km, -40 to 75°C operating temperature |
| • Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3az (Energy Efficient Ethernet) |
| • Interface | |
| RJ45 Ports | 10/100/1000BaseT(X) |
| Fiber Ports | 100/1000Base-SX/LX or 100/1000BaseSFP slot |
| LED Indicators | PWR1, PWR2, G1 (copper port 10M/100M/1000M), G2 (fiber port 100M/1000M) |
| DIP Switches | Fiber speed 100M/1000M, Link Fault Pass-through, Energy Efficient Ethernet |
| • Optical Fiber | |
| Multi-mode Transmission Distance (IMC-21GA-SX-SC) | 1000BaseSX: 0 to 500 m, 850 nm (50/125 μm, 400 MHz*km) |
| Single-mode Transmission Distance (IMC-21GA-LX-SC) | 1000BaseLX: 0 to 10 km, 1310 nm (9/125 μm, 3.5 PS/(nm*km)) |
| • Physical Characteristics | |
| Housing | Metal, IP30 protection |
| Dimensions | 30 x 125 x 79 mm (1.19 x 4.92 x 3.11 in) |
| Weight | 170 g (0.37 lb) |
| Installation | DIN-rail mounting, wall mounting (with optional kit) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | 12 to 48 VDC, redundant inputs |
| Input Current | 285 mA @ 12 VDC |
| Connection | Removable terminal block |
| Overload Current Protection | 1.5 A |
| Reverse Polarity Protection | Present |
| • Standards and Certifications | |
| Safety | UL 60950-1 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | EN 61000-4-2 (ESD): Contact: 6 kV; Air: 8 kV EN 61000-4-3 (RS): 80 MHz to 1 GHz: 1 V/m EN 61000-4-4 (EFT): Power: 1 kV; Signal: 1 kV EN 61000-4-5 (Surge): Power: 1 kV; Signal: 1 kV EN 61000-4-6 (CS): 150 kHz to 80 MHz: 3 V/m EN 61000-4-8 (PFMF) EN 61000-4-11 |
| Green Product | RoHS, CRoHS, WEEE |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| • MTBF (mean time between failures) | |
| Time | IMC-21GA: 2,762,058 hrs IMC-21GA-LX-SC: 2,573,203 hrs IMC-21GA-SX-SC: 2,573,203 hrs |
| Standard | Telcordia (Bellcore), GB |
| • Warranty | |
| Warranty Period | 5 years |
