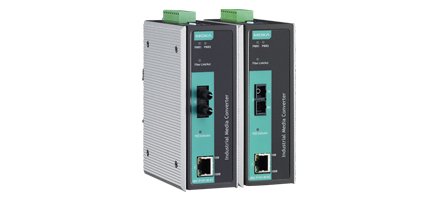

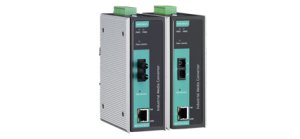

IMC-P101-M-ST
IEEE 802.3af PoE Ethernet-to-fiber media converters
- 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
- IEEE 802.3af compliant PoE PSE equipment
- Power failure alarm by relay output
- Store-and-forward mode and pass through mode
- -40 to 75°C operating temperature range (T models)
- Redundant dual DC power inputs
|
PoE industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode port with SC connector, 0 to 60°C operating temperature |
|
|
PoE industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode port with SC connector, -40 to 75°C operating temperature |
|
|
PoE industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode port with ST connector, 0 to 60°C operating temperature |
|
|
PoE industrial 10/100BaseT(X) to 100BaseFX media converter, multi-mode port with ST connector, -40 to 75°C operating temperature |
|
|
PoE industrial 10/100BaseT(X) to 100BaseFX media converter, single-mode port with SC connector, 0 to 60°C operating temperature |
|
|
PoE industrial 10/100BaseT(X) to 100BaseFX media converter, single-mode port with SC connector, -40 to 75°C operating temperature |
|
|
PoE industrial 10/100BaseT(X) to 100BaseFX media converter, single-mode port with ST connector, 0 to 60°C operating temperature |
|
|
PoE industrial 10/100BaseT(X) to 100BaseFX media converter, single-mode port with ST connector, -40 to 75°C operating temperature |
| Toplam Port Sayısı | : | 2 |
| Çalışma Sıcaklığı | : | 0/+60C |
| 10/100BaseT(X) | : | 1 |
| PoE Port | : | 1 |
| 100BaseFX SFP | : | 1 |
| • Technology | |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X), 100BaseFX IEEE 802.3af for Power-over-Ethernet |
| • Interface | |
| RJ45 Ports | 10/100BaseT(X) |
| Fiber Ports | 100BaseFX (SC/ST connectors) |
| LED Indicators | PWR1, PWR2, Fiber Link, 10/100M (TP port), PSE Indicator |
| DIP Switches | |
| Alarm Contact | One relay output with current carrying capacity of 1 A @ 24 VDC |
| • Optical Fiber | |
| • Physical Characteristics | |
| Housing | Metal |
| Dimensions | 144.45 x 122.3 x 51.65 mm (5.69 x 4.81 x 2.03 in) |
| Weight | Product only: 525 g (1.16 lb) Packaged: 710 g (1.56 lb) |
| Installation | DIN-rail mounting, wall mounting (with optional kit) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| • Power Requirements | |
| Input Voltage | 48 VDC (46 to 57 VDC), redundant inputs |
| Input Current | 130 mA @ 48 VDC max. |
| Connection | Removable terminal block |
| Overload Current Protection | 1.6 A (protects against two signals shorted together) |
| Reverse Polarity Protection | Protects against V+/V- reversal |
| • Standards and Certifications | |
| Safety | UL 508 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | EN 61000-4-2 (ESD): Contact: 8 kV; Air: 15 kV EN 61000-4-3 (RS): 80 MHz to 1 GHz: 3 V/m EN 61000-4-4 (EFT): Power: 4 kV; Signal: 4 kV EN 61000-4-5 (Surge): Power: 2 kV; Signal: 2 kV EN 61000-4-6 (CS): 150 kHz to 80 MHz: 3 V/m EN 61000-4-8 (PFMF) EN 61000-4-11 |
| Green Product | RoHS, CRoHS, WEEE |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| • MTBF (mean time between failures) | |
| Time | 435,210 hrs |
| Standard | Telcordia (Bellcore), GB |
| • Warranty | |
| Warranty Period | 5 years |
