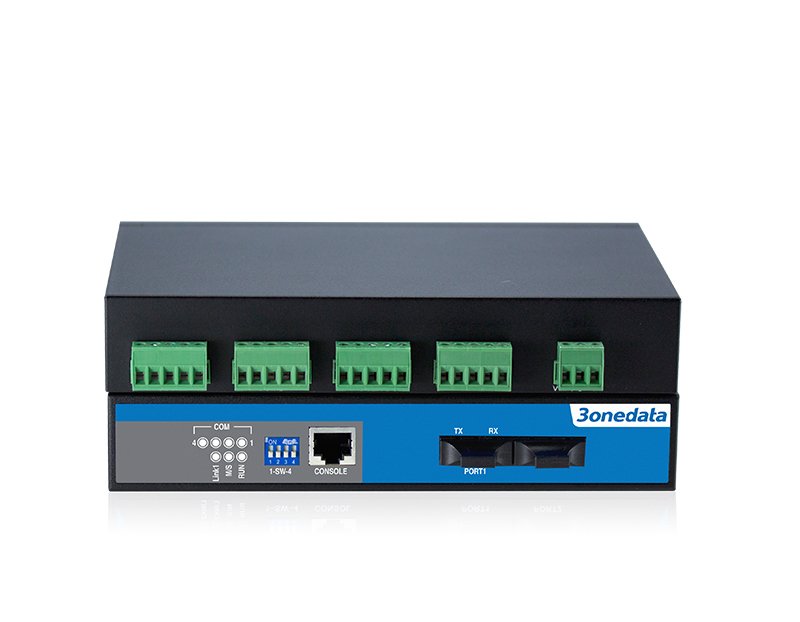

IMF204-2F (SM,ST)
4-port RS-485 ; 2-port Fiber Converter
4-port RS-485 to 2-port optic fiber converter, redundancy, Single-Mode, ST, 20Km, 12-48VDC
- 4 x Seri (RS-485) ve 2 x Fiber port
- Fiber portlar ring network ve otomatik arıza kurtarma <20ms
- 0-115200bps
- 12-48VDC
- -10~70℃ çalışma sıcaklık aralığı
| IMF204-2F (MM,SC) | 4-port RS-485 to 2-port optic fiber converter, redundancy, multi-mode 2Km, 12-48VDC, SC optional |
| IMF204-2F (MM,ST) | 4-port RS-485 to 2-port optic fiber converter, redundancy, multi-mode 2Km, 12-48VDC, ST optional |
| IMF204-2F (SM,SC) | 4-port RS-485 to 2-port optic fiber converter, redundancy, single-mode 20Km, 12-48VDC, SC optional |
| IMF204-2F (SM,ST) | 4-port RS-485 to 2-port optic fiber converter, redundancy, single-mode 20Km, 12-48VDC, ST optional |
| Çalışma Sıcaklığı | : | -10/+70C |
| Toplam Port Sayısı | : | 6 |
| RS-422/485 | : | 4 |
| Konnektör Tipi | : | Terminal Block |
| 100BaseFX | : | 2 |
|
Fiber Port |
Interface quantity: 2 (support ring network redundancy) Interface type: SC/ST/FC optional Transmission speed: 100Mbps Transmission distance: Multimode: 2km Single mode: 20km Transmission wavelength: Multimode: 1310nm Single mode: 1310nm or 1550nm
|
| Serial Port |
Standard: EIA RS-485 Serial port quantity: 4 RS-485 serial ports RS-485 signal: D+, D-, GND Baud rate: 0-115200bps Data bit: 5bit, 6bit, 7bit, 8bit Check bit: None, Even, Odd, Space, Mark Stop bit: 1bit, 1.5bit, 2bit Interface type: 5-pin 5.08mm pitch terminal blocks Direction control: RS-485 adopts automatic data flow control technology Load capacity: RS-485/422 port supports 32-point polling environment (128-point could be customized) Interface protection: 1.5KVAC isolation protection
|
|
LED Indicator
|
Running Indicator, master/slave device status indicator, fiber port indicator, serial port indicator |
|
Power Requirement
|
12~48VDC, 3-pin 5.08 pitch terminal blocks Non-polar power supply
|
|
Power Consumption |
No-load: 2.76W@24VDC Full-load: 2.93W@24VDC
|
|
Environmental Limit |
Operating temperature: -10~70℃ Storage temperature: -10~70℃ Relative humidity: 5%～95% (no condensation)
|
|
Physical Characteristic |
Housing: IP30 protection, metal Installation: wall mounting Dimension (W x H x D): 200mm×35mm×120mm Weight: 603g
|
|
Certification |
CE, FCC, RoHS |
