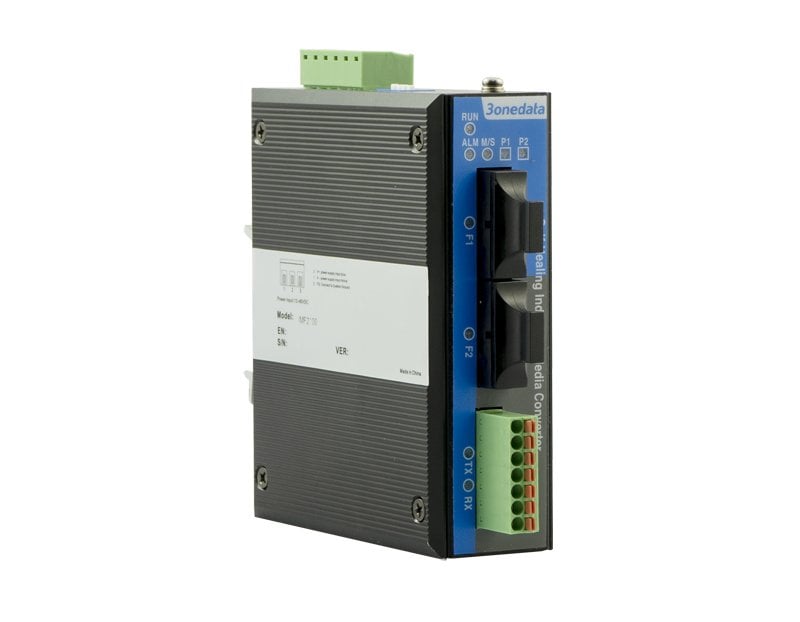

IMF2100-2F-1DI(3IN1)-TB-2P(12-48VDC) (SM,ST)
DIN-Rail Mounting Fiber Converter
RS-232/422/485 to 2 optic fiber, Single-Mode, ST, 20Km, Dual power 12-48VDC
- 1 x Seri (RS-232/422/485) ve 1 veya 2x Fiber port
- Fiber bağlantı hatası ve güç kesilmeleri için alarm çıkışı (Dual Power modellerinde)
- 12-48 VDC
- -40~75℃ çalışma sıcaklık aralığı
| IMF2100-1F-1DI(3IN1)-TB-P(12-48VDC) (MM,SC) | RS-232/422/485 to 1 optic fiber, Multi-Mode, SC, 2Km, 12-48VDC |
| IMF2100-1F-1DI(3IN1)-TB-P(12-48VDC) (MM,ST) | RS-232/422/485 to 1 optic fiber, Multi-Mode, ST, 2Km, 12-48VDC |
| IMF2100-1F-1DI(3IN1)-TB-P(12-48VDC) (SM,SC) | RS-232/422/485 to 1 optic fiber, Single-Mode, SC, 20Km, 12-48VDC |
| IMF2100-1F-1DI(3IN1)-TB-P(12-48VDC) (SM,ST) | RS-232/422/485 to 1 optic fiber, Single-Mode, ST, 20Km, 12-48VDC |
| IMF2100-2F-1DI(3IN1)-TB-2P(12-48VDC) (MM,SC) | RS-232/422/485 to 2 optic fiber, Multi-Mode, SC, 2Km, Dual power 12-48VDC |
| IMF2100-2F-1DI(3IN1)-TB-2P(12-48VDC) (MM,ST) | RS-232/422/485 to 2 optic fiber, Multi-Mode, ST, 2Km, Dual power 12-48VDC |
| IMF2100-2F-1DI(3IN1)-TB-2P(12-48VDC) (SM,SC) | RS-232/422/485 to 2 optic fiber, Single-Mode, SC, 20Km, Dual power 12-48VDC |
| IMF2100-2F-1DI(3IN1)-TB-2P(12-48VDC) (SM,ST) | RS-232/422/485 to 2 optic fiber, Single-Mode, ST, 20Km, Dual power 12-48VDC |
| Çalışma Sıcaklığı | : | -40/+75C |
| Toplam Port Sayısı | : | 3 |
| RS-232/422/485 | : | 1 |
| Konnektör Tipi | : | Terminal Block |
| 100BaseFX | : | 2 |
|
Fiber Port |
Interface quantity: 1/2 (support ring network) Fiber port: optional SC/FC/ST interface Transmission distance: Multimode: 2km Single mode: 20/40/60km Transmission wavelength: Multimode: 1310nm Single mode: 1310nm or 1550nm
|
| Serial Port |
Standard: EIA RS-232C, RS-485, RS-422 Serial port: 1 RS-232/485/422 serial port, can’t be used simultaneously RS-232 signal: RXD, TXD, GND RS-485 signal: D+, D-, GND RS-422 signal: T+, T-, GND, R+, R- Baud rate: 300~115200bps Data bit: 5bit, 6bit, 7bit, 8bit Stop bit: 1bit, 1.5bit, 2bit Check bit: None, Even, Odd, Space, Mark Interface type: 7-pin 3.81mm pitch terminal block Direction control: RS-485 adopts automatic data flow control technology Load capacity: RS-485 supports 32-point polling environment (128-point could be customized) RS-485 pull up/down resistor: 4.7kΩ RS-485 terminal resistance: built-in 120Ω, could be controlled by DIP switch Transmission distance: RS-232 serial port, 15m； RS-485/422 serial port, 1200m
|
| Relay |
Relay quantity: 1 relay alarm output Connection method: 6-pin 5.08mm pitch terminal block(relay occupies 2 pins) Current load: 1A@30VDC, 0.3A@125VAC Default relay status: normally open |
|
LED Indicator
|
Power Supply Indicator, Fiber Port Connection Indicator, Master/Slave Indicator, Alarm Indicator, Serial Port Data Receiving Indicator, Serial Port Data Sending Indicator |
|
Power Requirement
|
Support four optional power solutions, 12~48VDC (single power supply), 12~48VDC (dual power supply), 110~370VDC or 85~265VAC Solution 1 Power supply range: 12~48VDC Connection method: 6-pin 5.08mm pitch terminal blocks (power supply occupies 4 pins) Power supply protection: built-in 2.0A over-current protection and non-polarity Power supply redundancy: support Solution 2 Power supply range: 12~48VDC Connection method: 6-pin 5.08mm pitch terminal blocks (power supply occupies 2 pins) Power supply protection: built-in 2.0A over-current protection and non-polarity Solution 3 Power supply range: 110~370VDC Connection method: 6-pin 5.08mm pitch terminal blocks (power supply occupies 2 pins) Power supply protection: built-in 2.0A over-current protection and non-polarity Solution 4 Power supply range: 85~265VAC Connection method: 6-pin 5.08mm pitch terminal blocks (power supply occupies 2 pins) Power supply protection: built-in 2.0A over-current protection
|
|
Power Consumption |
No-load: ≤3.0W@24VDC Full-load: ≤3.4W@24VDC
|
|
Environmental Limit |
Operating temperature: -40~75℃ Storage temperature: -40~85℃ Relative humidity: 5%～95%(no condensation)
|
|
Physical Characteristic |
Housing: IP40 protection, metal Installation: DIN-Rail mounting Weight: ≤360g Dimension (W x H x D): 35mm×110mm×95mm
|
|
Industrial Standard |
IEC 60950-1 / EN 60950-1: Safety EN 55032: Conducted & Radiated Disturbances IEC 61000-3-2 Harmonic Current Emission IEC 61000-3-3 Voltage Fluctuation & Flicker EN 55024 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-11
|
|
Certification |
CE, FCC, RoHS |
