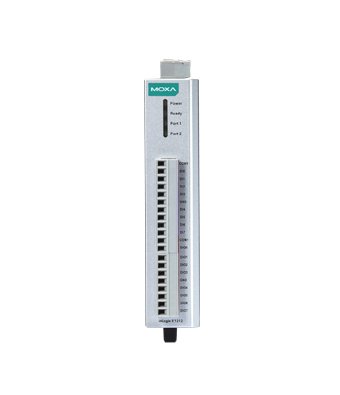

ioLogik E1262
Ethernet remote I/O with 2-port Ethernet switch, 8 TCs
ioLogik E1200 serisi, I/O verilerini almak için en sık kullanılan protokolleri destekler. Moxa'nın Smart I/O serisi, Modbus/TCP, EtherNet/IP protokollerinin yanı sıra SNMP, RESTful API ve Moxa MXIO kütüphanesini de desteklemektedir. IoLogik E1200, I/O verilerini alır ve bu protokollerden herhangi birine aynı anda veri dönüştürerek kolay ve zahmetsiz bağlantı sağlar.
- Esnek ve kullanıcı tanımlı ModbusTCP Slave adresleme olanağı
- Ethernet/IP Scanner mod desteği
- IIoT uygulamaları için RESTful API desteği
- Daisy-chain topolojiler için 2-Ethernet port
- Noktadan noktaya ( peer-to-peer) bağlantı desteği
- MX-AOPC UA Server ile patentli Active OPC iletişim yeteneği ( I/O verilerini doğrudan Active OPC sunucuya gönderir.)
- SNMPv1/v2c desteği ile veriler SNMP ile toplanabilir.
- Modbus/TCP Protocol desteği
- ioSearch yazılımı ile kolay konfigürasyon ve birden fazla cihazı hızlıca devreye alma
- Kullanıcı dostu Web Arabirimi
- MXIO kütüphanesi ile Windows ve Linux plaformlarında I/O Yönetimi
- UL/cUL Class I Division 2 ve ATEX Zone 2 sertifikasyonları
ÜRÜN SİPARİŞ KODLARI :
|
ioLogik E1262 |
Ethernet Remote I/O with 2-port Ethernet switch and 8 TCs |
|
Ethernet Remote I/O with 2-port Ethernet switch and 8 TCs, -40 to 75°C operating temperature |
DAISY-CHAIN TOPOLOGY :
| • Inputs and Outputs | |
| Thermocouples | 8 channels |
| Isolation | 3k VDC or 2k Vrms |
| • Thermocouple | |
| Sensor Type | J (0 to 750°C), K (-200 to 1250°C), T (-200 to 350°C), E (-200 to 900°C), R (-50 to 1600°C), S (-50 to 1760°C), B (600 to 1700°C), N (-200 to 1300°C) |
| Millivolt Type | • Mode: ±78.126 mV, ±39.062 mV, ±19.532 mV • Fault and over-voltage protection: -35 to +35 VDC (power off) -25 to +30 VDC (power on) |
| Sampling Rate | • All channels: 12 samples/sec • Per channel: 1.5 samples/sec • Only one channel enabled: 12 samples/sec |
| Resolution | 16 bits |
| Accuracy | ±0.1% FSR @ 25°C ±0.3% FSR @ -40 and 75°C |
| Input Impedance | 10 mega-ohms |
| • Power Requirements | |
| Input Voltage | 12 to 36 VDC |
| Input Current | 118 mA @ 24 VDC |
| • MTBF (mean time between failures) | |
| Time | 631,418 hrs |
| Standard | Telcordia SR332 |
| • Common Specifications | |
| • LAN | |
| Ethernet | 2 switched 10/100 Mbps RJ45 ports |
| Protection | 1.5 kV magnetic isolation |
| Protocols | Modbus/TCP (Slave), EtherNet/IP*, SNMPv1/v2c, RESTful API, TCP/IP, UDP, DHCP, BOOTP, HTTP |
| *Requires online registration at https://www.moxa.com/Event/DAC/2016/Smart_EIP_IO/index.htm (available free of charge) | |
| • Physical Characteristics | |
| Wiring | I/O cable max. 14 AWG |
| Dimensions | 27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in) |
| Weight | Under 200 g (0.44 lb) |
| Mounting | DIN rail or wall |
| • Environmental Limits | |
| Operating Temperature | Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| Altitude | Up to 2000 m |
| Note | Please contact Moxa if you require products guaranteed to function properly at higher altitudes. |
| • Standards and Certifications | |
| Safety | UL 508 |
| EMC | EN 55032, EN 55024, EN 61000-3-2/3-3, EN 61000-6-2/6-4 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 |
| Hazardous Location | Class 1 Division 2, ATEX Zone 2 |
| Green Product | RoHS, CRoHS, WEEE |
| Note | Please check Moxa’s website for the most up-to-date certification status. |
| • Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
| Note | Because of the limited lifetime of power relays, products that use this component are covered by a 2-year warranty. |
