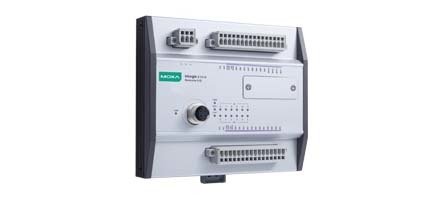

ioLogik E1510-M12-T
Ethernet remote I/O with M12 connector, 12 DIs
ioLogik E1510 serisi, sağlam bir alüminyum gövdeye sahiptir ve EN 50121-3-2, EN 50121-4 ve EN 50155 standartları ile uyumludur. Zorlu çevre koşullarında güvenilir performans sağlamak için -40/+85°C çalışma sıcaklığı aralığına sahiptir.
- Esnek ve kullanıcı tanımlı ModbusTCP Slave adresleme olanağı
- MX-AOPC UA Server ile patentli Active OPC iletişim yeteneği ( I/O verilerini doğrudan Active OPC sunucuya gönderir.)
- Modbus/TCP Protocol desteği
- ioSearch yazılımı ile kolay konfigürasyon ve birden fazla cihazı hızlıca devreye alma
- Kullanıcı dostu Web Arabirimi
- MXIO kütüphanesi ile Windows ve Linux plaformlarında I/O Yönetimi
- Demiryolu uygulamaları için EN 50121-3-2, EN 50121-4, and EN 50155* uyumlulukları
ÜRÜN SİPARİŞ KODLARI :
|
ioLogik E1510-M12-T |
Ethernet remote I/O, M12 connector, 12 DIs, -40 to 85°C operating temperature |
|
Ethernet remote I/O, M12 connector, 12 DIs, Conformal Coating, -40 to 85°C operating temperature |
| • Inputs and Outputs | |
| Digital Inputs | 12 channels (channel-to-channel isolation) |
| Isolation | 3k VDC or 2k Vrms |
| • Digital Input | |
| Sensor Type | Wet Contact (NPN or PNP), Dry Contact |
| I/O Mode | DI or Event Counter |
| Dry Contact | • On: short to GND • Off: open |
| Wet Contact (DI to GND) | • On: 0 to 3 VDC • Off: 10 to 30 VDC |
| Counter Frequency | 250 Hz |
| Digital Filtering Time Interval | Software configurable |
| • MTBF (mean time between failures) | |
| Time | 507,064 hrs |
| Standard | Telcordia SR332 |
| Common Specifications | |
| • LAN | |
| Ethernet | 1 10/100 Mbps, M12 |
| Protection | 1.5 kV magnetic isolation |
| Protocols | Modbus/TCP (slave), TCP/IP, UDP, DHCP, BOOTP, HTTP |
| • Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Input Current | 150 mA @ 24 VDC |
| • Physical Characteristics | |
| Wiring | I/O cable max. 14 AWG |
| Dimensions | 144 x 124 x 30 mm (5.67 x 4.88 x 1.18 in) |
| Weight | Under 825 g (1.82 lb) |
| Mounting | DIN-rail (standard), wall (with optional kit) |
| • Environmental Limits | |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| Altitude | Up to 2000 m |
| Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes. | |
| Conformal Coating | Applies only to -CT models |
| • Standards and Certifications | |
| Safety | UL 508 |
| EMC | EN 61000-6-2/6-4 |
| EMI | FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m 1.4 GHz to 2 GHz: 3 V/m 2 GHz to 2.7 GHz: 1 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: |
| Rail Traffic | EN 50155*, EN 50121-4 |
| *Complies with a portion of EN 50155 specifications. |
|
| Green Product | RoHS, CRoHS, WEEE |
| Note: Please check Moxa’s website for the most up-to-date certification status. | |
| • Warranty | |
| Warranty Period | 5 years |
