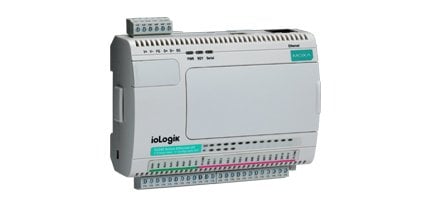

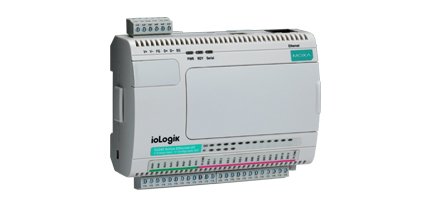

ioLogik E2240
Ethernet Micro RTU Controller with 8 analog inputs and 2 analog outputs, -10 to 60°C operating temperature
ioLogik E2200 serisi, I/O cihazlarını kontrol etmek için proaktif, olay tabanlı raporlama kullanan PC tabanlı bir veri toplama ve kontrol cihazı olan yeni tip Ethernet mikro RTU denetleyicisidir. Aktif OPC Sunucusu geleneksel RTU'ların aksine, SCADA sistemleri ile kesintisiz bağlantı kurma olanağı sunar. Buna ek olarak, bir ağ yönetim sistemi ile haberleşmek için SNMP kullanımı olanağı sağlar. Ethernet mikro RTU denetleyicisinin I/O durumu, kullanıcı tarafından belirlenen koşullara bağlı olarak otomatik olarak raporlanabilir ve kontrol edilebilir. PC tabanlı izleme için yeni olan bu özel durum raporu yaklaşımı, geleneksel yoklama yöntemlerinden çok daha az bant genişliği gerektirir.
- Click & Go Plus kontrol lojiği (maksimum 24)
- MX-AOPC UA Server ile etkin iletişim
- Peer-to-peer iletişim
- SNMPv1/v2c /v3 desteği
- Web tarayıcısı üzerinden kolay yapılandırma
- Windows veya Linux platformları için MXIO kütüphanesi ile basit I/O yönetimi
- -40 ila 75°C çalışma sıcaklık aralığı seçeneği
ÜRÜN SİPARİŞ KODLARI :
|
ioLogik E2240 |
Ethernet Micro RTU Controller with 8 analog inputs and 2 analog outputs, -10 to 60°C operating temperature |
|
ioLogik E2240-T |
Ethernet Micro RTU Controller with 8 analog inputs and 2 analog outputs, -40 to 75°C operating temperature |
| • ioLogik E2240 Specifications | |
| • Inputs and Outputs | |
| Analog Inputs | 8 channels |
| Analog Outputs | 2 channels |
| • Analog Input | |
| Isolation | 3k VDC or 2k Vrms |
| Type | Differential input |
| Resolution | 16 bits |
| I/O Mode | Voltage/Current (software selectable) |
| Input Range | ±150 mV, ±500 mV, ±5 V, ±10 V, 0 to 20 mA, 4 to 20 mA |
| Accuracy | ±0.1% FSR @ 25°C ±0.3% FSR @ -10 and 60°C ±0.5% FSR @ -40 and 75°C |
| Sampling Rate | All channels: • 10 samples/sec for voltage • 6 samples/sec for current Per channel: • 1.25 samples/sec for voltage • 0.75 samples/sec for current Single channel: • 1.25 samples/sec for voltage • 0.75 samples/sec for current |
| Input Impedance | 900 kilo-ohms ohms (min.) |
| Built-in Resistor for Current Input | 120 ohms |
| • Analog Output | |
| Resolution | 12 bits |
| Output Range | 0 to 10 V, 4 to 20 mA |
| Drive Voltage | 15 VDC for current output |
| Accuracy | ±0.1% FSR @ 25°C ±0.3% FSR @ -10 and 60°C ±0.5% FSR @ -40 and 75°C |
| Load Resistor | Less than 250 ohms |
| • Power Requirements | |
| Input Voltage | 12 to 36 VDC |
| Input Current | 190 mA @ 24 VDC |
| • MTBF (mean time between failures) | |
| Time | 155,941 hrs |
| Standard | Telcordia SR332 |
| • Common Specifications | |
| • LAN | |
| Ethernet | 1 10/100 Mbps RJ45 port |
| Protection | 1.5 kV magnetic isolation |
| Protocols | Modbus/TCP (slave), TCP/IP, UDP, DHCP, BOOTP, SNMP, HTTP, CGI, SNTP, SMTP |
| • Serial | |
| Interface | 1 RS-485-2w terminal block port |
| Parity | None |
| Data Bits | 8 |
| Stop Bits | 1 |
| Flow Control | None |
| Baudrate | 1200 to 115200 bps |
| Protocols | Modbus RTU (gateway) |
| • Physical Characteristics | |
| Wiring | I/O cable max. 14 AWG |
| Dimensions | 115 x 79 x 45.6 mm (4.53 x 3.11 x 1.80 in) |
| Weight | under 250 g (0.55 lb) |
| Mounting | DIN-rail or wall |
| • Environmental Limits | |
| Operating Temperature | Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| Altitude | Up to 2000 m |
| Note | Please contact Moxa if you require products guaranteed to function properly at higher altitudes. |
| • Standards and Certifications | |
| Safety | UL 508 |
| EMC | EN 61000-6-2/6-4 |
| EMI | CISPR 22, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m 1.4 GHz to 2 GHz: 3 V/m 2 GHz to 2.7 GHz: 1 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000- |
| Green Product | RoHS, CRoHS, WEEE |
| Note | Please check Moxa’s website for the most up-to-date certification status. |
| • Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
