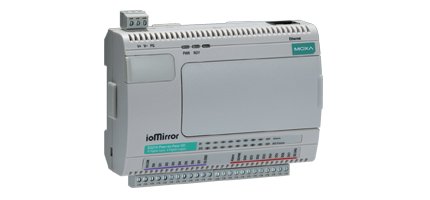

ioMirror E3210
Ethernet Peer-to-Peer I/O with 8 digital inputs and 8 digital outputs
ioMirror E3210, 8 dijital giriş, 8 dijital çıkış ve 10/100M Ethernet içerir. 8 adede kadar dijital giriş ve çıkış sinyali ethernet üzerinden başka bir ioMirror E3210 ile veya yerel bir PLC veya DCS kontrolörüne gönderilebilir. Lokal ağ üzerinden düşük bir sinyal gecikmesi sağlayabilir (genellikle 20 ms'den az). ioMirror ile uzak sensörler yerel kontrol cihazlarına veya bakır, fiber, kablosuz ethernet altyapıları üzerinden ekran panellerine bağlanabilir. Sinyaller, gürültü sorunları olmaksızın neredeyse sınırsız mesafeden iletilebilir.
- Direct input-to-output signal communication over IP
- High speed Peer-to-Peer I/O within 20 ms
- One physical alarm port for connectivity status
- Quick and easy utility and web-based settings
- Local alarm channel
- Remote alarm message
- Supports Modbus/TCP for remote monitoring
- Optional LCD module for easy configuration
| • LAN | |
| Ethernet | 1 x 10/100 Mbps, RJ45 |
| Protection | 1.5 kV magnetic isolation |
| Protocols | Modbus/TCP, TCP/IP, UDP, DHCP, Bootp, HTTP, SNTP |
| • Digital Input | |
| Channels | 8, source type |
| Sensor Type | NPN, Dry contact |
| I/O Mode | Digital Input |
| Dry Contact | • Logic 0: short to GND • Logic 1: open |
| Wet Contact | • Logic 0: 0 to 3 VDC • Logic 1: 10 to 30 VDC (DI COM to DI) |
| Common Type | 8 points per COM |
| Isolation | 3K VDC or 2K Vrms |
| Digital Filtering Time Interval | Software selectable |
| Over-Voltage Protection | 36 VDC |
| • Digital Output | |
| Channels | 8, sink type, 36 VDC, 200 mA |
| I/O Mode | Digital Output |
| Over-Voltage Protection | 45 VDC |
| Over-Current Protection | 600 mA |
| Over-Temperature Shutdown | 160°C |
| Output Current Rating | Max. 200 mA per channel |
| Isolation | 3k VDC or 2k Vrms |
| • Alarm Port Output | |
| Channels | 1, sink type |
| Output Current Rating | Max. 200 mA per channel |
| Isolation | 3k VDC or 2k Vrms |
| • Power Requirements | |
| Power Input | 24 VDC nominal, 12 to 48 VDC |
| DO Power | 24 VDC nominal, up to 45 VDC |
| • Physical Characteristics | |
| Wiring | I/O cable max. 14 AWG |
| Dimensions | 115 x 79 x 45.6 mm (4.53 x 3.11 x 1.80 in) |
| Weight | 205 g |
| • Environmental Limits | |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Altitude | Up to 2000 m Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes. |
| • Standards and Certifications | |
| Safety | UL 508 |
| EMI | FCC Part 15, Subpart B, Class A, EN 55022 Class A |
| EMS | IEC 61000-4, IEC 61000-6 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| • Warranty | |
| Warranty Period | 5 years |
