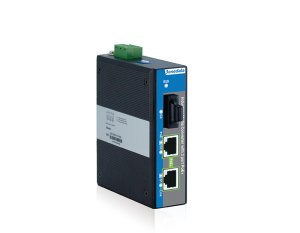

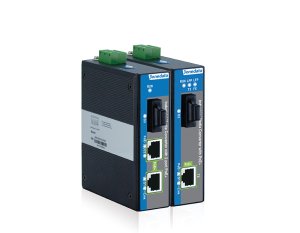

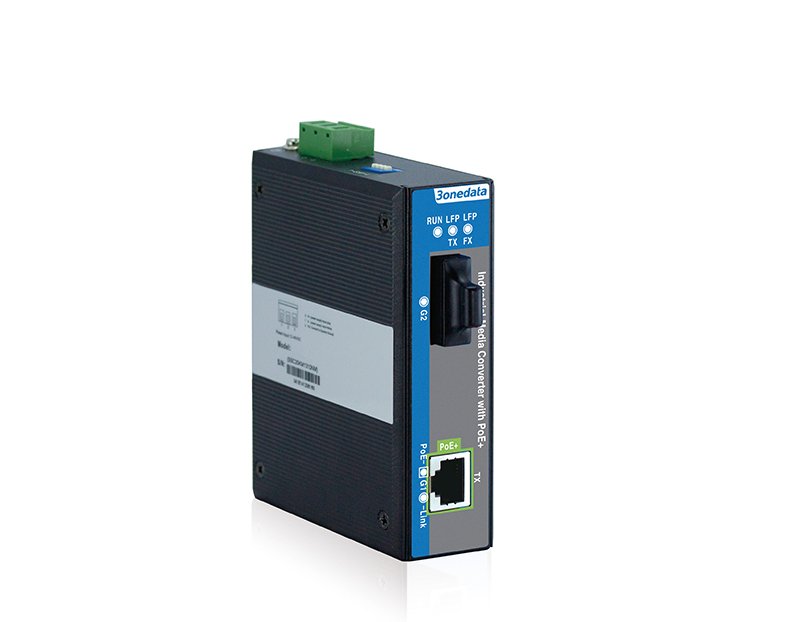

IPMC100-1GF-1GPoE (MM,SC)
2/3-port Full Gigabit Unmanaged Industrial PoE Media Converter
1-port 10/100/1000 Base-T(X) PoE/PoE+ + 1-port 1000Base-FX (Multi-Mode, SC, 2KM) , single power supply:44-57VDC
- 1x Gigabit fiber port veya SFP slot ve 1/2x Gigabit PoE bakır port
- Tek bir PoE port maksimum 30W destekler
- 48VDC
- –40~80℃
| IPMC100-1GS-1GPoE | 1-port 10/100/1000 Base-T(X) PoE/PoE+ + 1*1000Base-FX(SFP slot) , single power supply:44-57VDC |
| IPMC100-1GS-2GPoE | 2-port 10/100/1000 Base-T(X) PoE/PoE+ + 1*1000Base-FX(SFP slot) , single power supply:44-57VDC |
| IPMC100-1GF-1GPoE (MM,SC) | 1-port 10/100/1000 Base-T(X) PoE/PoE+ + 1-port 1000Base-FX (Multi-Mode, SC, 2KM) , single power supply:44-57VDC |
| IPMC100-1GF-1GPoE (MM,ST) | 1-port 10/100/1000 Base-T(X) PoE/PoE+ + 1-port 1000Base-FX (Multi-Mode, ST, 2KM) , single power supply:44-57VDC |
| IPMC100-1GF-1GPoE (SM,SC) | 1-port 10/100/1000 Base-T(X) PoE/PoE+ + 1-port 1000 Base-FX (Single-Mode, SC, 20KM) , single power supply:44-57VDC |
| IPMC100-1GF-1GPoE (SM,ST) | 1-port 10/100/1000 Base-T(X) PoE/PoE+ + 1-port 1000 Base-FX (Single-Mode, ST, 20KM) , single power supply:44-57VDC |
| IPMC100-1GF-2GPoE (MM,SC) | 2-port 10/100/1000 Base-T(X) PoE/PoE+ + 1-port 1000Base-FX (Multi-Mode, SC, 2KM) , single power supply:44-57VDC |
| IPMC100-1GF-2GPoE (MM,ST) | 2-port 10/100/1000 Base-T(X) PoE/PoE+ + 1-port 1000Base-FX (Multi-Mode, ST, 2KM) , single power supply:44-57VDC |
| IPMC100-1GF-2GPoE (SM,SC) | 2-port 10/100/1000 Base-T(X) PoE/PoE+ + 1-port 1000 Base-FX (Single-Mode, SC, 20KM) , single power supply:44-57VDC |
| IPMC100-1GF-2GPoE (SM,ST) | 2-port 10/100/1000 Base-T(X) PoE/PoE+ + 1-port 1000 Base-FX (Single-Mode, ST, 20KM) , single power supply:44-57VDC |
| Toplam Port Sayısı | : | 2 |
| Çalışma Sıcaklığı | : | -40/+80C |
| 10/100/1000BaseT(X) | : | 1 |
| PoE Port | : | 1 |
| 1000BaseFX SFP | : | 1 |
|
Standard &Protocol |
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3z for 1000Base-X IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control IEEE 802.1af for PoE IEEE 802.3at for PoE+
|
|
PoE
|
The maximum power consumption of PoE port: 30W The power supply pin of PoE: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6 |
| Interface |
Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning Fiber port: 1000Base-FX, SC/ST/FC optional SFP slot: 100/1000Base-SFP
|
|
LED Indicator |
Running Indicator, Port Indicator, Power Supply Indicator, PoE Indicator, LFP Indicator
|
|
Switch Property |
Transmission mode: store and forward MAC address: 8K Packet buffer size: 1Mbit Backplane bandwidth: 14G Switch time delay: < 10μs
|
|
Power Requirement |
12~48VDC (PoE 48VDC), 3-pin 7.62mm pitch terminal blocks
|
|
Environmental Limit |
Operating temperature: -40~80℃ Storage temperature: -40~85℃ Relative humidity: 5%～95%（no condensation）
|
|
Physical Characteristic |
Housing: IP40 protection, metal Installation: DIN-Rail or wall mounting Dimension (W x H x D): 36mm×110mm×97mm Weight: ≤400g
|
|
Industrial Standard |
IEC 61000-4-2 (ESD), Level 3 Air discharge: ±8kV Contact discharge: ±6kV EN61000-4-4 (EFT), Level 3 IEC61000-4-5 (Surge), Level 3 Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
|
|
Certification |
CE, FCC, RoHS |
