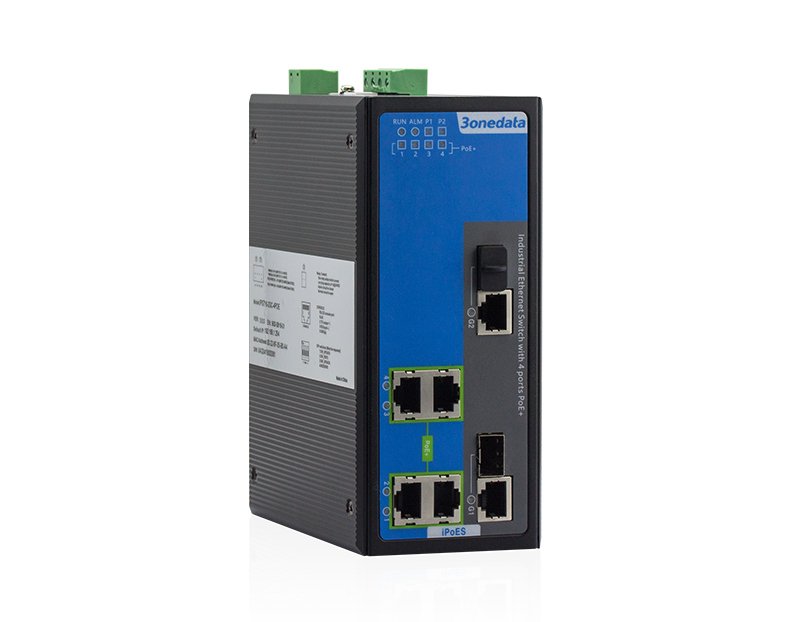

IPS716-2GC-4PoE
6-port 100M/Gigabit Layer 2 Managed Industrial PoE Switch
2*Gigabit Combo + 4*10/100Base-T(X) PoE/PoE+ (RJ45)，dual power supply:45-55VDC
- 2 gigabit Combo port (SFP slot veya RJ45) ve 4 100M PoE bakır port
- Patentli SW-Ring teknolojisi, single ring, coupling ring, chain ring, ağdaki problemlerde otoatik kurtarma süresi < 20ms
- Tek bir PoE port maksimum 30W destekler
- 48VDC
- –40~75℃
| Toplam Port Sayısı | : | 6 |
| Çalışma Sıcaklığı | : | -40/+75C |
| 10/100BaseT(X) | : | 4 |
| PoE Port | : | 4 |
| Combo Port | : | 2 |
|
Standard &Protocol |
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol EEE 802.1Q for VLAN IEEE 802.1p for CoS IEEE 802.3ad for LACP IEEE 802.3af for PoE IEEE 802.3at for PoE+
|
| Management |
SNMP v1/v2c Centralized Management of Equipment, Port Mirroring, QoS, LLDP, DHCP Client, File Management, Port Statistics
|
| Security |
Classification of User Permissions, Port Alarm, Power Supply Alarm, Storm Suppression
|
| Switch Function |
802.1Q Vlan, Static Port Aggregation, Bandwidth Management, Flow Control
|
|
Unicast / Multicast
|
Static Multicast, IGMP-Snooping |
|
Redundancy Protocol
|
SW-Ring, STP/RSTP
|
| Time Management |
SNTP
|
|
PoE
|
The maximum power consumption of PoE port: 30W The power supply pin of PoE: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6 |
| Interface |
100M copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning Combo port: 10/100/1000Base-T(X) or 1000Base-FX Console port: CLI command line management port (RS-232), RJ45 Alarm port: 2-pin 7.62mm pitch terminal blocks, support 1 relay alarm output, current carrying capacity is 1A@24VDC or 0.5A@120VAC
|
|
LED Indicator |
Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator, PoE Indicator
|
|
Switch Property |
Transmission mode: store and forward MAC address: 8K Packet buffer size: 1Mbit Backplane bandwidth: 7.6G Switch time delay: <10μs
|
|
Power Requirement |
48VDC, 4-pin 7.62mm pitch terminal blocks Dual power supply redundancy, reverse polarity protection
|
|
Power Consumption
|
No-load: 7.9W@48VDC Full-load: 113.4W@48VDC |
|
Environmental Limit |
Operating temperature range: -40~75℃ Storage temperature range: -40~75℃ Relative humidity: 5%～95%(no condensation)
|
|
Physical Characteristic |
Housing: IP40 protection, metal Installation: DIN-Rail mounting Dimension (W x H x D): 70mm×160mm×130mm Weight: 1.07kg
|
|
Industrial Standard |
IEC 61000-4-2 (ESD), Level 3 Air discharge: ±8kV Contact discharge: ±6kV
EN61000-4-4 (EFT), Level 3 Power supply:±2kV Ethernet port: ±2kV Relay: ±2kV
IEC 61000-4-5 (Surge), Level 3 Power supply: common mode±2kV, differential mode±1kV Ethernet port: ±2kV Relay: common mode±2kV, differential mode±1kV
Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
|
|
Certification |
CE, FCC, RoHS |
