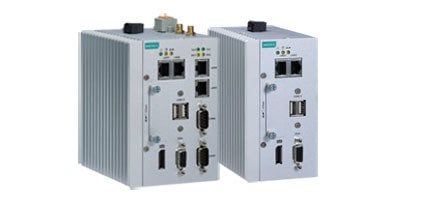

MC-1112-E4-T
Quad-core fanless DIN-rail automation computer
- Dual-storage (SD and CFast slots) MC-1100 DIN-rail Automation Computers Applications
- Dual-independent displays (VGA + display port)
- Variety of interfaces: 2 serial ports, 4 Giga LAN, 4 DIs, 4 DOs, 2 USB2.0
- Mini-PCIe sockets for WiFi, 3G, LTE, GPS marine computer display and switch solution brochure
- 12 to 36 VDC, wide range isolated power
- -40 to 70°C system operating temperature range
- Moxa SmartRecovery utility to recover system from boot failure (W7E only)
- Marine-grade and Zone 2 compliance
|
x86 embedded computer with Intel Atom dual-core E3826 processor, 4 GB RAM, VGA, 2 USBs, 2 GigaLANs, 1 CFast socket, 1 SD slot, display port, 12 to 36 VDC power |
|
|
x86 embedded computer with Intel Atom quad-core E3845 processor, 4 GB RAM, VGA, 2 USBs, 2 GigaLANs, 1 CFast socket, 1 SD slot, display port, 12 to 36 VDC power |
|
|
x86 embedded computer with Intel Atom dual-core E3826 processor, 4 GB RAM, VGA, 2 USBs, 2 GigaLANs, 2 serial ports, 1 CFast socket, 12 to 36 VDC power |
|
|
x86 embedded computer with Intel Atom quad-core E3845 processor, 4 GB RAM, VGA, 2 USBs, 2 GigaLANs, 2 serial ports, 1 CFast socket, 12 to 36 VDC power |
|
|
x86 embedded computer with Intel Atom dual-core E3826 processor, 4 GB RAM, VGA, 2 USBs, 4 GigaLANs, 2 serial ports, 4 DIs, 4 DOs, 1 CFast socket, 1 SD slot, display port, 12 to 36 VDC power |
|
|
x86 embedded computer with Intel Atom quad-core E3845 processor, 4 GB RAM, VGA, 2 USBs, 4 GigaLANs, 2 serial ports, 4 DIs, 4 DOs, 1 CFast socket, 1 SD slot, display port, 12 to 36 VDC power |
|
|
x86 embedded computer with Intel Atom quad-core E3845 processor, 32GB CFast, Windows Embedded Standard 7 pre-installed, 4 GB RAM, VGA, 2 USBs, 4 GigaLANs, 2 serial ports, 4 DIs, 4 DOs, , 1 SD slot, display port, 12 to 36 VDC power |
|
|
x86 embedded computer with Intel Atom dual-core E3826 processor, 4 GB RAM, VGA, 2 USBs, 4 GigaLANs, 4 serial ports, 4 DIs, 4 DOs, 1 CFast socket, 1 USIM slot, 1 expansion slot, 12 to 36 VDC power |
|
|
x86 embedded computer with Intel Atom quad-core E3845 processor, 4 GB RAM, VGA, 2 USBs, 4 GigaLANs, 4 serial ports, 4 DIs, 4 DOs, 1 CFast socket, 1 USIM slot, 1 expansion slot, 12 to 36 VDC power |
|
|
x86 embedded computer with Intel Atom quad-core E3845 processor, 4 GB RAM, VGA, 2 USBs, 4 GigaLANs, 4 serial ports, 4 DIs, 4 DOs, 1 CFast socket, 1 USIM slot, 1 expansion slot, 12 to 36 VDC power, TPM 1.2 |
|
1 LTE module, 1 antenna with cable and connector, 2 black screws, 1 lock washer, 1 nut, 1 thermal pad |
|
|
1 Wi-Fi module, 2 antennas with cable and connector, 2 black screws, 2 lock washers, 2 nuts, 1 thermal pad |
|
GSM/GPRS/EDGE/UMTS/HSPA/LTE, 1 dBi, omni-directional, rubber duck antenna |
|
|
GPRS/EDGE/UMTS/HSPA/LTE, 2 dBi, omni-directional, rubber duck antenna |
|
2.4/5.5 GHz 2 dBi dual-band antenna, RP-SMA (male) connector |
|
DIN-rail mounting kit x 1, screws x 4 |
|
|
Wallmount kit x 1, screws x 4 |
| Hardware Specifications | |
| • Computer | |
| CPU | • MC-1100-E4 Series: Intel® Atom™ processor E3845 (quad-core, 1M cache, 1.91 GHz) • MC-1100-E2 Series: Intel® Atom™ processor E3826 (dual-core, 1M cache, 1.46 GHz) |
| Operating System | Supports Windows 10 IoT, 64-bit Windows 7 Embedded, and Linux Debian 8 |
| System Memory | 1 DDR3L SO-DIMM slot, 4 GB pre-installed, supports up to 8 GB |
| USB | USB 2.0 hosts x 2, Type A connectors |
| Storage | • CFast: 1 CFast socket for OS storage; CFast supports 16 GB, 32 GB, 64 GB and 128 GB • SD: 1 SD 3.0 (SDHC/SDXC) socket for storage expansion; SD supports 16 GB, 32 GB, 64 GB, and 128 GB (only for the MC-1111 and MC-1121 series) |
| • Other Peripherals | |
| USB | 2 bootable USB 2.0 ports (type A) |
| TPM | TPM1.2 (only for the MC-1112 and MC-1122 series) |
| Expansion Slot | 1 MiniPCIe socket; USB signal for wireless Wifi/3G/LTE modules |
| USIM Slots | 1 |
| • Display | |
| Graphics Controller | Intel® HD Graphics 4000 |
| Display Interface | • VGA interface x 1: 15-pin D-Sub connector (female), with resolution up to 1920 x 1200 pixels at 75 Hz • Display port interface x 1: Display port connector, with resolution up to 2560 x 1600 pixels at 60 Hz (only for the MC-1111 and MC- |
| • Ethernet Interface | |
| LAN | 2 or 4 auto-sensing 10/100/1000 Mbps ports (RJ45) |
| Magnetic Isolation Protection | 1.5 kV built in |
| • Serial Interface | |
| Serial Standards | 2 or 4 RS-232/422/485 ports, software-selectable (DB9 male) |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485 |
| Baudrate | 50 bps to 115.2 kbps |
| • Serial Signals | |
| RS-232 | TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND |
| RS-422 | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-4w | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-2w | Data+, Data-, GND |
| • Digital Input | |
| Input Channels | DI x 4 (non-isolation) |
| Input Voltage | Logic level 0: Close to GND Logic level 1: Open |
| • Digital Output | |
| Output Channels | DO x 4 (Non-Isolation) |
| Output Voltage | Logic level 0: 0 to 0.55 V Logic level 1: 5 VDC (4.7 to 5 V) |
| Output Clamping Current | 24 mA |
| • LEDs | |
| System | Power |
| Storage | CFast, SD |
| LAN | 2 LEDs per port (100/1000 Mbps) |
| Serial | 2 LEDs per port (Tx and Rx) |
| • Physical Characteristics | |
| Housing | Aluminum, sheet metal |
| Weight | • MC-1111/1112: 1.45 kg (3.20 lb) • MC-1121/1122: 1.75 g (3.86 lb) |
| Dimensions | • MC-1111/1112: 132 x 122 x 68 mm (5.20 x 4.81 x 2.68 in) • MC-1121/1122: 132 x 122 x 87 mm (5.20 x 4.81 x 3.43 in) |
| Mounting | DIN rail, wall (DNV) |
| • Environmental Limits | |
| Operating Temperature | -40 to 70°C (-40 to 158°F)(DNV: -25 to 70°C) |
| Storage Temperature | -45 to 75°C (-49 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Anti-Vibration | • 0.7 g @ DNV GL (Class A), sine wave, 2-100 Hz, 1 Oct./min., 1.5 hr per axis • 1 g @ DNV GL, random wave, 3-100 Hz, 2.5 hr per axis |
| Anti-Shock | 50g/11ms ±X, ±Y, ±Z, 3 shocks each axis w/ CFast, SD |
| • Power Requirements | |
| Input Voltage | 12/24 VDC typical (11.4 to 36 VDC tolerance, 2-pin terminal block)(DNV: 24 VDC) |
| Power Consumption | Less than 30 W |
| • Standards and Certifications | |
| Safety | UL 60950-1 |
| Hazardous Environments | Class 1 Division 2, ATEX/IECEx Zone 2 |
| EMC | EN 55032, EN 55024 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 |
| Marine Standards | IEC 60945 |
| Marine Type Approval | DNV GL |
| Green Product | RoHS, cRoHS, WEEE |
| • Reliability | |
| Automatic Reboot Trigger | Built-in watchdog timer (WDT), configurable for resets following 1-255 second hang intervals; software programmable |
| • Warranty | |
| Warranty Period | 3 years |
| Details | See www.moxa.com/warranty |
| Software Specifications | |
| • Linux | |
| OS | Linux Debian 8 64-bit |
| Terminal Server (SSH) | Provides secure encrypted communications between two un-trusted hosts over an insecure network |
| File System | EXT2, EXT3, EXT4 |
| Internet Protocol Suite | TCP, UDP, IPv4, IPv6, SNMPv2, ICMP, ARP, HTTP, CHAP, PAP, DHCP, NTP, NFS, SSH, PPP, SFTP, RSYNC, SSL |
| Internet Security | OpenVPN, iptables |
| Secure Shell for Remote Access | SSH allows remote logins to a secure encrypted console from any connected network |
| Watchdog | Features a hardware function to trigger system reset in a user specified time interval (Linux standard API) |
| Embedded Self-Health Maintenance Software | Moxa Proactive Monitoring |
| • Windows Embedded Standard 7 | |
| Core OS | • 64-bit support • Remote Client • Remote Procedure Call |
| Applications and Services Development | • Remote Desktop Protocol 7.1 • COM OLE Application Support • COM+ Application Support • MSMQ |
| Internet Services | • Internet Explorer 8.0 • IIS 7.0 |
| Diagnostics | • Common Diagnostic Tools • Problem Reports and Solutions |
| Fonts | Western, Middle Eastern, South East Asian, and South Asian Fonts |
| Graphics and Multimedia | • MPEG Layer-3 Audio Codecs (MP3) • MPEG4 Decoders • DirectX and Windows Device Experience |
| Management | • Group Policy Management • Windows Management Instrument (WMI) • Windows Update |
| Networking | • Extensible Authentication Protocol (EAP) • Internet Authentication Service • Telnet Server • Bluetooth • Domain Services • Network Access Protection • Network and Sharing Center • Quality of Service • Remote Access Service (RAS) • Telephony A |
| Security | • Credential Roaming Service • Credentials and Certificate Management • Windows Authorization Manager (AZMAN) • Windows Security Center • Active Directory Rights Management • Security Base • Encrypted File System (EFS) |
| Embedded Features | • Enhanced Write Filter (EWF) • File-Based Write Filter (FBWF) • Registry Filter • WSDAPI for .NET |
| File Systems and Data Store | • Windows Data Access Components • Windows Backup and Restore |
| Maintenance | Moxa Proactive Monitoring & Moxa Smart Recovery |
