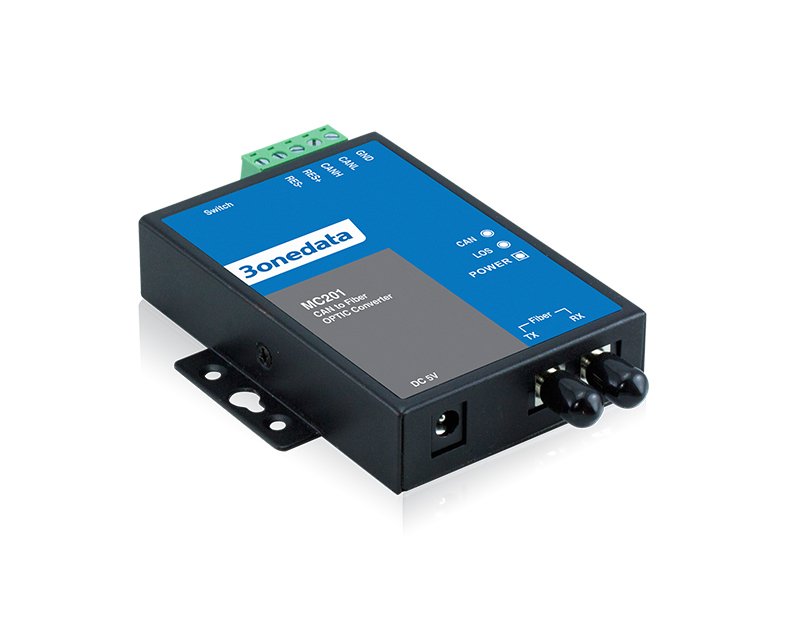

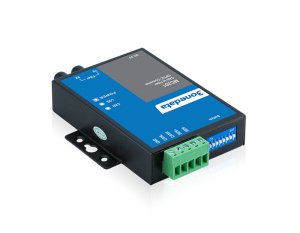

MC201-F (SM,SC)
CAN Bus to Fiber Converter
CAN to fiber converter, CAN 2KVAC isolation, 8KV ESD, Single-Mode, SC, 15Km, 5VDC
- 1xFiber ve 1xCAN
- CAN BUS iletim mesafesi 15Km'ye kadar arttırılabilir
- 2.5K-1000Kbps (CAN Port otomatik seçim ve kullanıcı seçimini destekler)
- -40~75℃
| MC201-F (MM,SC) | CAN to fiber converter, CAN 2KVAC isolation, 8KV ESD, Multi-Mode, SC, 2Km, 5VDC |
| MC201-F (MM,ST) | CAN to fiber converter, CAN 2KVAC isolation, 8KV ESD, Multi-Mode, ST, 2Km, 5VDC |
| MC201-F (SM,SC) | CAN to fiber converter,CAN 2KVAC isolation, 8KV ESD, Single-Mode, SC, 15Km, 5VDC |
| MC201-F (SM,ST) | CAN to fiber converter,CAN 2KVAC isolation, 8KV ESD, Single-Mode, ST, 15Km, 5VDC |
| Çalışma Sıcaklığı | : | -40/+75C |
| Toplam Port Sayısı | : | 2 |
| 100BaseFX | : | 1 |
| CAN Port | : | 1 |
|
Fiber Port |
Interface form：SC/ST/FC Transmission distance： multimode：2km single mode：15km Optical cable： multimode：50/125μm or 62.5/125μm single mode：8.3/125μm、8.7/125μm、9/125μm or 10/125μm Transmission wavelength： multimode：1310nm single mode：1310nm or 1550nm
|
| CAN Interface |
Standard: CAN2.0A, CAN2.0B CAN signal: CANH, CANL, GND Duplex mode: 2-wire Half Duplex Mode Baud rate: 2.5kbps-1000kbps Load capacity: support concurrent transmitting of 110 nodes Transmission distance: 40m~10km Interface form: adopt 5-pin 5.08mm pitch terminal blocks Terminating resistor: optional external 120Ω terminating resistor Interface protection: 2kVAC isolation protection
|
|
LED Indicator
|
Power supply indicator, fiber port/data indicator, CAN port indicator |
|
Power Requirement
|
5VDC, DC round head
|
|
Power Consumption |
No-load: 1.39W@5VDC Full-load: 1.31W@5VDC
|
|
Environmental Limit |
Operating temperature: -40~75℃ Storage temperature:-40~85℃ Relative humidity: 5%～95%(no condensation)
|
|
Physical Characteristic |
Housing: IP40 protection, metal Installation: wall mounting Dimension (W x H x D): 69mm×22mm×100mm Weight: 237g
|
|
Industrial Standard |
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3 Air discharge: ±8kV Contact discharge: ±6kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
|
|
Certification |
CE, FCC, RoHS |
