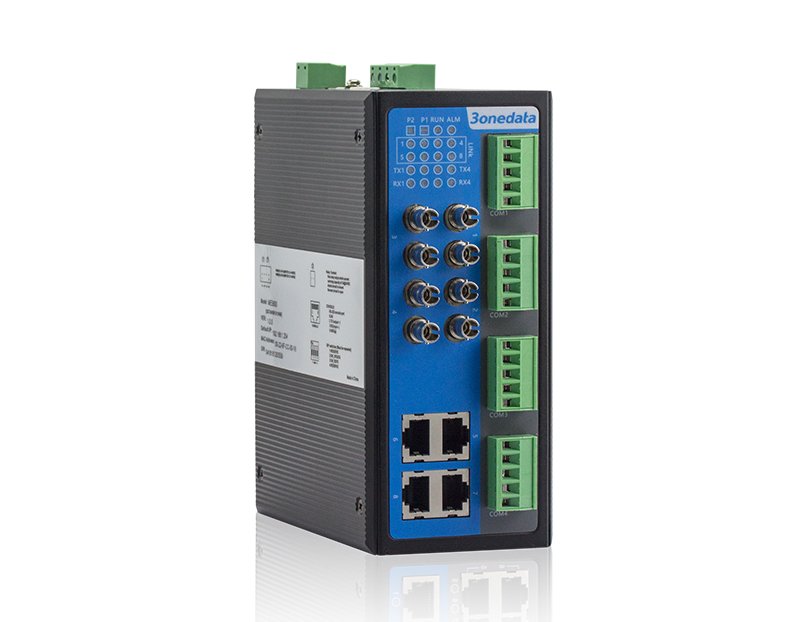

MES600-4T4F-4D (SM,ST)
IEC61850 8-port Managed Ethernet Switches
4*10/100Base-T(X) (RJ45)+4*100Base-FX (Single-Mode, dual fibers, ST, 20KM), dual power supply 12~48VDC
- 4x 100M fiber port, 4x 100M bakır port ve 4x 3IN1 (RS-232/422/485) seri port (opsiyonel)
- Patentli SW-Ring teknolojisi, single ring, coupling ring, chain ring
- 12-48VDC
- –40~85℃
| MES600-4T4F-4D (MM,SC) | 4*10/100Base-T(X) (RJ45) + 4*100Base-FX (Multi-Mode, dual fibers, SC, 2KM) + 4* RS-232/422/485(5 bit terminal block), dual power supply 12~48VDC |
| MES600-4T4F-4D (MM,ST) | 4*10/100Base-T(X) (RJ45)+4*100Base-FX (Multi-Mode, dual fibers, ST, 2KM)+4* RS-232/422/485(5 bit terminal block), dual power supply 12~48VDC |
| MES600-4T4F-4D (SM,SC) | 4*10/100Base-T(X) (RJ45)+4*100Base-FX (Single-Mode, dual fibers, SC, 20KM)+4* RS-232/422/485(5 bit terminal block), dual power supply 12~48VDC |
| MES600-4T4F-4D (SM,ST) | 4*10/100Base-T(X) (RJ45)+4*100Base-FX (Single-Mode, dual fibers, ST, 20KM)+4* RS-232/422/485(5 bit terminal block), dual power supply 12~48VDC |
| MES600-4T4F (MM,SC) | 4*10/100Base-T(X) (RJ45)+4*100Base-FX (Multi-Mode, dual fibers, SC, 2KM), dual power supply 12~48VDC |
| MES600-4T4F (MM,ST) | 4*10/100Base-T(X) (RJ45)+4*100Base-FX (Multi-Mode, dual fibers, ST, 2KM), dual power supply 12~48VDC |
| MES600-4T4F (SM,SC) | 4*10/100Base-T(X) (RJ45)+4*100Base-FX (Single-Mode, dual fibers, SC, 20KM), dual power supply 12~48VDC |
| MES600-4T4F (SM,ST) | 4*10/100Base-T(X) (RJ45)+4*100Base-FX (Single-Mode, dual fibers, ST, 20KM), dual power supply 12~48VDC |
| Toplam Port Sayısı | : | 12 |
| Çalışma Sıcaklığı | : | -40/+85C |
| 10/100BaseT(X) | : | 4 |
| 100BaseFX SFP | : | 4 |
| IEC61850 | : | VAR |
|
Standard &Protocol |
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol EEE 802.1Q for VLAN IEEE 802.1p for CoS IEEE 802.1AB for LLDP
|
| Management |
SNMP v1/v2c Centralized Management of Equipment, Port Mirroring, QoS, LLDP, DHCP Server, DHCP Client, File Management, Port Statistics
|
| Security |
Classification of User Permissions, Port Alarm, Power Supply Alarm, E-mail Alarm
|
| Switch Function |
802.1Q Vlan, Static Port Aggregation, Bandwidth Management, Flow Control
|
|
Unicast / Multicast
|
Static Multicast, GMRP, IGMP-Snooping |
|
Redundancy Protocol
|
SW-Ring, STP/RSTP
|
| Time Management |
SNTP
|
| Interface |
100M copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning 100M fiber port: 100Base-FX, SC/ST/FC optional Console port: CLI command line management port(RS-232), RJ45 Alarm port: 2-pin 7.62mm pitch terminal blocks, support 1 relay alarm output, current carrying capacity is 1A@24VDC or 0.5A@120VAC
|
|
Serial Port
|
RS-232 signal: TXD, RXD, GND RS-422 signal: T+, T-, R+, R-, GND RS-485 signal: D+, D-, GND Check bit: None, Even, Odd, Space, Mark Data bit: 5bit, 6bit, 7bit, 8bit Stop bit: 1bit, 1.5bit, 2bit Baud rate: 300-115200bps Interface: 5-pin 5.08mm pitch terminal blocks Load capacity: RS-485/422 port supports 32-point polling environment(can be customized to 128-point) Directional control: RS-485 adopts automatic data flow control technology
|
|
LED Indicator |
Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator
|
|
Switch Property |
Transmission mode: store and forward MAC address: 8K Packet buffer size: 3Mbit Backplane bandwidth: 12.8G Switch time delay: <10μs
|
|
Power Requirement |
12~48VDC The terminal block pitch is 4-pin 7.62mm Dual power supply redundancy, non-polarity, reverse connection protection
|
|
Environmental Limit |
Operating temperature range: -40~85℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95% (no condensation)
|
|
Physical Characteristic |
Housing: IP40 protection, metal Installation: DIN-Rail mounting Dimension (W x H x D): 70mm×160mm×130mm Weight: ≤1.18kg
|
|
Industrial Standard |
IEC 61000-4-2 (ESD), Level 4 Contact discharge: ±8kV IEC 61000-4-4 (EFT), Level 4 Power supply: ±4kV Ethernet port: ±2kV Relay: ±4kV IEC 61000-4-5 (Surge), Level 4 Power supply: common mode±4kV, differential mode±2kV IEC 61000-4-6 (CS), Level 3 Test level: 10V Frequency range: 150kHz-80MHz IEC 61000-4-8 (PFMF), Level 5 Stable magnetic field: 100A/m Short-time magnetic field(3s): 1000A/m IEC 61000-4-12, Level 3 Test level: common mode±2.5kV, differential mode±1kV Test frequency: 1MHz, 100kHz IEC 61000-4-29 Voltage interrupts: 100% Duration: 10ms, 3 times Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
|
|
Certification |
CE, FCC, RoHS, IEC61850, IEEE1613, SGCC(Type test: Q/GDW 1429-2012, DL/T 1241-2013), CSG(Commissioned test) |
