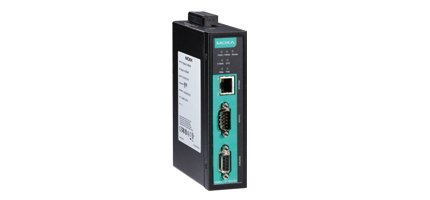

MGate 5101-PBM-MN
1-port PROFIBUS-to-Modbus TCP gateways
MGate 5101-PBM-MN ağ geçidi, PROFIBUS cihazları (örn., PROFIBUS sürücüler) ve Modbus TCP host arasında bir iletişim portalı sağlar. Tüm modeller sağlam metalik muhafaza, DIN-RAIL montaj olanağı ve isteğe bağlı dahili optik izolasyon sağlar. Kolay bakım için PROFIBUS ve Ethernet durum LED göstergeleri sağlanmıştır. Sağlam tasarım, petrol/gaz, güç, proses otomasyonu ve fabrika otomasyonu gibi endüstriyel uygulamalar için uygundur.
- Protocol conversion between PROFIBUS and Modbus TCP
- Automatic scan of PROFIBUS devices for easy configuration
- Redundant dual DC power inputs and relay output supported
- Embedded data packet analyzer and diagnostic tool
- Web-based GUI for I/O data visualization
- -40 to 75°C wide operating temperature models available
ÜRÜN SİPARİŞ KODLARI :
|
1-port PROFIBUS master-to-Modbus TCP gateway, 12-48 VDC, 0 to 60°C operating temperature |
|
|
1-port PROFIBUS master-to-Modbus TCP gateway, 12-48 VDC, -40 to 75°C operating temperature |
| • Ethernet Interface | |
| Number of Ports | 1 |
| Speed | 10/100 Mbps, Auto MDI/MDIX |
| Connector | 8-pin RJ45 |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Modbus TCP | Operation Modes: Modbus TCP Client/Server |
| • PROFIBUS Interface | |
| Protocol | PROFIBUS DP-V1 Master |
| Number of Ports | 1 |
| Data Rate | 9600 bps to 12 Mbps |
| Connector | DB9 female |
| Isolation | 2 kV (built-in) |
| • Serial Signals (Serial Console) | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| • Software | |
| Configuration Options | Serial Console, Windows Utility, Web Console (HTTP/HTTPS), Telnet/SSH Console |
| Utility | MGate Manager for Windows 2000, Windows XP, Server 2003, Vista, Server 2008 (x86/x64), Windows Server 2008 R2, Windows 7/8/8.1 (x86/x64), Windows Server 2012 (x64), Windows 2012 R2 |
| Support | AutoScan, MXview, SNMP (v1, v2, v3), Private MIB |
| • Physical Characteristics | |
| Housing | Metal, IP30 |
| Weight | 500 g (1.10 lb) |
| Dimensions | 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Vibration | IEC 60068-2-6, IEC 60068-2-64 |
| Shock | IEC 60068-2-27 |
| Drop | IEC 60068-2-32 |
| • Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Input Current | 365 mA @ 12 VDC |
| Power Connector | Terminal block |
| • Standards and Certifications | |
| Safety | UL 60950-1, EN 60950-1 |
| Hazardous Location | Class 1 Division 2, ATEX, IECEx |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m IEC 61000-4-8 PFMF |
| • MTBF (mean time between failures) | |
| Time | 1,082,881 hrs |
| Standard | Telcordia SR332 |
| • Warranty | |
| Warranty Period | 5 years |
