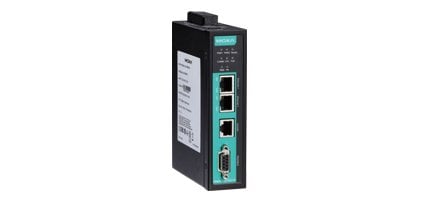

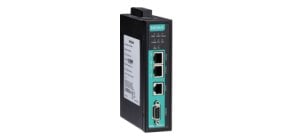

MGate 5102-PBM-PN
1-port PROFIBUS-to-PROFINET gateways
MGate 5102-PBM-PN ağ geçidi, PROFIBUS cihazları (örn., PROFIBUS PLC veya sürücü) ve PROFINET ana bilgisayarı arasında iletişim sağlar. Tüm modeller sağlam bir metalik gövde ile korunur, DIN-RAIL montaj opsiyonuna sahiptir ve opsiyonel dahili optik izolasyon sağlar. Kolay bakım için PROFIBUS ve Ethernet durum LED göstergeleri sağlanmıştır. Sağlam tasarım, petrol ve gaz, güç, proses otomasyonu ve fabrika otomasyonu gibi endüstriyel uygulamalar için uygundur.
- Protocol conversion between PROFIBUS and PROFINET
- Automatic scan of PROFIBUS devices, and easy configuration
- microSD card for configuration backup
- Built-in Ethernet cascading for easy wiring
- Redundant dual DC power inputs and relay output supported
- Embedded I/O monitoring and diagnostic tools
- Web-based GUI for I/O data visualization
- -40 to 75°C wide operating temperature models available
ÜRÜN SİPARİŞ KODLARI :
|
1-port PROFIBUS-to-PROFINET gateway, 12-48 VDC, 0 to 60°C operating temperature |
|
|
1-port PROFIBUS-to-PROFINET gateway, 12-48 VDC, -40 to 75°C operating temperature |
| • Ethernet Interface | |
| Protocols | PROFINET RT |
| Number of Ports | 2 (1 IP, Ethernet cascade) |
| Speed | 10/100 Mbps, Auto MDI/MDIX |
| Connector | 8-pin RJ45 |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| • PROFIBUS Interface | |
| Protocol | PROFIBUS DP-V1 Master |
| Number of Ports | 1 |
| Data Rate | 9600 bps to 12 Mbps |
| Connector | DB9 female |
| Isolation | 2 kV (built-in) |
| • Serial Signals (Serial Console) | |
| Connector | 8-pin RJ45 |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| • Software | |
| Configuration Options | Windows Utility, Serial Console, Web Console (HTTP/HTTPS), Telnet/SSH Console |
| Utility | MGate Manager for Windows 2000, Windows XP, Server 2003, Vista, Server 2008 (x86/x64), Windows Server 2008 R2, Windows 7/8/8.1 (x86/x64), Windows Server 2012 (x64), Windows 2012 R2 |
| Support | AutoScan, MXview, SNMP (v1, v2, v3), Private MIB |
| • Physical Characteristics | |
| Housing | Metal, IP30 |
| Weight | 500 g (1.10 lb) |
| Dimensions | 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in) |
| Storage Card Slot | 1 microSD (SDHC) card slot supports up to 32 GB |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Vibration | IEC 60068-2-6, IEC 60068-2-64 |
| Shock | IEC 60068-2-27 |
| Drop | IEC 60068-2-32 |
| • Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Input Current | 430 mA @ 12 VDC |
| Power Connector | Terminal block |
| • Standards and Certifications | |
| Safety | UL 508, EN 60950-1 |
| Hazardous Location | Class 1 Division 2, ATEX, IECEx |
| EMC | EN 55022/24 |
| EMI | CISPR 22, FCC Part 15B Class B |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m IEC 61000-4-8 PFMF |
| • MTBF (mean time between failures) | |
| Time | 980,417 hrs |
| Standard | Telcordia SR332 |
| • Warranty | |
| Warranty Period | 5 years |
