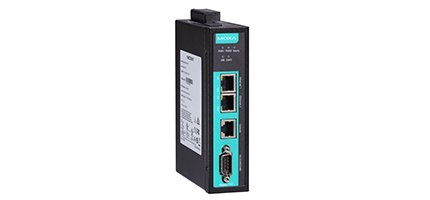

MGate 5109-T

1-port Modbus RTU/ASCII/TCP-to-DNP3 serial/TCP/UDP gateways


MGate 5109, Modbus RTU/ASCII/TCP ve DNP3 serial/TCP/UDP protokol dönüşümü için kullanılabilen bir endüstriyel ethernet ağ geçididir. Tüm modeller sağlam bir metalik gövde ile korunur, DIN-RAIL montaj olanağına sahip ve dahili seri izolasyon içerir. MGate 5109, Modbus TCP'yi Modbus RTU/ASCII ağlarına veya DNP3 TCP/UDP'yi DNP3 seri ağlarına kolayca entegre etmek için şeffaf modu destekler. MGate 5109 serisi ağ geçitleri özellikle kurulum aşamasında kolay sorun giderme için Modbus ve DNP3 Protokol Trafik Monitörünü destekler. Sağlam tasarım, güç, petrol ve gaz, su ve atık su gibi endüstriyel uygulamalar için uygundur.
  • Supports Modbus master/slave and DNP3 master/outstation
  • Up to 31 Modbus serial slaves or DNP3 serial outstations
  • Up to 32 Modbus TCP slaves or DNP3 TCP/UDP outstations
  • Supports DNP 3.0 subset level 2
  • DNP3 master mode supports up to 26600 points
  • DNP3 master and outstation modes support time-synchronization
  • Complete diagnosis information for maintenance
  • Embedded Modbus and DNP3 serial traffic monitor Moxa protocol converter gateway
  • Redundant dual DC power inputs and relay output
  • microSD card for configuration backup and system log
  • -40 to 75°C wide operating temperature models available
  • Serial port with 2 kV built-in isolation protection
  • Built-in Ethernet cascading for easy wiring
  • Security features based on IEC-62443


ÜRÜN SİPARİŞ KODLARI :


MGate 5109

1-port Modbus-to-DNP3 gateway, 0 to 60°C operating temperature

MGate 5109-T

1-port Modbus-to-DNP3 gateway, -40 to 75°C operating temperature

• Ethernet Interface
Protocols Modbus TCP client/server, DNP 3.0 TCP/UDP master/outstation
Number of Ports 2 (1 IP, Ethernet cascade)
Speed 10/100 Mbps, Auto MDI/MDIX
Connector 8-pin RJ45
Magnetic Isolation Protection 1.5 kV (built-in)
• Serial Interface
Protocols Modbus RTU/ASCII Master/Slave
Number of Ports 1
Serial Standards RS-232/422/485, software selectable
Connectors DB9 male
RS-485 Data Direction Control ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485 1 kΩ, 150 kΩ
Terminator for RS-485 120 Ω
Isolation 2 kV (built-in)
• Serial Communication Parameters
Data Bits 7, 8
Stop Bits 1, 2
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS, RTS Toggle (RS-232 only)
Baudrate 50 bps to 921.6 kbps
• Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
• Modbus
Functions Supported 1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Commands 100
Max. No. of Connections MGate as Modbus TCP Master: 32 slave connections
MGate as Modbus TCP slave: 16 master connections
• DNP3
Max. No. of Connections • Transparent mode:
16 DNP3 TCP master connections or 32 DNP3 TCP outstation connections
• Agent mode:
MGate as DNP3 TCP/UDP master: 32 outstation connections
MGate as DNP3 TCP/UDP outstation: 1 master connection
DNP3 Internal Database • For each outstation:
Binary Inputs: 256 points
Analog Inputs: 64 points
Counters: 64 points
Binary Outputs: 256 points
Analog Outputs: 64 points
• When the MGate 5109 is configured as a DNP3 outstation
Binary Inputs: 8192 points
Analog Inputs: 2048 points
Counters: 2048 points
Binary Outputs: 8192 points
Analog Outputs: 2048 points
Binary Input Events: 1024
Analog Input Events: 1024
Counter Events: 1024
• Software
Configuration Options Web Console, Serial Console
Utility Device Search Utility (DSU) for Windows 95, 98, ME, NT, 2000, Windows XP, Server 2003, Vista, Server 2008 (x86/x64), Windows Server 2008 R2, Windows 7/8/8.1/10 (x86/x64), Windows Server 2012 (x64), Windows 2012 R2
Configuration MXconfig, MXview, SNMP (v1, v2c, v3), Private MIB
• Physical Characteristics
Housing Metal, IP30
Weight 507 g (1.12 lb)
Dimensions 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)
Storage Card Slot 1 microSD (SDHC) card slot supports up to 32 GB
Relay Alarm Circuit 3-pin circuit with current carrying capacity of 2 A @ 30 VDC
• Environmental Limits
Operating Temperature Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Vibration IEC 60068-2-6, IEC 60068-2-64
Shock IEC 60068-2-27
Drop IEC 60068-2-32
• Power Requirements
Input Voltage 12 to 48 VDC
Input Current 455 mA max., Class 2
Power Connector Terminal block
• Standards and Certifications
Safety UL 508, EN 60950-1
Hazardous Location Class 1 Division 2, ATEX, IECEx
EMC EN 55022/24
EMI CISPR 22, FCC Part 15B Class B
EMS IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m
IEC 61000-4-8 PFMF
• MTBF (mean time between failures)
Time 859,422 hrs
Standard Telcordia SR332
• Warranty
Warranty Period 5 years
