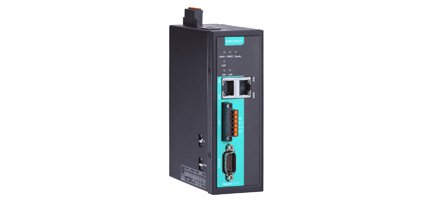

MGate 5118-T
1-port CAN-J1939 to Modbus/PROFINET/EtherNet/IP gateways
MGate 5118 serisi endüstriyel protokol ağ geçitleri, CANBus (Controller Area Network) tabanlı SAE J1939 protokolünü destekler. SAE J1939, araç bileşenleri, dizel motor jeneratörleri ve kompresyon motorları arasında iletişim ve teşhis uygulamak için kullanılır ve ağır hizmet tipi kamyon endüstrisi ve yedek güç sistemleri için uygundur. MGate 5118 serisi ağ geçitleri, çoğu PLC uygulamasını desteklemek için Modbus RTU/ASCII/TCP, EtherNet/IP ve PROFINET protokollerini destekler. J1939 protokolünü destekleyen cihazlar, Modbus RTU/ASCII/TCP, EtherNet/IP ve PROFINET protokollerini kullanan PLC'ler ve SCADA sistemleri tarafından izlenebilir ve kontrol edilebilir.
- Key-in-free J1939 command auto detection Moxa protocol converter gateway
- Built-in J1939 traffic monitoring/diagnostics/live-list tools
- Supports J1939 to Modbus RTU/ASCII/TCP, EtherNet/IP, PROFINET protocol conversion
- Ready for hazardous locations: C1D2, ATEX, IECEx
- MicroSD card for configuration backup/duplication, and event log
- 2 kV CANbus and Modbus serial port isolation
- -40 to 75°C wide operating temperature models available
- Security features based on IEC 62443
ÜRÜN SİPARİŞ KODLARI :
|
1-port J1939 to Modbus/PROFINET/EtherNet/IP gateway, 0 to 60°C operating temperature |
|
|
1-port J1939 to Modbus/PROFINET/EtherNet/IP gateway, -40 to 75°C operating temperature |
| • Industrial Protocols | |
| Protocols | SAE J1939, Modbus RTU/ASCII/TCP, PROFINET, EtherNet/IP |
| Protocol Conversion | • J1939 to Modbus RTU/ASCII (Master/Slave) • J1939 to Modbus TCP (Client/Server) • J1939 to EtherNet/IP (Scanner/Adapter) • J1939 to PROFINET (I/O Device) |
| • Ethernet Interface | |
| Protocols | Modbus TCP (Client/Server), PROFINET (I/O device), EtherNet/IP (Scanner/Adapter) |
| Number of Ports | 2 (1 IP address, supports Ethernet cascading) |
| Speed | 10/100 Mbps, Auto MDI/MDIX |
| Connector | 8-pin RJ45 |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| • CAN-J1939 Serial Interface | |
| Protocols | SAE J1939 |
| Number of Ports | 1 |
| Connectors | 6-pin terminal block |
| Terminator | 120 Ω |
| Isolation | 2 kv (built-in) |
| Data Rate | 250 kbps and 500 kbps |
| • Modbus Serial Interface | |
| Protocols | Modbus RTU/ASCII (Master/Slave) |
| Number of Ports | 1 |
| Serial Standards | RS-232/422/485, software selectable |
| Connectors | DB9 male |
| Pull High/Low Resistor for RS-485 | 1 kΩ, 150 kΩ |
| Terminator for RS-485 | 120 Ω |
| Isolation | 2 kV (built-in) |
| • Modbus Serial Communication Parameters | |
| Data Bits | 8 |
| Stop Bits | 1, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, RTS Toggle |
| Baudrate | 50 bps to 921.6 kbps |
| • Modbus Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| • Software | |
| Configuration Options | Web console |
| Utility | Device Search Utility (DSU) for Windows 95, 98, ME, NT, 2000, Windows XP, Server 2003, Vista, Server 2008 (x86/x64), Windows Server 2008 R2, Windows 7/8/8.1/10 (x86/x64), Windows Server 2012 (x64), Windows 2012 R2 |
| Network Protocols | TCP/IP, UDP, HTTP, SMTP, NTP, DNS, DHCP Client, SNMP (v1, v2, v3), MIB-II, ARP, Telnet |
| Support | MXview, MXconfig, IEC 62443-4-2 |
| • Physical Characteristics | |
| Housing | Metal, IP30 |
| Weight | 589 g (1.30 lb) |
| Dimensions | 45.8 x 105 x 134 mm (1.8 x 4.13 x 5.28 in) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Vibration | IEC 60068-2-6, IEC 60068-2-64 |
| Shock | IEC 60068-2-27 |
| Drop | IEC 60068-2-32 |
| • Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Input Current | • 416 mA @ 12 VDC • 195 mA @ 24 VDC; • 110 mA @ 48 VDC |
| Power Connector | Terminal block |
| • Standards and Certifications | |
| Safety | EN 60950-1(LVD), UL 61010-2-201 |
| Hazardous Location | Class I Division 2, ATEX, IECEx (Note: Certification is underway. Please contact a Moxa slaes representative for details.) |
| EMC | EN 61000-6-2/6-4 |
| EMI | CISPR 22, FCC Part 15B Class B |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF: 10 A/m |
| • Reliability | |
| Alarm Functions | Relay, email, SNMP trap |
| Alert Tools | Built-in buzzer |
| Storage Card Slot | 1 microSD (SDHC) card slot; supports up to 32 GB |
| • MTBF (mean time between failures) | |
| Time | 727,873 hrs |
| Standard | Telcordia SR332 |
| • Warranty | |
| Warranty Period | 5 years |
