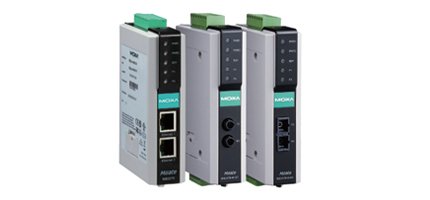

MGate MB3170-T
1-port advanced serial-to-Ethernet Modbus gateways
MGate MB3170 , 1-port Modbus ağ geçidi ürünleridir. Modbus TCP, ASCII ve RTU iletişim protokollerini dönüştürür. Ağ geçitleri hem seri-Ethernet iletişimini hem de seri (Master)-seri (Slave) iletişimi sağlar. Ayrıca, ağ geçitleri seri ve Ethernet master’larını seri Modbus cihazlarıyla eşzamanlı olarak desteklemektedir. MGate MB3170 ve MB3270 serisi ağ geçitlerine 32 TCP master/client tarafından erişilebilir veya 32 TCP slave/sunucu bağlanabilir. Seri portlar üzerinden yönlendirme, IP adresi, TCP port numarası veya ID mapping ile kontrol edilebilir.
- Kolay yapılandırma için Otomatik Aygıt Yönlendirme'yi destekler
- TCP portuveya IP adresi ile rota desteği
- 31 veya 62 seri slave cihazı destekler
- IP adresi, TCP portu veya ID mapping ile seri port yönlendirmesi
- Seri yönlendirici işlevi
- Gömülü Modbus trafik monitörü
- 10 / 100BaseTX (RJ45) veya 100BaseFX (single-mode veya multi-mode SC / ST konektör seçeneği)
ÜRÜN SİPARİŞ KODLARI :
|
1 Port RS-232/422/485 advanced Modbus TCP to Serial Communication Gateway |
|
|
1 Port Modbus TCP - Serial Comm. Gateway advanced, 3 in 1, -40~75℃ |
|
|
1 Port RS-232/422/485 advanced Modbus TCP to Serial Communication Gateway with 2 KV Isolation |
|
|
1 Port Modbus TCP - Serial Comm. Gateway advanced, 3 in 1, -40~75℃, with 2 KV Isolation |
|
|
1-port advanced Modbus gateway with 1 100BaseF(X) multi-mode fiber port (SC connectors) and 2 KV optical isolation, 0 to 60°C operating temperature |
|
|
1-port advanced Modbus gateway with 1 100BaseF(X) multi-mode fiber port (SC connectors) and 2 KV optical isolation, -40 to 75°C operating temperature |
|
|
1-port advanced Modbus gateway with 1 100BaseF(X) single-mode fiber port (SC connectors) and 2 KV optical isolation, 0 to 60°C operating temperature |
|
|
1-port advanced Modbus gateway with 1 100BaseF(X) single-mode fiber port (SC connectors) and 2 KV optical isolation, -40 to 75°C operating temperature |
|
|
1-port advanced Modbus gateway with 1 100BaseF(X) multi-mode fiber port (SC connectors), 0 to 60°C operating temperature |
|
|
1-port advanced Modbus gateway with 1 100BaseF(X) multi-mode fiber port (SC connectors), -40 to 75°C operating temperature |
|
|
1-port advanced Modbus gateway with 1 100BaseF(X) multi-mode fiber port (ST connectors), 0 to 60°C operating temperature |
|
|
1-port advanced Modbus gateway with 1 100BaseF(X) multi-mode fiber port (ST connectors), -40 to 75°C operating temperature |
|
|
1-port advanced Modbus gateway with 1 100BaseF(X) single-mode fiber port (SC connectors), 0 to 60°C operating temperature |
|
|
1-port advanced Modbus gateway with 1 100BaseF(X) single-mode fiber port (SC connectors), -40 to 75°C operating temperature |
|
|
1 Port Modbus TCP - Serial Comm. Gateway advanced, 3 in 1, IECEx certified. |
|
|
1 Port Modbus TCP - Serial Comm. Gateway advanced, 3 in 1, -40~75℃, IECEx certified. |
|
|
1 Port Modbus TCP - Serial Comm. Gateway advanced with 2 KV Isolation, 3 in 1 |
|
|
1 Port Modbus TCP - Serial Comm. Gateway advanced with 2 KV Isolation, 3 in 1, -40~75℃ |
| Çalışma Sıcaklığı | : | -40/+75C |
| Toplam Port Sayısı | : | 2 |
| RS-232/422/485 | : | 1 |
| Konnektör Tipi | : | DB9 Male |
| 10/100BaseT(X) | : | 1 |
| MODBUS | : | VAR |
| • Ethernet Interface | |
| Protocols | Modbus TCP |
| Number of Ports | 2 (1 IP, Ethernet cascade) |
| Speed | 10/100 Mbps, Auto MDI/MDIX |
| Connector | 8-pin RJ45 |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| • Optical Fiber Interface | |
| Table | |
| • Serial Interface | |
| Protocol | Modbus RTU/ASCII Master/Slave |
| Number of Ports | MB3170/3170I: 1 MB3270/3270I: 2 |
| Serial Standards | RS-232/422/485, software selectable |
| Connectors | MB3170/3170I: DB9 male for RS-232, terminal block for RS-422/485 MB3270/3270I: DB9 male x 2 |
| Magnetic Isolation Protection | 2 kV (for 'I” models) |
| ESD Protection | 15 kV for all signals |
| RS-485 Data Direction Control | ADDC® (automatic data direction control) |
| Pull High/Low Resistor for RS-485 | 1 kΩ, 150 kΩ |
| Terminator for RS-485 | 120 Ω |
| • Serial Communication Parameters | |
| Data Bits | 7, 8 |
| Stop Bits | 1, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, DTR/DSR, RTS Toggle (RS-232 only) |
| Baudrate | 50 bps to 921.6 kbps |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| • Software | |
| Configuration Options | Web Console, Telnet Console, Windows Utility |
| Utility | MGate Manager for Windows2000, Windows XP, Server 2003, Vista, Server 2008 (x86/x64), Windows Server 2008 R2, Windows 7/8/8.1 (x86/x64), Windows Server 2012 (x64), Windows 2012 R2 |
| Multi-master and Multi-drop | Master mode: 32 TCP slaves Slave mode: 32 TCP masters (request queue 32-deep for each master) |
| Support | Smart Routing, Serial Redirection, ProCOM, Priority Control, MXview, SNMP v1 (read only) |
| • Physical Characteristics | |
| Housing | Plastic, IP30 |
| Weight | MGate MB3170: 360 g (0.79 lb) MGate MB3270: 380 g (0.84 lb) |
| Dimensions | Without ears: 29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in) With ears extended: 29 x 89.2 x 124.5 mm (1.14 x 3.51 x 4.90 in) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Vibration | IEC 60068-2-6, IEC 60068-2-64 |
| Shock | IEC 60068-2-27 |
| Drop | IEC 60068-2-32 |
| • Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Input Current | MGate MB3170: 435 mA @ 12 VDC MGate MB3170I: 555 mA @ 12 VDC MGate MB3270: 435 mA @ 12 VDC MGate MB3270I: 510 mA @ 12 VDC MGate MB3170-M-SC: 510 mA @ 12 VDC MGate MB3170-M-ST: 510 mA @ 12 VDC MGate MB3170-S-SC: 555 mA @ 12 VDC MGate MB3170I- |
| Power Connector | Terminal block |
| Relay Output | 1 digital relay output to alarm (normal closed), with current carrying capacity 1 A @ 30 VDC |
| • Standards and Certifications | |
| Safety | UL 508, EN 60950-1 |
| Hazardous Location | Class 1 Division 2, ATEX, IECEx |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 |
| Marine | DNV |
| • MTBF (mean time between failures) | |
| Time | MGate MB3170: 1,349,710 hrs MGate MB3170-M-SC: 1,175,887 hrs MGate MB3170-M-ST: 1,175,887 hrs MGate MB3170-S-SC: 1,175,887 hrs MGate MB3170I-M-SC: 768,343 hrs MGate MB3170I-S-SC: 763,707 hrs MGate MB3270: 1,236,384 hrs |
| Standard | Telcordia SR332 |
| • Warranty | |
| Warranty Period | 5 years |
