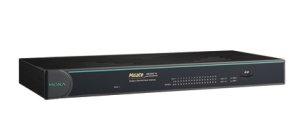

MGate MB3660-16-2AC
8 and 16-port redundant Modbus gateway
MGate MB3660 (MB3660-8 ve MB3660-16) serisi ağ geçitleri, Modbus TCP ve Modbus RTU/ASCII protokolleri arasında dönüüm olanağı sağlayan modbus ağ geçitleridir. En çok 256 TCP master/client aygıtı tarafından erişilebilir veya 128 TCP slave/server cihazına bağlanabilirler. MGate MB3660I versiyonu izolasyonlu modeli, güç trafo merkezi uygulamaları için uygun 2kV izolasyon koruması sağlar. MGate MB3660 serisi ağ geçitleri, ağ entegrasyonunu kolay, özelleştirilebilir ve neredeyse her Modbus ağı ile uyumlu kılan özellikler sunar. Büyük ölçekli Modbus dağıtımları için, MGate MB3660 ağ geçitleri çok sayıda Modbus nodunu aynı ağa etkin bir şekilde bağlayabilir. MB3660 serisi, 8 portlu modeller için 248 seri slave nodunu veya 16 portlu modeller için 496 seri slave nodunu fiziksel olarak yönetebilir. Her bir RS-232/422/485 seri portu, Modbus RTU veya Modbus ASCII çalışması için ve farklı baudratlar için ayrı ayrı konfigüre edilebilir ve her iki tip ağın bir Modbus gateway üzerinden Modbus TCP'ye entegre edilmesine izin verir.
- Supports Auto-Device Routing for easy configuration
- Supports route by TCP port or IP address for flexible deployment
- Innovative Command Learning eliminates the need to key-in
- SCADA Modbus commands (acts as an agent gateway)
- High performance through active and parallel polling of serial devices
- Supports serial (Master) to serial (Slave) communications
- 2 Ethernet ports with the same IP or dual IP addresses
- SD card for configuration backup Modbus Auto-Device Routing
- Access by up to 256 TCP master/client devices, or connect to 128 TCP slave/server devices
- Dual VDC or VAC power inputs with wide power input range
- 3-pin fault relay circuit for event alarms
- 2 kV isolation protection (for "-I” models)
ÜRÜN SİPARİŞ KODLARI :
|
Modbus gateway with dual LANs, dual AC power inputs, 8 RS-232/422/485 ports, 0 to 60°C operating temperature |
|
|
Modbus gateway with dual LANs, dual DC power inputs, 8 RS-232/422/485 ports, 0 to 60°C operating temperature |
|
|
Modbus gateway with dual LANs, dual AC power inputs, 8 RS-232/422/485 ports, 0 to 60°C operating temperature, 2 kV isolation |
|
|
Modbus gateway with dual LANs, dual AC power inputs, 16 RS-232/422/485 ports, 0 to 60°C operating temperature |
|
|
Modbus gateway with dual LANs, dual DC power inputs, 16 RS-232/422/485 ports, 0 to 60°C operating temperature |
| • Ethernet Interface | |
| Protocols | Modbus TCP Client/Server |
| Number of Ports | 2 (2 IP addresses) |
| Speed | 10/100 Mbps, Auto MDI/MDIX |
| Connector | RJ45 x 2 |
| • Serial Interface | |
| Protocols | Modbus RTU/ASCII Master/Slave |
| Number of Ports | MGate MB3660-8: 8 MGate MB3660I-8: 8 MGate MB3660-16: 16 MGate MB3660I-16: 16 |
| Serial Standards | RS-232/422/485, software selectable |
| Connectors | DB9 male, RJ45 |
| RS-485 Data Direction Control | ADDC® (automatic data direction control) |
| Isolation Protection | 2 kV (for '-I” model) |
| • Serial Communication Parameters | |
| Data Bits | 7, 8 |
| Stop Bits | 1, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, DTR/DSR, RTS Toggle (RS-232 only) |
| Baudrate | 50 bps to 921.6 Kbps |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| • Software | |
| Configuration Options | Web console, Serial console, Telnet console |
| Utility | Device Search Utility (DSU) for Windows 95, 98, ME, NT, 2000, Windows XP, Server 2003, Vista, Server 2008 (x86/x64), Windows Server 2008 R2, Windows 7/8/8.1/10 (x86/x64), Windows Server 2012 (x64), Windows 2012 R2 |
| Network Protocols | TCP/IP, UDP, HTTP, SMTP, NTP, DNS, DHCP Client, SNMPv1 (read only), ARP, Telnet, Radius |
| Multi-master and Multi-drop | Master mode: 128 TCP slaves/servers Slave mode: 256 TCP masters/clients |
| • Physical Characteristics | |
| Fault Relay Circuit | 3-pin circuit with current carrying capacity of 2 A @ 30 VDC |
| External Storage Drive | SD card for configuration backup |
| Housing | Metal, IP30 |
| Weight |
MGate MB3660-8-2AC: 2,731 g (6.02 lb) |
| Dimensions | Without ears: 440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in) With ears: 480 x 45 x 198 mm (18.90 x 1.77 x 7.80 in) |
| • Environmental Limits | |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Vibration | IEC 60068-2-6, IEC 60068-2-64 |
| Shock | IEC 60068-2-27 |
| Drop | IEC 60068-2-32 |
| • Power Requirements | |
| Input Voltage | For DC models: Dual 20 to 60 VDC (1.5 kV isolation) For AC models: Dual 100 to 240 VAC, 47 to 63 Hz |
| Input Current | MGate MB3660-8-2AC: 144 mA @ 110 VAC, 101 mA @ 220 VAC MGate MB3660-8-2DC: 312 mA @ 24 VDC, 156 mA @ 48 VDC MGate MB3660I-8-2AC: 244 mA @ 110 VAC, 159 mA @ 220 VAC MGate MB3660-8-J-2AC: 111 mA @ 110 VAC, 81 mA @ 220 VAC MGate MB3660-16-2AC: 178 mA @ 110 VAC, 120 mA @ 220 VAC MGate MB3660-16-2DC: 390 mA @ 24 VDC, 195 mA @ 48 VDC MGate MB3660-16-J-2AC: 133 mA @ 110 VAC, 92 mA @ 220 VAC MGate MB3660I-16-2AC: 351 mA @ 110 VAC, 221 mA @ 220 VAC |
| Power Connector | Terminal block (for DC models) |
| • Standards and Certifications | |
| Safety | UL 60950-1, EN 60950-1 (LVD) |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10V/m IEC 61000-4-8 PFMF |
| • MTBF (mean time between failures) | |
| Time | MGate MB3660-8-2AC: 716,647 hrs MGate MB3660-8-2DC: 706,783 hrs MGate MB3660I-8-2AC: 224,851 hrs MGate MB3660-8-J-2AC: 616,505 hrs MGate MB3660-16-2AC: 487,416 hrs MGate MB3660-16-2DC: 482,835 hrs MGate MB3660I-16-2AC: 114,595 hrs MGate MB3660-16-J-2AC: 437,337 hrs |
| Standard | Telcordia SR332 |
| • Warranty | |
| Warranty Period | 5 years |
